P0629

P0629 - Fuel Pump ''A'' Control Circuit High.

DTC Description
P0629 P0629 - Fuel pump 'A' control circuit.: Short circuit to V Batt.

Possible Causes:
1. Connectors C0331, C0575.
2. Open circuit C0331/10 (BP) - C0575/9 (BP).
3. Short circuit C0331/10 (BP) - Ground.
4. Short circuit C0330/10 (BP) - Battery.
5. MS43 ECM.

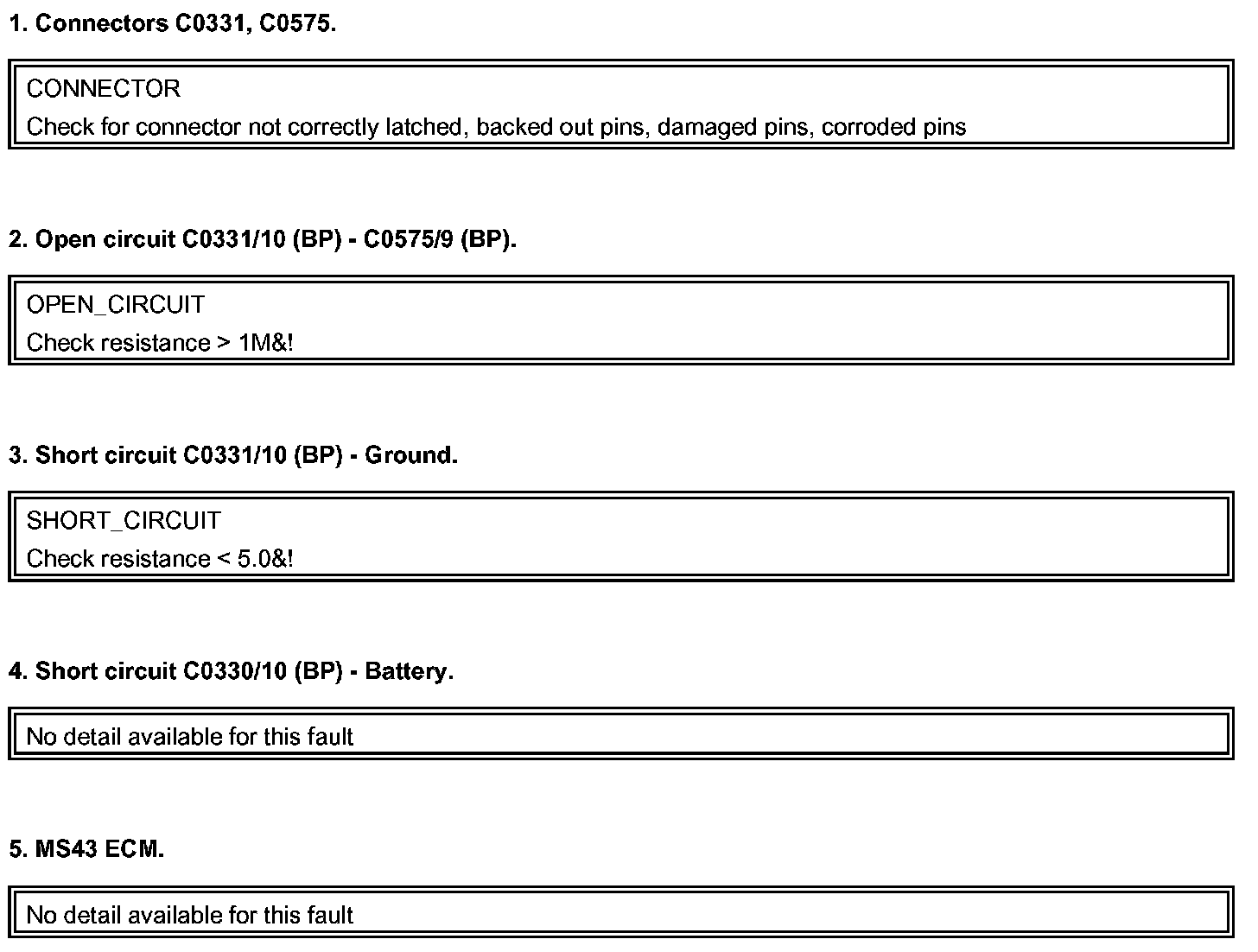

Step 1-5:
