P0647
P0647
P0647 - A/C Clutch Relay Control Circuit High.
DTC
Description
P0647
P0647 - A/C clutch relay control circuit.: Short circuit to V Batt.

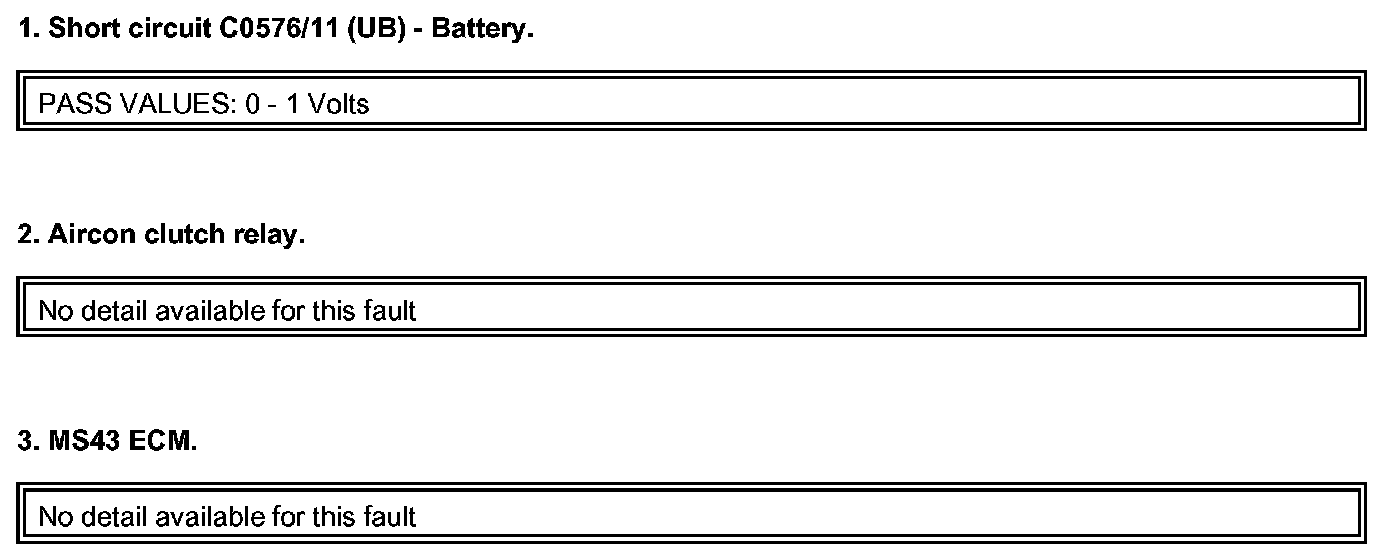

Possible Causes:
1.
Short circuit C0576/11 (UB) - Battery.
2.
Aircon clutch relay.
3.
MS43 ECM.
Step 1-3:
