P2127

P2127 - Throttle / Pedal Sensor / Switch ''E'' Circuit Low Input.

DTC Description
P2127 P2127 - Throttle / pedal sensor / switch 'E' circuit low input.: Short circuit to ground.

Possible Causes:
1. Connectors C0606, C0175.
2. Open circuit C0606/19 (NP) - C0175/1 (NP).
3. Open circuit C0606/43 (NB) - C0175/3 (NB).
4. Short circuit C0606/43 (NB) - Ground.
5. Pedal demand sensor.
6. MS43 ECM.

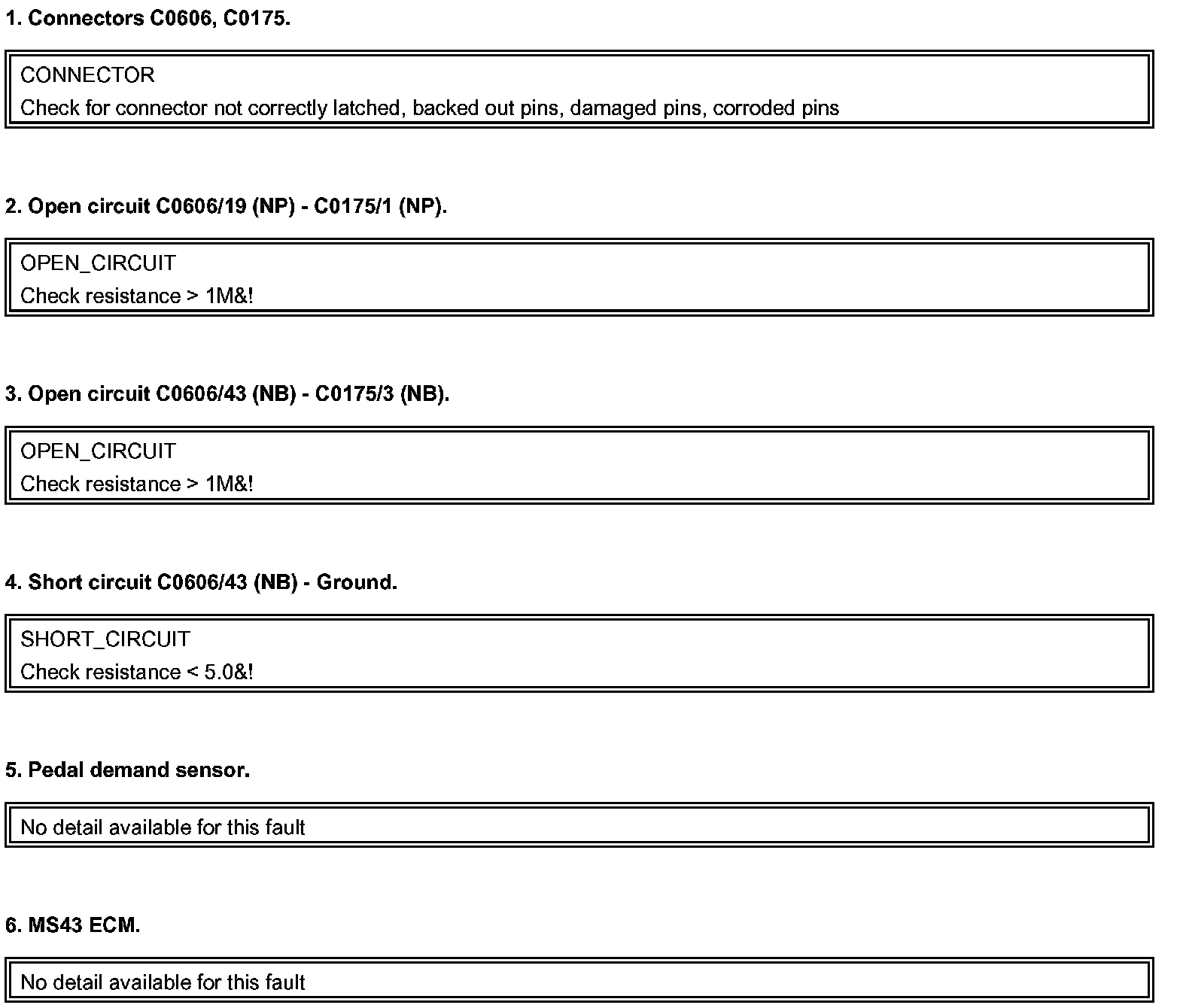

Step 1-6:
