P2128

P2128 - Throttle / Pedal Sensor / Switch ''E'' Circuit High Input.

DTC Description
P2128 P2128 - Throttle / pedal sensor / switch 'E' circuit high input.: Short circuit to V Batt.

Possible Causes:
1. Circuit Integrity C0331/7 (RU) - C0787/4 (RU).
2. Circuit Integrity C0331/8 (YRB) - C0787/3 (YRB).
3. Circuit Integrity C0331/9 (RN) - C0787/2 (RN).
4. Circuit Integrity C0331/2 (URB) - C0787/5 (URB).
5. Circuit Integrity C0331/3 (RY) - C0787/6 (RY).
6. Circuit Integrity C0331/4 (NRB) - C0787/1 (NRB).
7. Throttle body.
8. MS43 ECM.

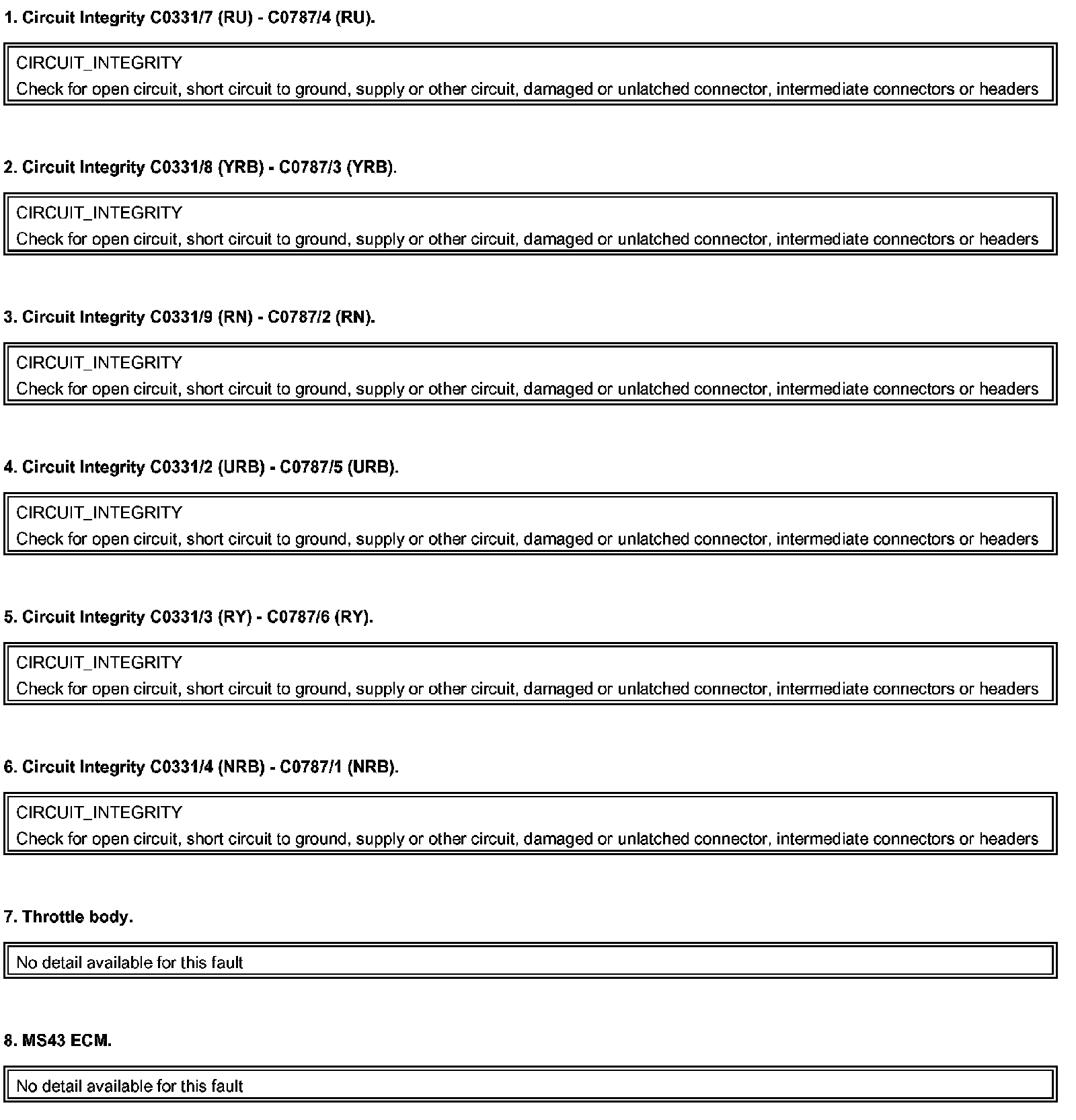

Step 1-8:
