P2185

P2185 - Engine Coolant Temperature Sensor 2 Circuit High

DTC Description
P2185 P2185 - Engine coolant temperature sensor 2 circuit high: Short circuit to V Batt.

Possible Causes:
1. Connectors C0606, C0176.
2. Open circuit C0606/24 (KB) - C0176/1 (KB).
3. Open circuit C0606/25 (KG) - C0176/2 (KG).
4. Short circuit C0606/24 (KB) - Battery.
5. Coolant temperature sensor.
6. MS43 ECM.

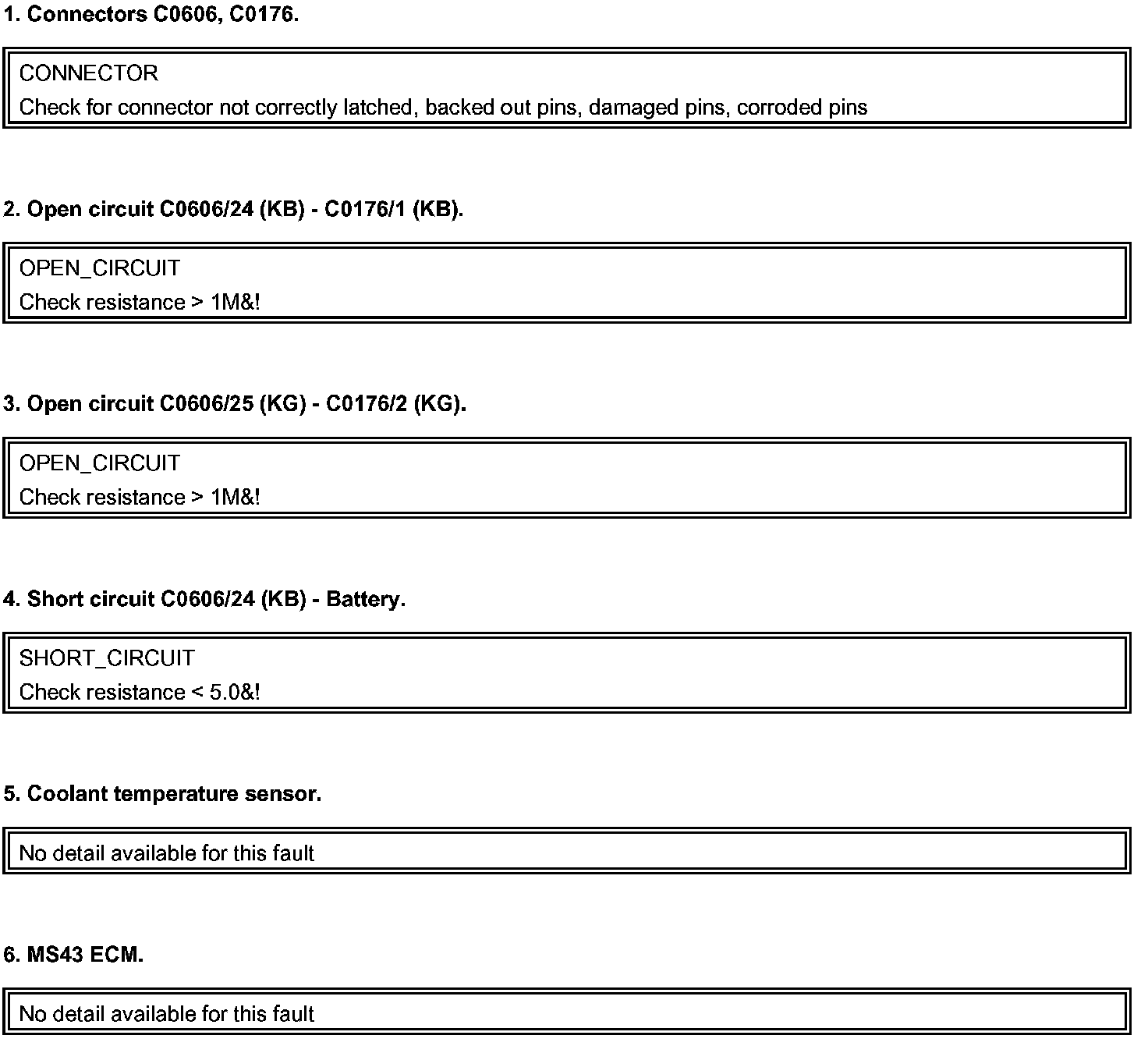

Step 1-6:
