A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P2197
P2197
P2197 - O2 Sensor Signal Stuck Lean Bank 2 Sensor 1.
DTC
Description
P2197
P2197 - O2 sensor signal stuck lean bank 2 sensor 1.: Short circuit to V Batt.
Possible Causes:

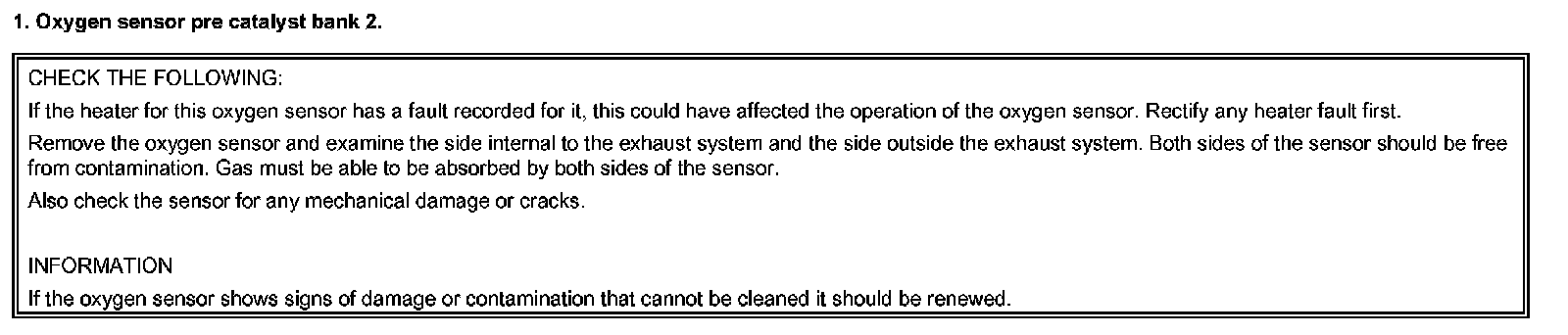

1.
Oxygen sensor pre catalyst bank 2.
Step 1:
