86.54.14 Sensor - Parking Aid - Rear

86.54.14 Sensor - Parking Aid - Rear - From 04MY

Remove
1. Remove rear bumper assembly.







2. Disconnect multiplug from parking aid sensor.

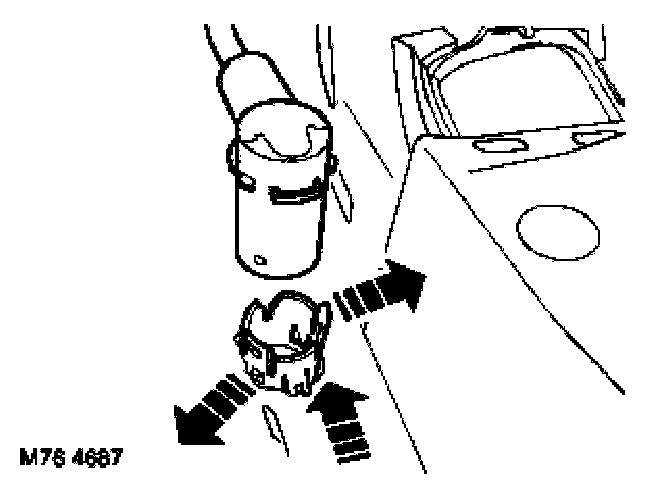

3. Release 2 retaining clips and remove parking aid sensor from finisher.
4. Remove parking aid sensor finisher from bumper valance.

Refit
1. Fit parking aid sensor finisher to bumper valance.
2. Fit parking aid sensor to finisher and connect multiplug.
3. Fit rear bumper assembly.
