Radio/Stereo: Service and Repair

86.50.03 Radio CD - From 04MY

Remove
1. Remove centre console.







2. Remove 4 screws securing the Radio/CD module to fascia.

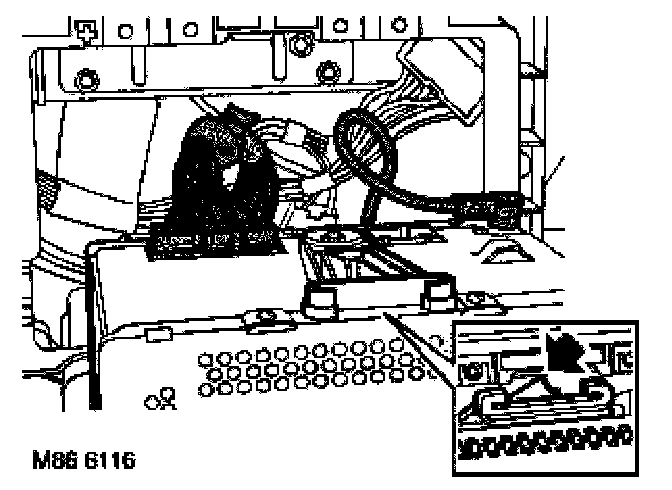

3. Release Radio/CD module from fascia, disconnect multiplug and antenna.
4. Remove the Radio/CD module. Refit

Refit







1. Position Radio/CD module to fascia, connect multiplug and antenna.

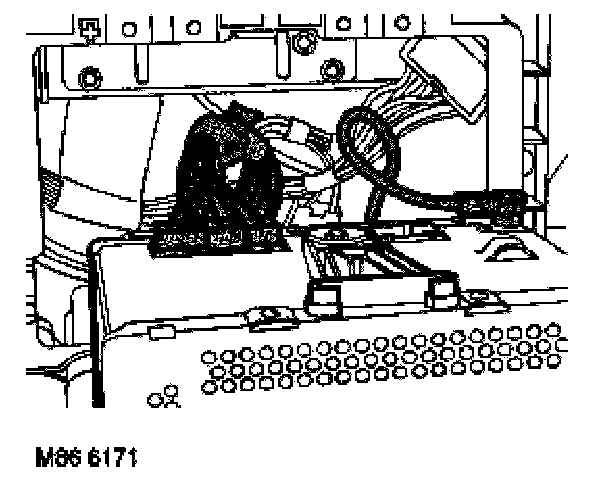

2. Align rear of Radio/CD module to guide rail and fit to fascia.
3. Secure Radio/CD module with screws.
4. Fit centre console.
