Identification Number Locations

Identification Number Locations

Engine number

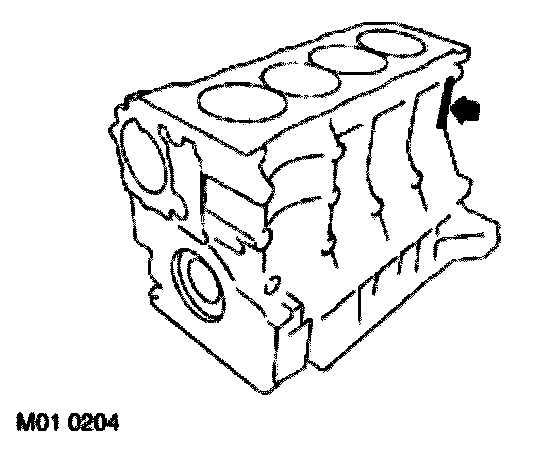

K1.8 engine serial number is stamped on the front face of the cylinder block adjacent to the gearbox.







K1.8 engines

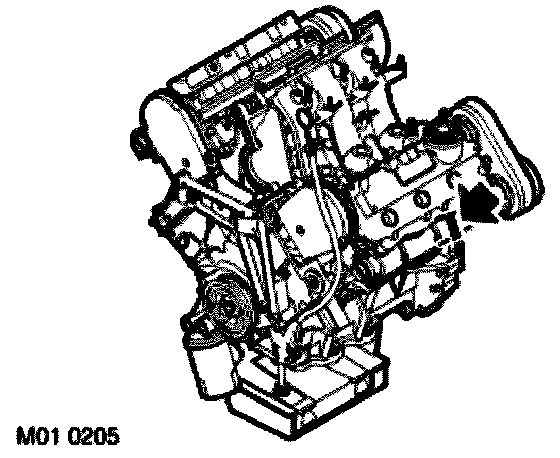

KV6 engine serial number is stamped on the rear LH side of the LH cylinder block.







KV6 engines

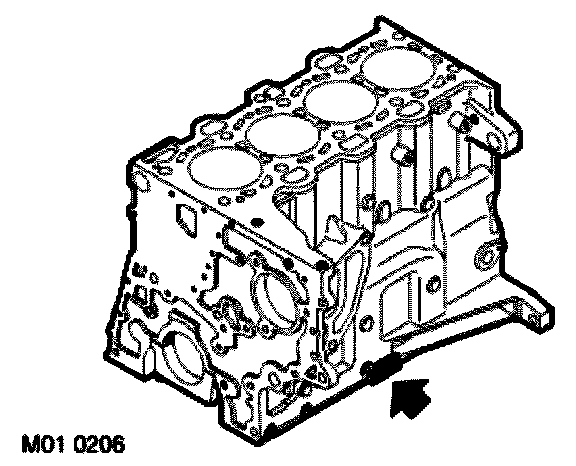

Td4 engine serial number is stamped on the bottom LH side of the cylinder block.







Td4 engines

Manual gearbox number

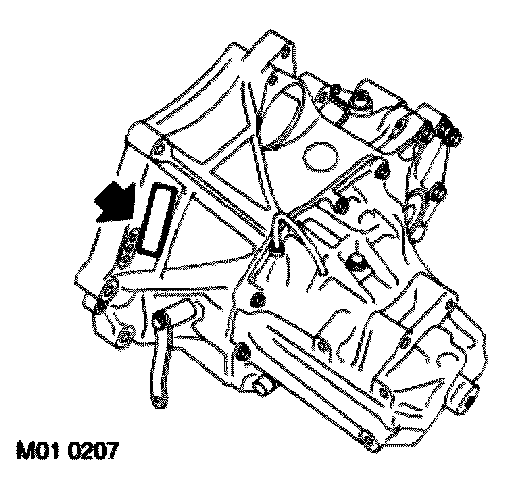

PG1 gearbox serial number is provided on a bar code label attached to the front face of the clutch housing.






PG1 gearbox

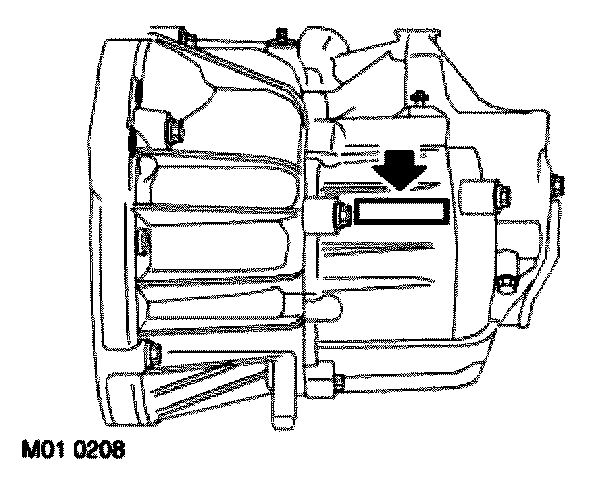

Getrag gearbox serial number is provided on an adhesive bar code label attached to the gearbox casting.







Getrag gearbox

Automatic gearbox number

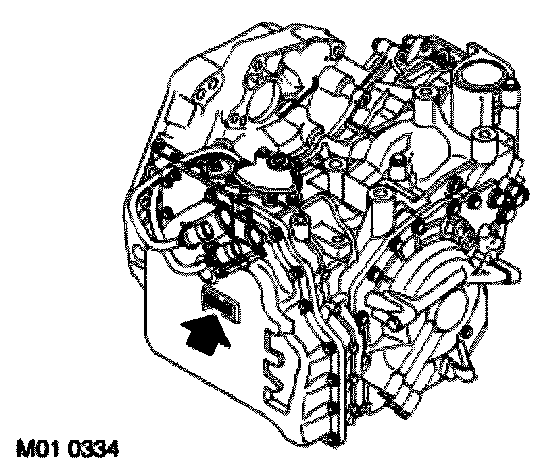

The JATCO automatic gearbox serial number is stamped on the upper RH side of the gearbox casing.







IRD unit

The IRD unit serial number is provided as a bar code on an adhesive label applied to the IRD casing and is also stamped on to the IRD cover.
