76.22.74 Bumper Valance - Rear

76.22.74 Bumper Valance - Rear - From 04MY

Remove
1. Remove rear mud flaps.
2. Remove both rear fog lamps.
3. Remove rear wheel arch extensions.

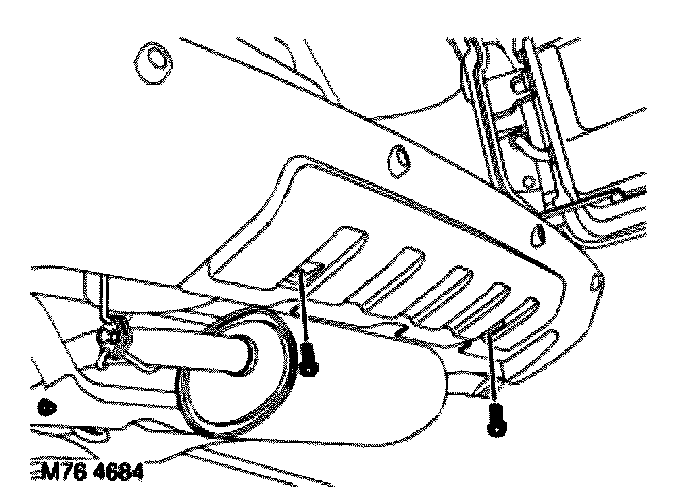

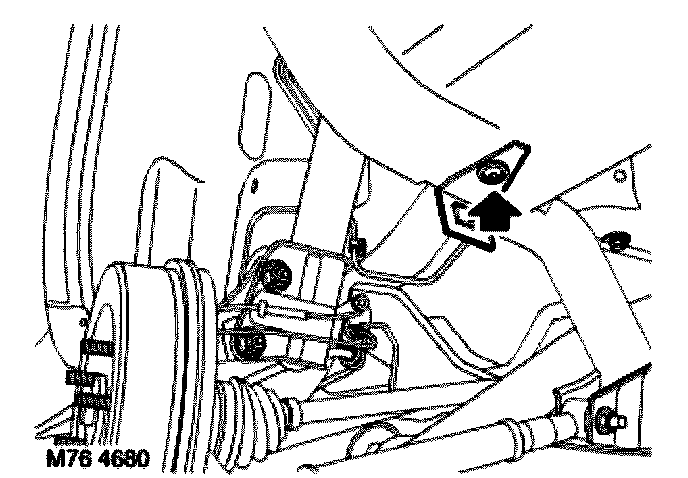

4. Remove 2 screws and remove both mud flap retaining brackets.

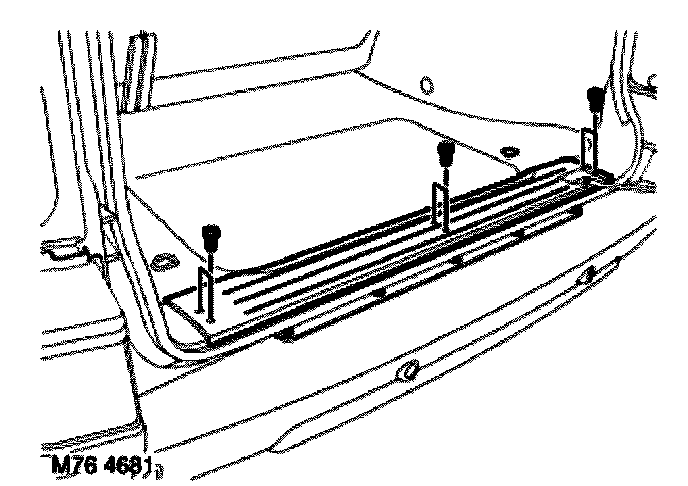

5. Remove 6 Torx screws securing luggage compartment carpet retainer to body.
6. Remove luggage compartment carpet retainer.





7. Release tailgate aperture seal to access bumper valance to body retaining scrivets.

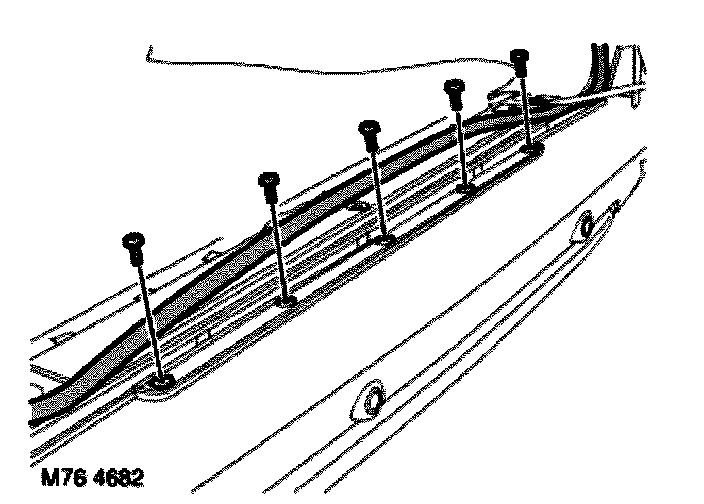

8. Remove 5 scrivets securing bumper valance to body.





9. Remove 4 screws securing bumper valance to body.

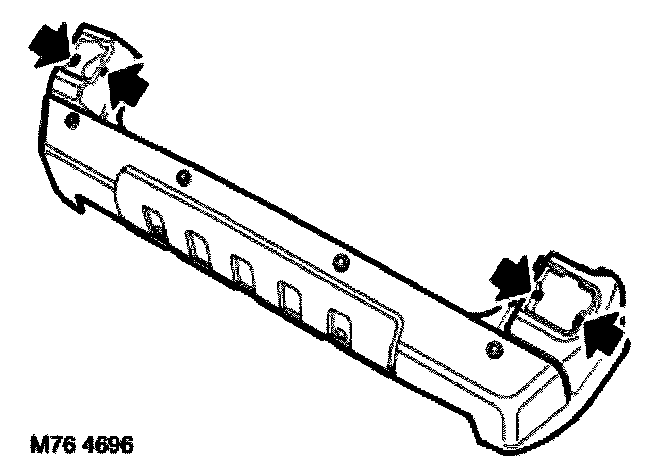

10. Remove 2 Torx bolts securing bumper valance to bumper armature.





11. With assistance, release bumper valance and parking aid sensor harness from body.

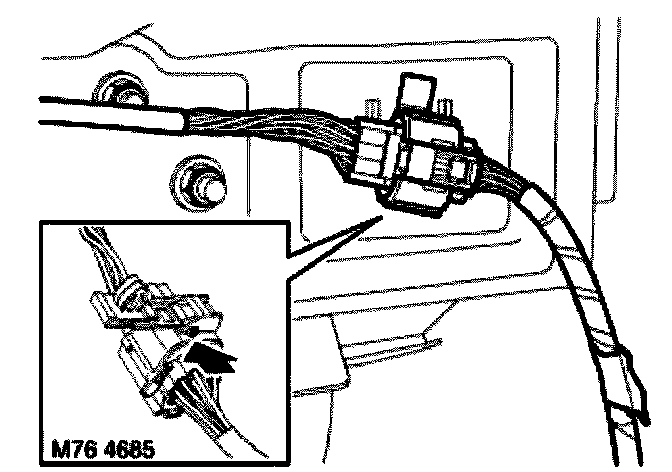

12. Remove parking aid sensor harness retaining clip and disconnect multiplug.
13. Remove bumper valance.

NOTE: Do not carry out further dismantling if component is removed for access only.

14. Remove both rear tail lamps.





15. Disconnect multiplugs from 4 parking aid sensors and release harness from 9 retaining clips.
16. Remove parking aid harness from bumper valance.

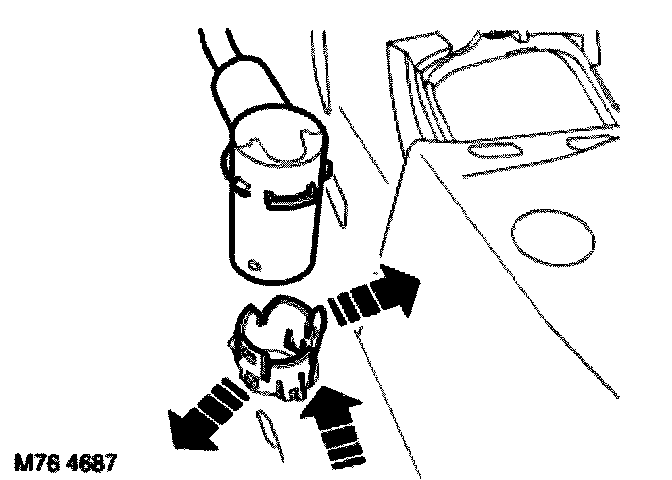

17. Release 2 retaining clips and remove parking aid sensor from finisher.
18. Remove parking aid sensor finisher from bumper valance.
19. Repeat above procedure for remaining 3 parking aid sensors.





20. Remove tail lamp speed nuts from bumper valance.

Refit
1. Fit tail lamp speed nuts to bumper valance.
2. Fit and secure parking aid finishers and sensors to bumper valance.
3. Fit and secure parking aid harness to sensors and bumpers valance.
4. Fit both rear tail lamps.
5. With assistance, position bumper valance to body.
6. Connect parking aid harness multiplug, fit retaining clip and secure to body.
7. Align bumper valance to body and secure with retaining screws and scrivets.
8. Fit Torx screws securing bumper valance to bumper armature and tighten to 5 Nm (3.7 ft. lbs.).
9. Fit tailgate aperture seal to body.
10. Fit luggage compartment carpet retainer and secure with Torx screws.
11. Fit both mud flap retaining brackets and secure with screws.
12. Fit rear wheel arch extensions.
13. Fit both rear fog lamps.
14. Fit rear mud flaps.
