76.13.13 Trim Casing - Rear Quarter - Upper - 3 Door

76.13.13 Trim Casing - Rear Quarter - Upper - 3 Door

Remove
1. Remove rear quarter lower casing.
2. Remove body rear side casing.





3. Remove screw and release rear vent catch.
4. Remove seat belt access cover from upper casing.
5. Release 4 clips securing upper casing to body and remove casing.

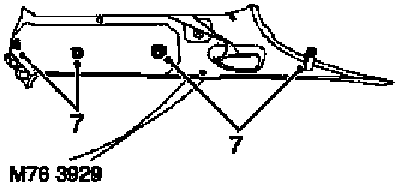

6. Remove 4 retaining clips from trim casing.

Refit
1. Fit retaining clips to casing.
2. Position trim casing, align seat belt and secure casing retaining clips.
3. Fit seat belt access cover.
4. Position rear vent sealing rubber to trim casing.
5. Position rear vent catch and tighten screw.
6. Fit body rear side trim casing.
7. Fit rear quarter lower casing.
