76.13.13 Trim Casing - Rear Quarter - Upper - 5 Door

76.13.13 Trim Casing - Rear Quarter - Upper - 5 Door

Remove

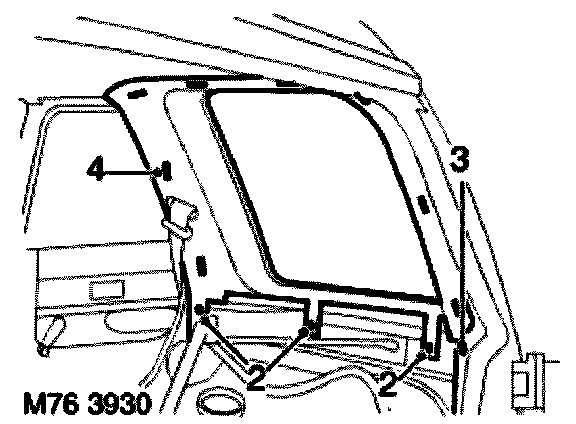

1. Remove rear quarter lower casing.





2. Remove 3 screws securing upper casing to body.
3. Remove retainer from tail door seal.
4. Release trim casing from 8 retaining clips.





5. Remove upper casing from loadspace.
6. Remove 8 retaining clips from casing.

Refit
1. Fit retaining clips to casing.
2. Position casing in loadspace, locate and secure retaining clips.
3. Fit retainer to tail door seal.
4. Fit screws securing bottom of casing.
5. Fit rear quarter lower casing.
