76.46.09 Cup Holder - Fascia

76.46.09 Cup Holder - Fascia - From 04MY

Remove

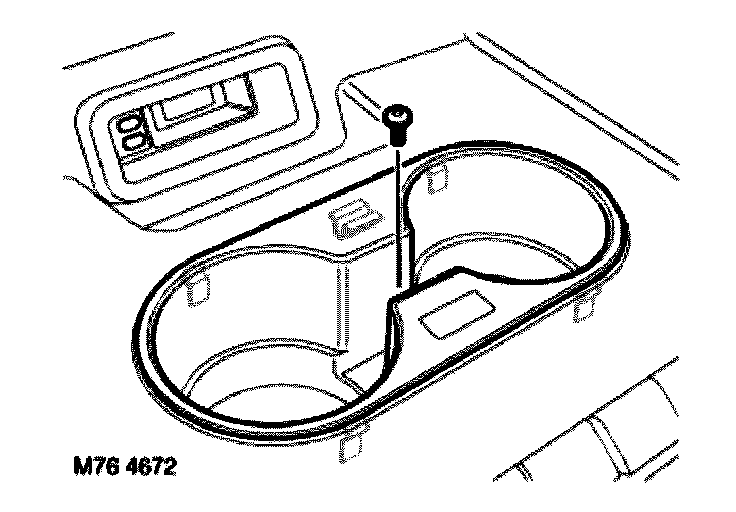

1. Remove screw securing fascia cup holder, release 5 clips and remove cup holder.

Refit
1. Fit cup holder to fascia and secure with screw.
