ECU - Cruise Control - KV6

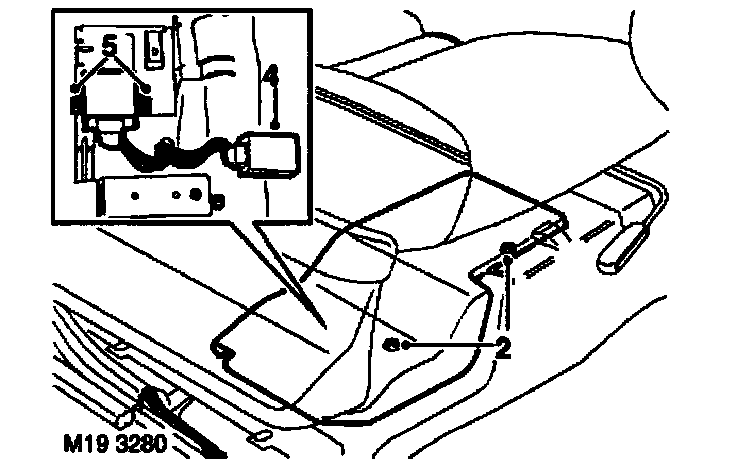

19.75.49 ECU - Cruise Control - KV6

Remove
1. Slide RH front seat fully rearwards.







2. Remove 2 screws securing ECU cover.
3. Remove cover.
4. Release interface ECU from bracket and move aside.
5. Remove 2 screws securing cruise control ECU.
6. Disconnect multiplug from ECU and remove ECU.

Refit
1. Connect multiplug to ECU.
2. Position ECU and tighten screws.
3. Secure interface ECU to bracket.
4. Fit ECU cover and secure with screws.
5. Position seat to mid position.
