Cigarette Lighter: Service and Repair

Cigar Lighter - Front

Service Repair No - 86.65.60

Remove
1. Remove front console.
2. Remove cigar lighter element.

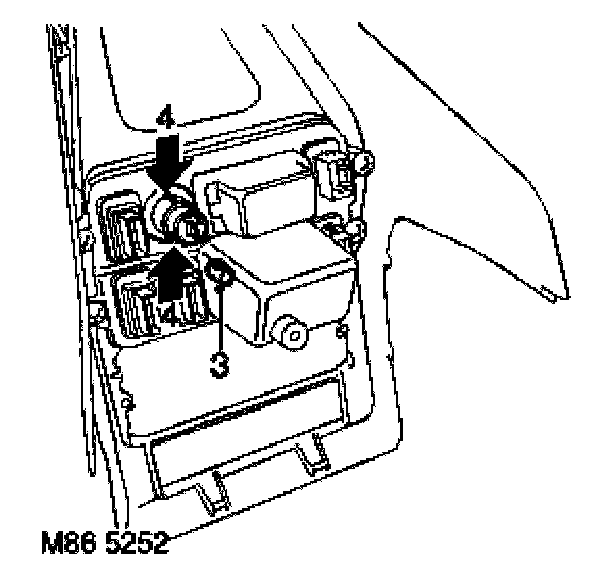

3. Remove bulb holder from lighter.
4. Release cigar lighter body from console and remove.

Refit
1. Fit and secure cigar lighter body to console.
2. Fit bulb holder to lighter.
3. Fit lighter element.
4. Fit front console.
