Clock: Service and Repair

Clock

Service Repair No - 88.15.07

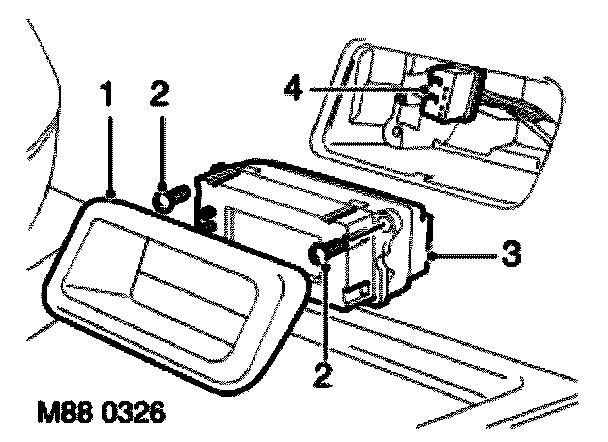

Remove





1. Remove clock finisher from fascia.
2. Remove 2 screws securing clock to fascia.
3. Release clock to gain access to multiplug.
4. Disconnect multiplug and remove clock.

Refit
1. Position clock to fascia and connect multiplug.
2. Fit and tighten screws securing clock to fascia.
3. Fit clock finisher to fascia.
