Instrument Panel

Instrument Panel - From 04MY

Service Repair No - 88.20.01

If the instrument panel is to be replaced then T4 must be connected and correct procedures adhered to, prior to battery disconnection.

Remove
1. Remove instrument cowl.

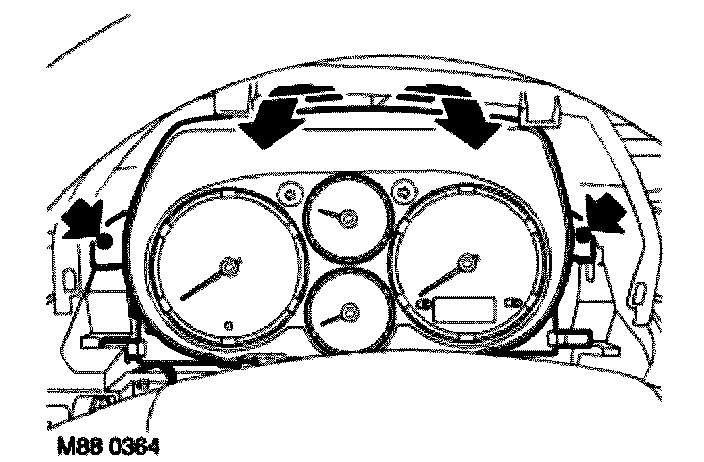

2. Remove 2 screws securing instrument pack to fascia, release pack from lower mounting lugs and move aside.

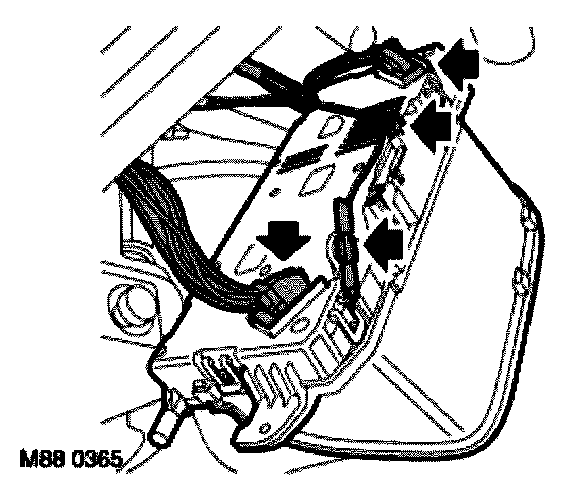

3. Disconnect 3 multiplugs from instrument pack.
4. Release clip, securing aerial receiver wire from underside of instrument pack retaining bracket.
5. Remove instrument pack.

Refit
1. Position instrument pack and connect multiplugs.
2. Position and secure aerial wire to retaining bracket.
3. Fit instrument pack to fascia and secure with screws.
4. Fit instrument cowl.
5. Using T4, download stored information to a new instrument panel.
