License Plate Lamp: Service and Repair

Lamp Assembly - Number Plate

Service Repair No - 86.40.86

Remove

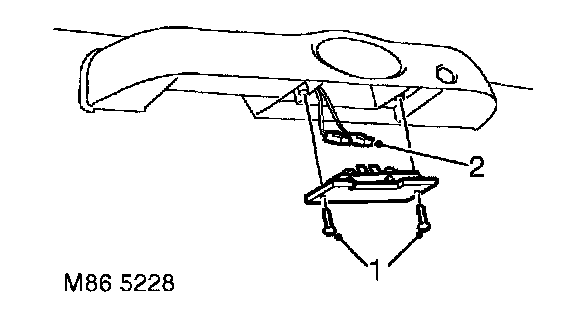

1. Remove 2 screws securing lamp to tail door handle.
2. Disconnect 2 Lucars from number plate lamp.

Refit
1. Position number plate lamp and connect Lucars.
2. Fit number plate lamp and secure with screws.
