Adjustable Mounting - Seat Belt - 'B' Pillar

Adjustable Mounting - Seat Belt - 'B' Pillar

Service Repair No - 76.73.26

Remove

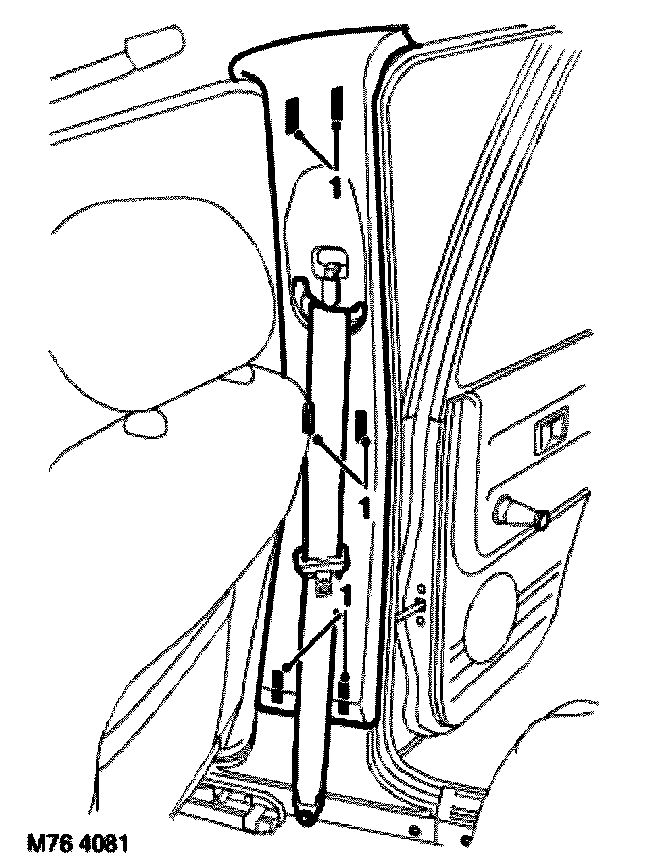

1. Release 'B/C' post upper finisher from 6 clips and position aside.







2. Remove nut from seat belt upper mounting and remove belt bracket.
3. Remove 2 Torx bolts from adjustable mounting and remove mounting.

Refit
1. Position mounting and tighten Torx bolts to 26 Nm (19 lbf.ft).
2. Fit upper belt bracket and tighten nut to 31 Nm (23 lbf.ft).
3. Position 'B/C' post upper finisher and secure with clips.
