Stalk - Rear Seat Belt - Centre

Stalk - Rear Seat Belt - Centre

Service Repair No - 76.73.98

WARNING:
- It is imperative that before any work is undertaken on the SRS system the appropriate information is read thoroughly.
- When removing, testing or installing a seatbelt pre-tensioner, do not lean directly over it or block the end of the piston tube.
- Always remove the key from the starter switch, disconnect the vehicle battery and wait 10 minutes before commencing work on the SRS system.

1. Remove RH rear seat.







2. Remove 2 screws and remove seat belt reel cover.







3. Remove nut and release seat belt reel.

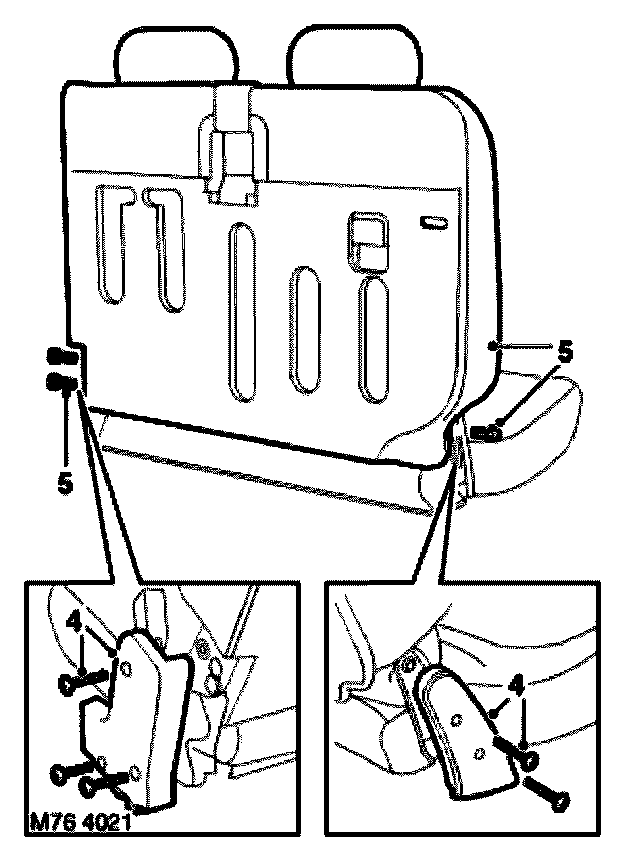

4. Remove 5 screws and remove both end covers.
5. Remove 3 Torx bolts and remove squab from cushion.







6. Release rear of cushion cover from frame.

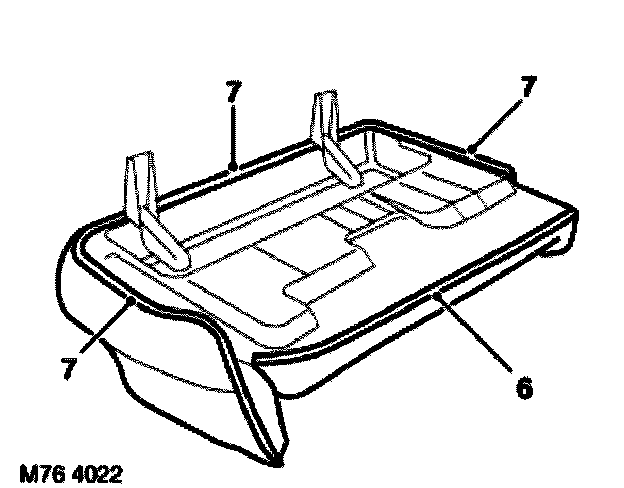

7. Release sides and front of cushion cover from frame.







8. Release cover and pad from frame.
9. Remove Torx bolt from seat belt buckle and remove buckle.

Refit
1. Position seat belt and buckle to frame and tighten to 32 Nm (24 lbf.ft).
2. Fit cover and pad to frame.
3. Fit front and sides of cushion cover to frame.
4. Fit rear of cushion cover to frame.
5. Fit cushion to squab and tighten Torx bolts.
6. Fit end covers and tighten screws.
7. Position seat belt reel in seat squab and tighten nut to 32 Nm (24 lbf.ft).
8. Fit seat belt reel cover and tighten screws.
9. Fit rear seat.
