Windshield Washer Reservoir: Service and Repair

Reservoir - Washer

Service Repair No - 84.10.01

Remove
1. Remove front bumper.
2. Position container to collect fluid loss.





3. Remove 2 nuts securing reservoir filler neck and remove filler neck.

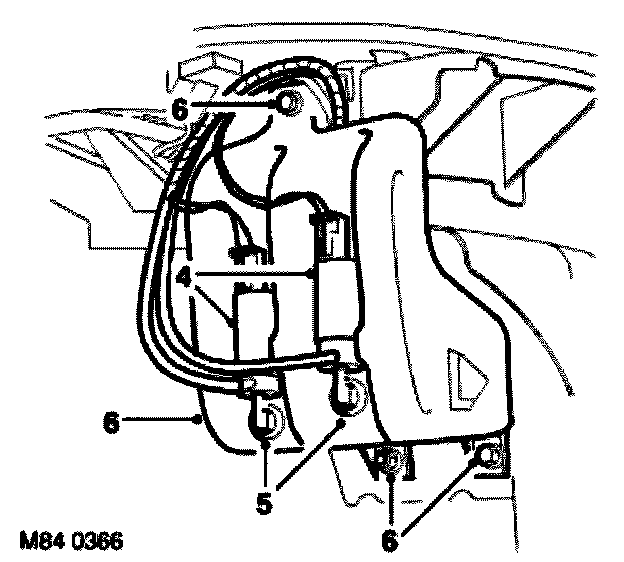

4. Release both washer pumps from reservoir.
5. Remove and discard pump sealing grommets.
6. Remove 3 bolts securing washer reservoir and remove.

Refit
1. Fit reservoir and secure with bolts.
2. Fit new pump sealing grommets to reservoir.
3. Fit pumps to reservoir.
4. Fit filler neck and secure with nuts.
5. Fit front bumper.
