Windshield Washer Spray Nozzle: Service and Repair

Jet - Washer - Each

Service Repair No - 84.10.08

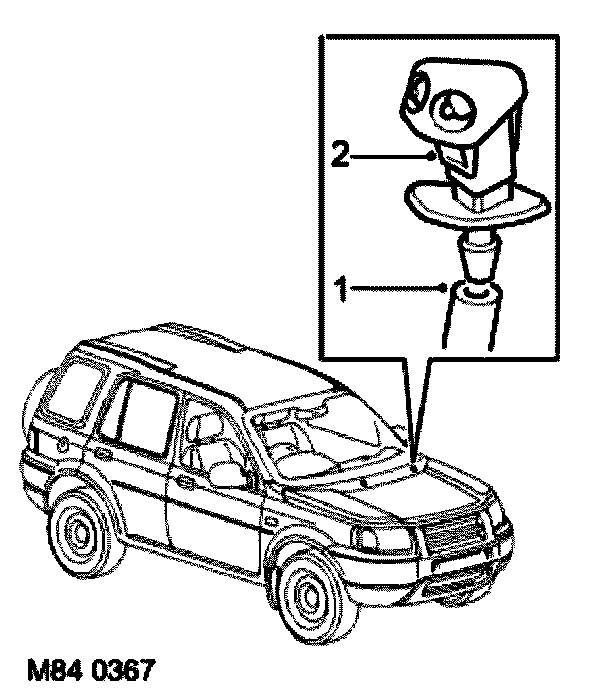

Remove





1. Disconnect tube from washer jet.
2. Depress plastic lugs and remove washer jet from bonnet.

Refit
1. Fit washer jet to bonnet and connect tube.
2. Adjust jet so the inside spray is to centre of the screen, and the outer spray is to the top of the screen.
