Body - Hood Difficult to Close/Vibrates
No: LA501-004Issue: 1
Date: 18 Mar 2005
SECTION: LA 501
Hood Adjustment and Alignment
AFFECTED VEHICLE RANGE:
Land Rover LR3 (LA) VIN: ALL
CONDITION SUMMARY:
HOOD VIBRATION OR CLOSING DIFFICULTIES
A customer may report a concern relating to:
^ Hood movement while driving, even though the hood is correctly latched.
^ Hood difficult to latch correctly or difficult to close.
^ Message Center displaying the message "Hood Open", even though the hood is correctly latched.
For vehicles up to VIN 5A301030, the hood buffers do not provide sufficient contact between the hood and the slam panel. The lack of tension can lead to hood movement even if the hood adjustment gaps are acceptable.
After VIN 5A301030 hood adjustment problems can result in the following symptoms:
^ Movement of the hood while driving
^ Failure to latch properly or being difficult to close
^ A "Hood Open" warning message being displayed
Action:
Should a customer express concern regarding the above, refer to the Repair Procedure detailed in this bulletin which provides specifications relating to adjustment gaps.
PARTS:
CJM5000010.......Hood buffer Qty 2
TOOLS:
Locally Sourced
Plastic vernier scale (metric measure is best) Available from www.rpelectronics.com

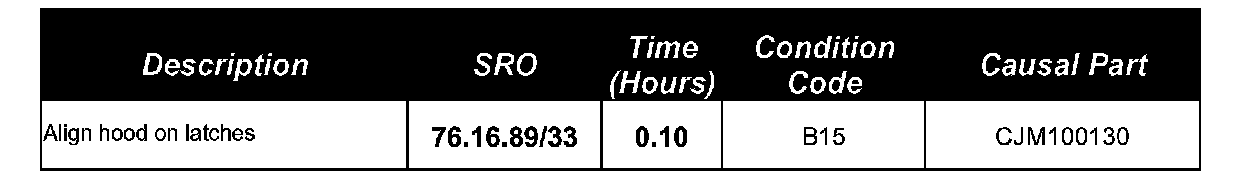

WARRANTY:
DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.
Normal warranty policy and procedures apply.
Material allowance is included in labor operation.
REPAIR PROCEDURE
DETERMINE INITIAL HOOD ALIGNMENT AND ADJUST BUFFERS AS NEEDED
NOTE:

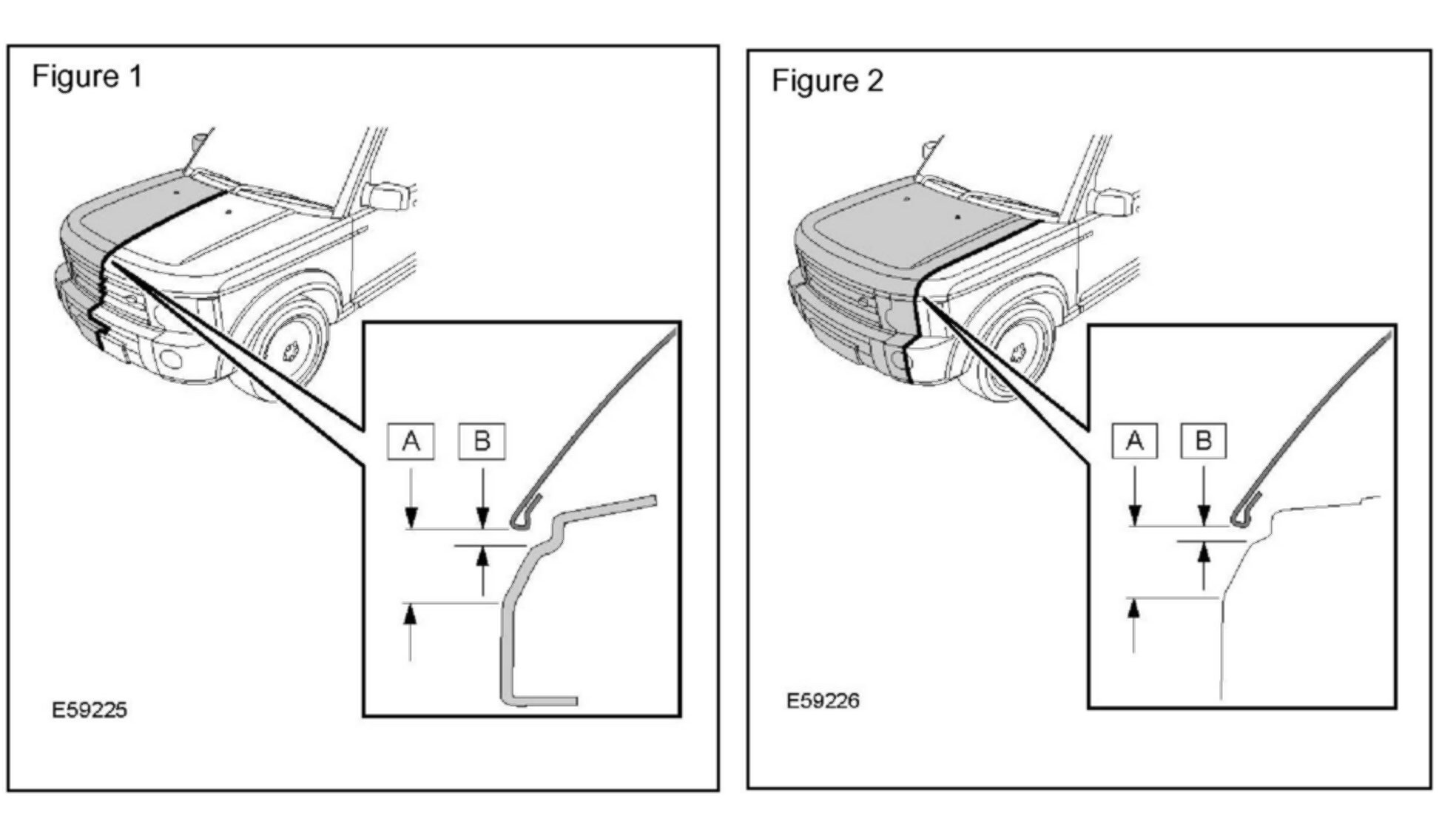

The following gap definitions are used:
^ Gap A is the nominal setting for a closed hood condition, 22 mm +/- 1.4 mm (0.315 in +/- 0.055 in)
^ Gap B (over-slam gap) is the minimum the gap should be reduced to when the hood is being closed, 8 mm +/- 1.4 mm (0.315 in +/- 0.055 in).
^ Gaps are measured at the centerline of the hood and above each headlamp.
NOTE:
During closure, the hood rubber buffers compress to aid latching. If the rubber buffers are incorrectly adjusted, the over-slam gap may be reduced and could result in the hood contacting the grill.
1. Check for correct gap conditions of 22 mm /- 1.4 mm at the center-line of the hood and at the head lamps.
2. If the correct gap measurement is not obtained adjustment of the hood latches, hood rubber buffers or hinges as outlined in the following procedural sections is required to obtain the correct gap conditions.
NOTE:
Vehicles prior to VIN 5A301030 require the hood buffers to be replaced with new buffers (CJM50001) and then check the hood adjustment. Vehicles after this VIN will only require the hood adjustment to be checked/reset.
3. If the vehicle is before VIN 5A301030, install the correct style buffers (CJM50001).
4. Verify that the hood Gaps A between the hood and grill/head lamps are 22 mm +/- 1.4 mm.
5. If the correct gap condition is measured, verify that the rubber buffers are in contact with the slam panel. (Figure 3)
NOTE:
Proper hood buffer installation is critical to the proper securing of the hood assembly.
^ If the rubber buffers have insufficient contact, hood movement could occur while driving.
^ If the rubber buffers are protruding too far, difficulty in latching the hood may occur.
6. Determine if the hood rubber buffers are over-extended.
7. Adjust buffers as required to obtain the correct contact.
ADJUST HOOD LATCHES
NOTE:
The hood switch is integrated into the right-hand hood latch. Minor adjustments to the right-hand hood latch can rectify "Hood Open" warning messages displayed on the message center.
8. If necessary, adjust the hood latches as follows:
^ Loosen the two hood latch Torx bolts.
(Figure 4)
^ Reposition the latch.
^ Lower the hood and check for alignment.
^ Open the hood and tighten the Torx bolts to 10 Nm (7 lb.ft).
^ Check for the correct operation of the hood safety catch.
9. Repeat step 8 as required to obtain the required hood close gap.
10. Verify that the hood seal is intact and is contacting the hood slam-panel.
NOTE:
Poor sealing at the hood seal to slam-panel will allow air to flow under the hood, causing hood movement. The design gap between the seal carrier and the hood inner edge is 14 mm (0.551 in).
11. Verify the correct closed gap to compress the hood seal to l4mm gap as follows:
^ Create a 20 mm ball of body caulk, putty or other suitably compliant material.
^ Position the 20 mm ball on the centerline of the hood in front of the hood seal as indicated by the "14 mm" measurement arrows. (Figure 5)
^ Gently close and latch the hood, then re-open.
^ Verify that in the closed condition the body caulk has been compressed to the 14 mm specified height.
^ Adjust as required and retest.
^ Remove all measurement material.
