BRAKE PADS, DISCS AND CALIPERS

Check





1. Remove front and rear brake pads.
2. Check front and rear brake pads for wear, ensure all pads are wearing evenly.

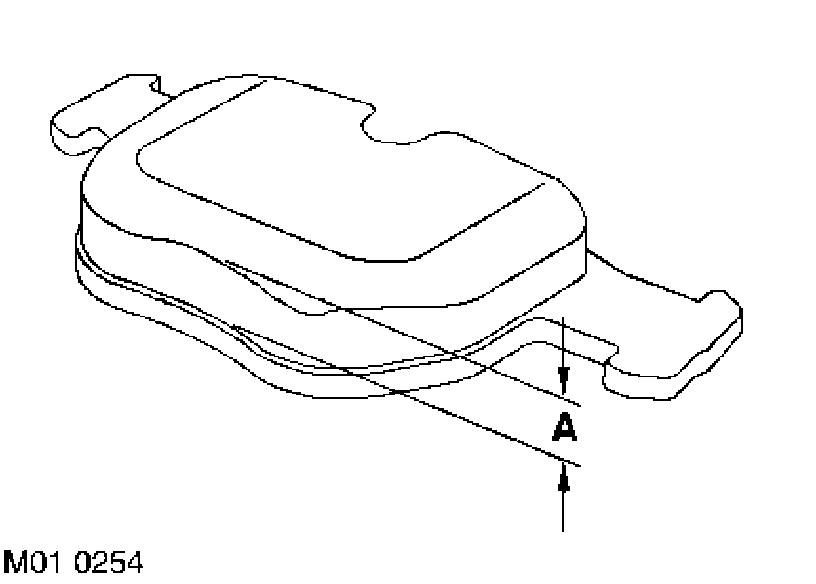

^ Brake pad minimum thickness - Front and rear - A = 3.0 mm (0.012 in)





3. Check brake discs for signs of cracking, excessive scoring or oil contamination.
4. Check thickness of brake discs, make 4 checks at 90° intervals:
^ Front = 28.4 mm (1.12 in)
^ Rear = 10.4 mm (0.41 in)
^ Thickness variation = 0.010 mm (0.0004 in)
5. Check calipers for signs of fluid leaks.
6. Clean excessive deposits of brake dust from pads, calipers and disc shields using brake cleaner.
7. Fit front and rear brake pads.
