Entertainment Systems

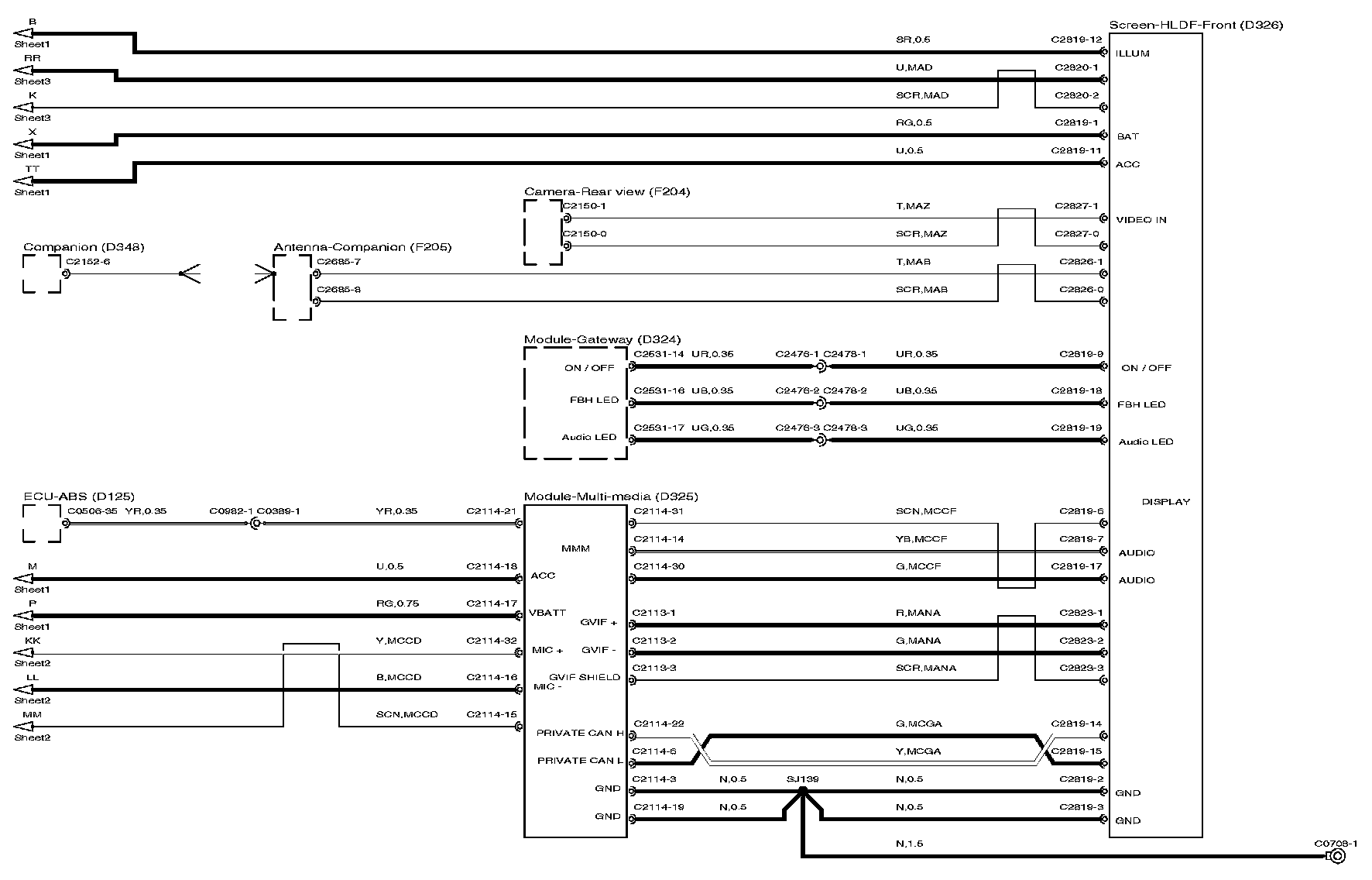

Entertainment System (Sheet 1):

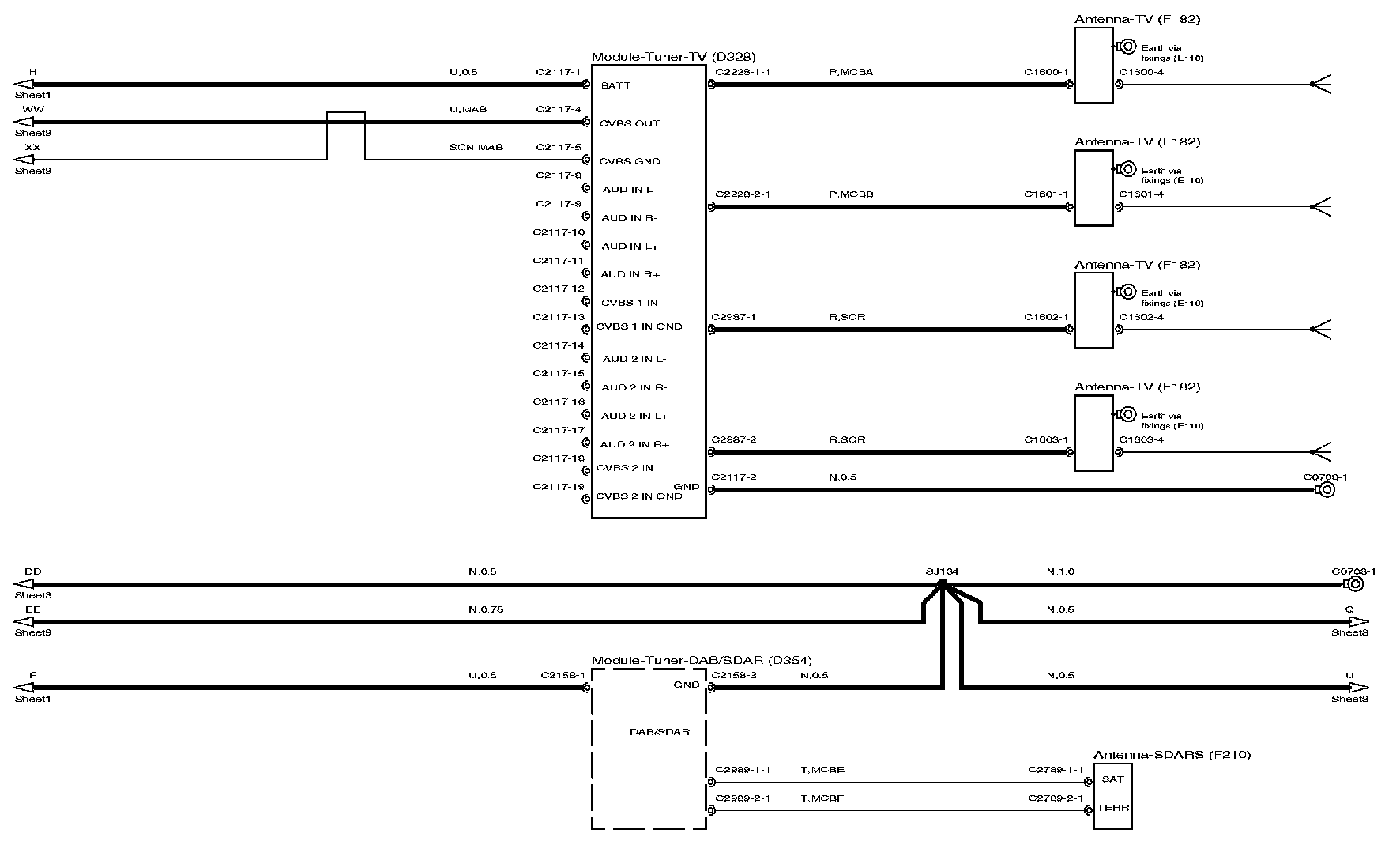

Entertainment System (Sheet 2):

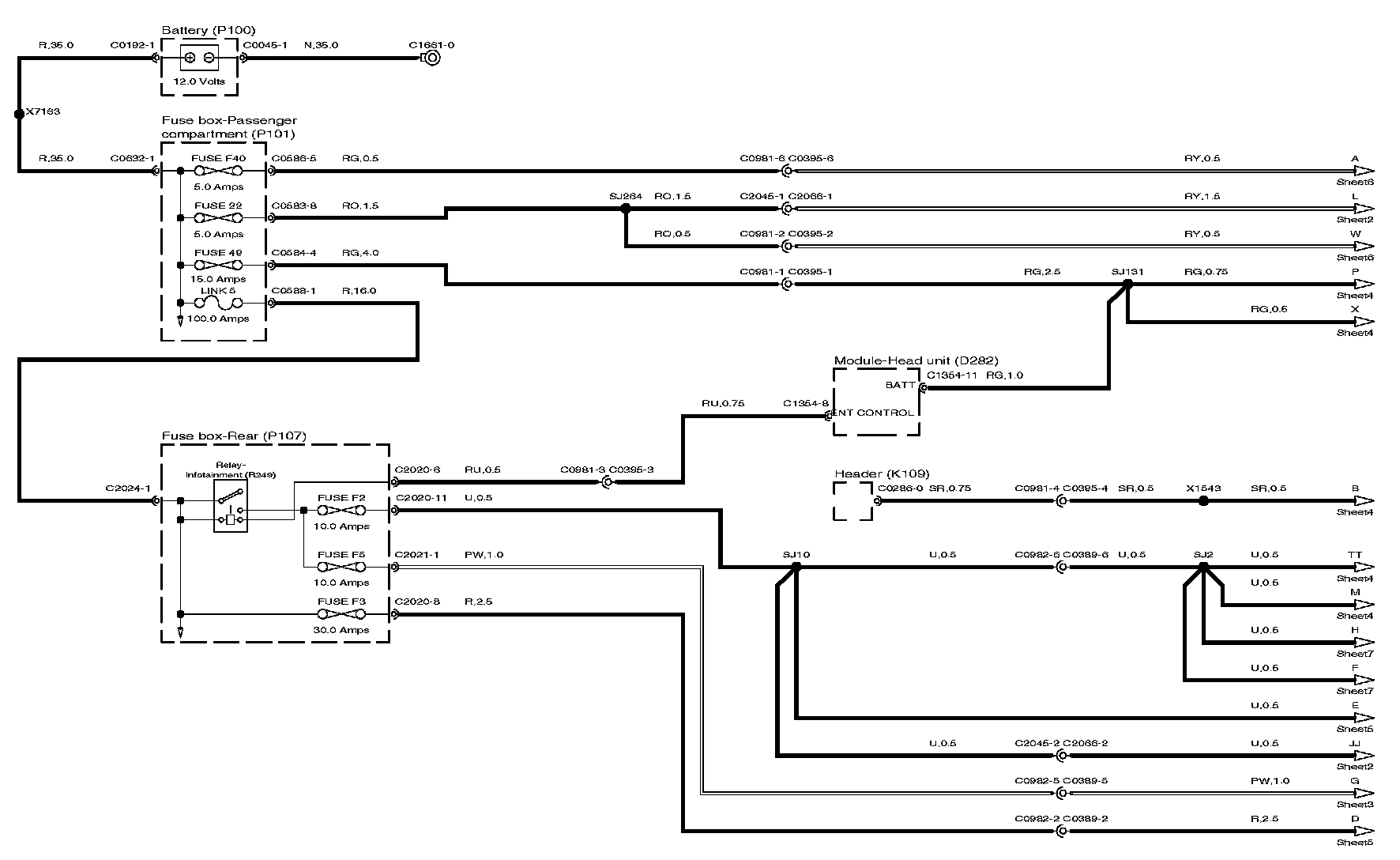

Entertainment System (Sheet 3):

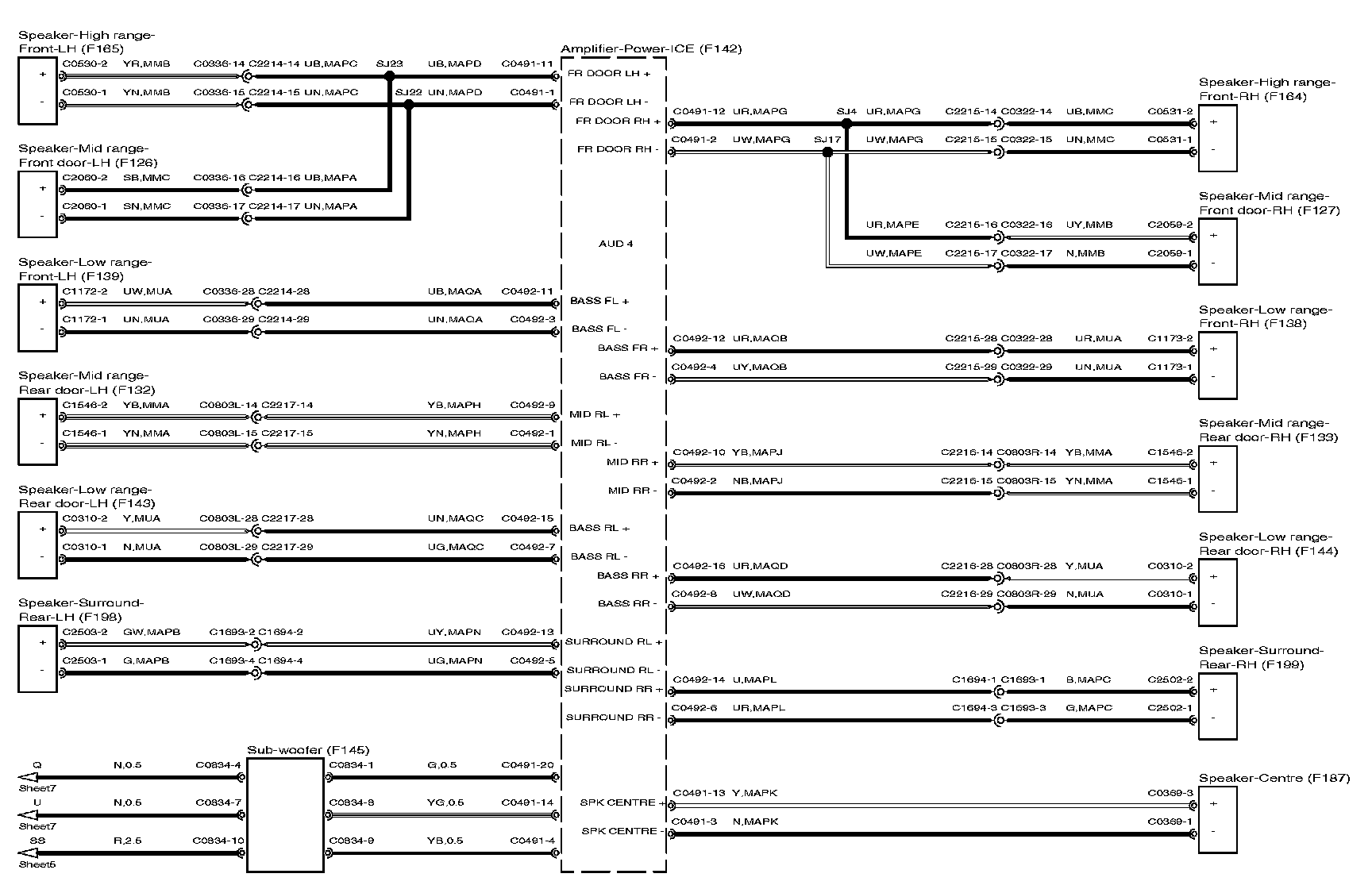

Entertainment System (Sheet 4):

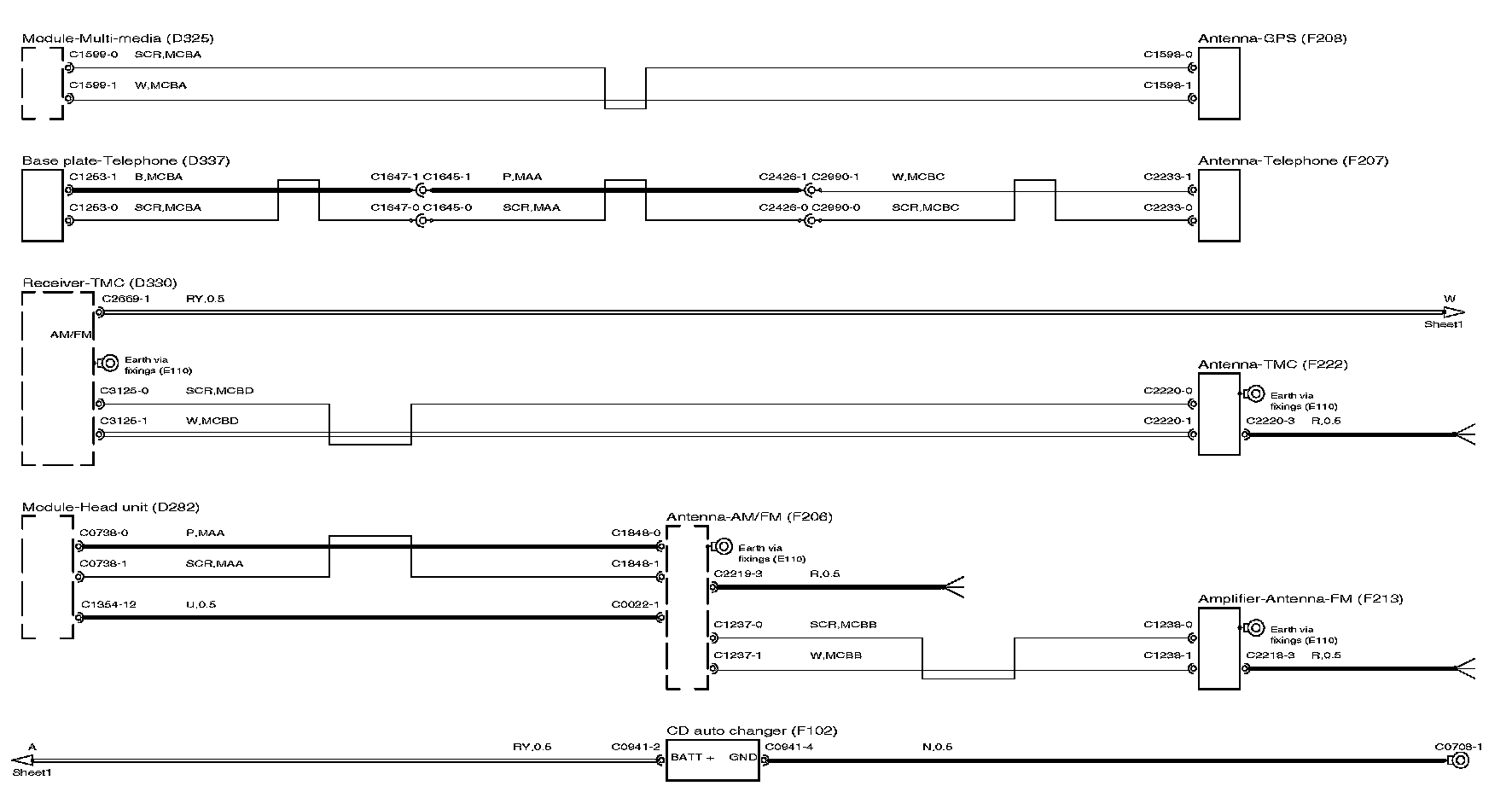

Entertainment System (Sheet 5):

Entertainment System (Sheet 6):

Entertainment System (Sheet 7):

Entertainment System (Sheet 8):

Entertainment System (Sheet 9):

Entertainment System (Sheet 10):

Entertainment System (Sheet 11):

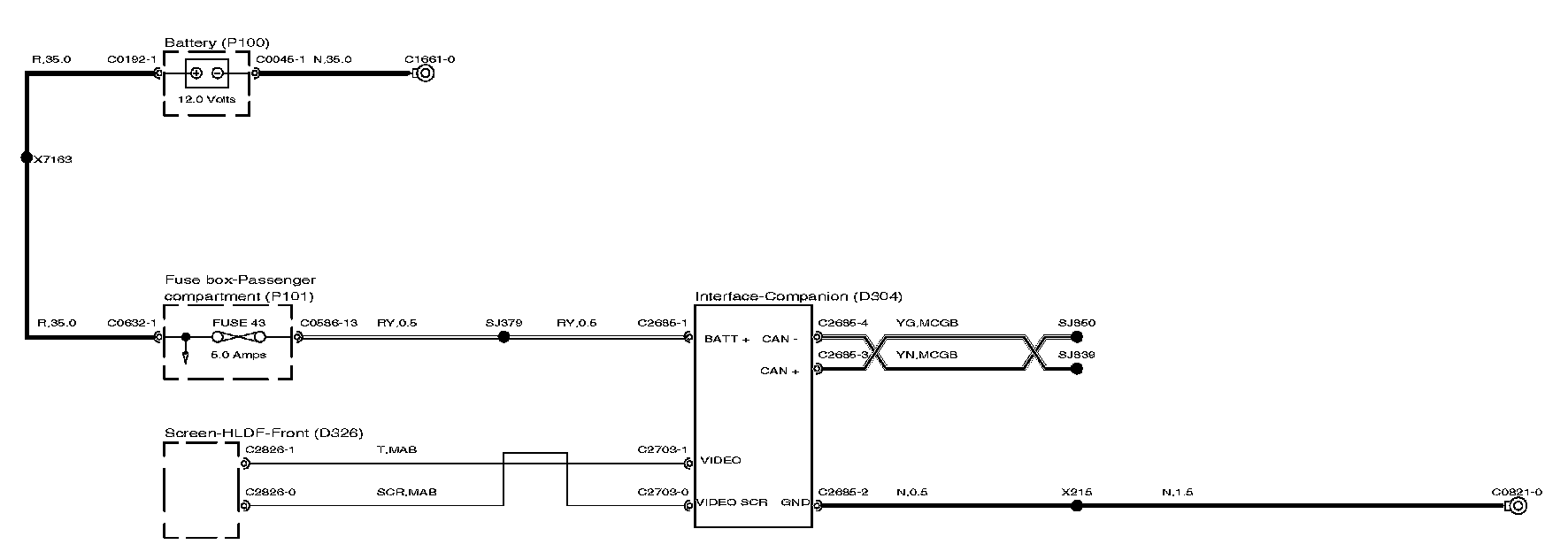

Companion:

Locations: The location views for connectors and components depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Locations/Connectors. Connector Locations

Connector Views: The connector pin out views for connectors depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Diagrams/Connector Views. Connector Views
