Blower Motor: Service and Repair

80.20.15 Motor - Fan

Remove
1. Remove HEVAC assembly.

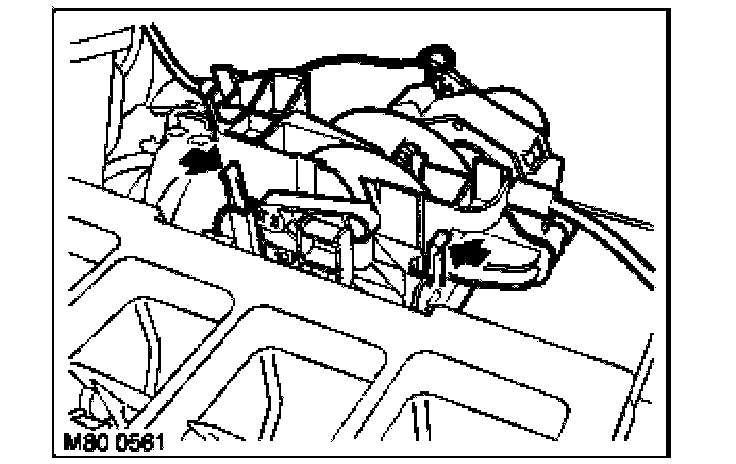

2. Release air blend assembly and position aside.





3. Release 3 clips and remove heater fan cover.





4. Remove 3 Torx screws securing fan assembly to heater.
5. Disconnect multiplug and remove fan assembly.

Refit
1. Position fan assembly to heater and connect multiplug.
2. Fit and tighten fan assembly Torx screws.
3. Fit and secure fan cover.
4. Fit and secure air blend assembly.
5. Fit HEVAC assembly to fascia.
