Motor - Footwell Air Vent

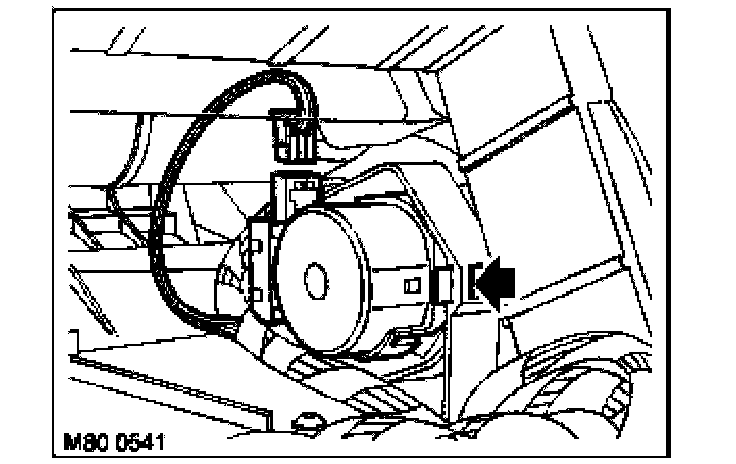

80.20.20 Motor - Footwell Air Vent

Remove
1. Remove heating control assembly.





2. Disconnect multiplug from motor, remove motor from heating assembly.

Refit
1. Fit motor to heating assembly, connect multiplug.
2. Fit heating control assembly.
