86.77.02 Light Check Module (LCM)

If the ECU is to be replaced then Testbook/T4 must be connected and correct procedures adhered to, prior to battery disconnection.

Remove
1. Remove RH lower 'A' post finisher.

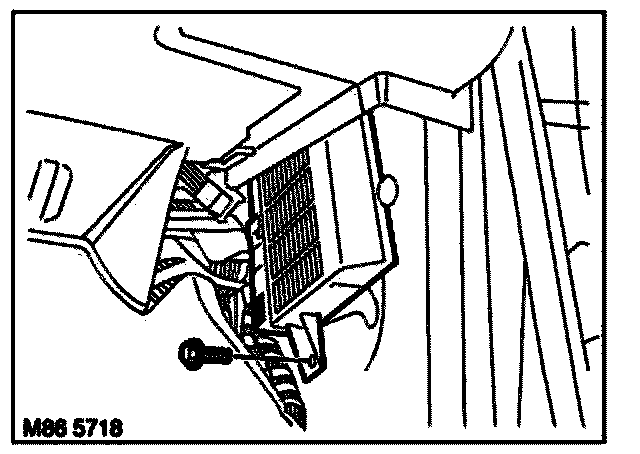

2. Remove screw securing LCM to 'A' post.





3. Release LCM from mounting and disconnect multiplugs.
4. Remove LCM.

Refit
1. Position LCM and connect multiplugs.
2. Fit LCM and secure with screw.
3. Fit RH lower 'A' post finisher.
