Body - Rear Door Window Inoperative

NO.: LTB00149

ISSUE: 2

DATE: 01 OCT 2008

ISSUE "2" CHANGES ARE HIGHLIGHTED WITH GRAY IN THE BACKGROUND

SECTION: 501

Rear Window Inoperative - Repair Procedure





AFFECTED VEHICLE RANGE

CONDITION SUMMARY:

Situation:

A rear door window may be inoperative. The Body Control Module (BCU) configuration file should include a timer that starts on the activation of the window regulator motor. If the regulator motor is held active over eight seconds the timer will be exceeded and the motor will become disabled for protection. The timer is missing from some configuration files within the affected VIN range, allowing a window regulator motor to become disabled under certain operating conditions.

Action:

In the event of a customer concern of the above, refer to the Repair Procedure outlined in this bulletin to replace the disabled rear door window regulator and re-configure the BCU.





PARTS

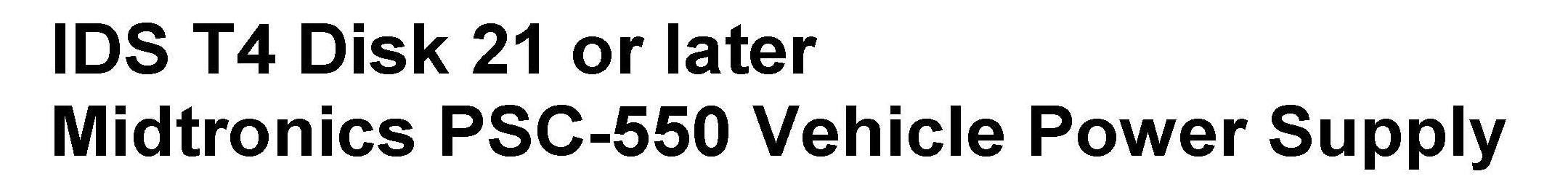

TOOLS

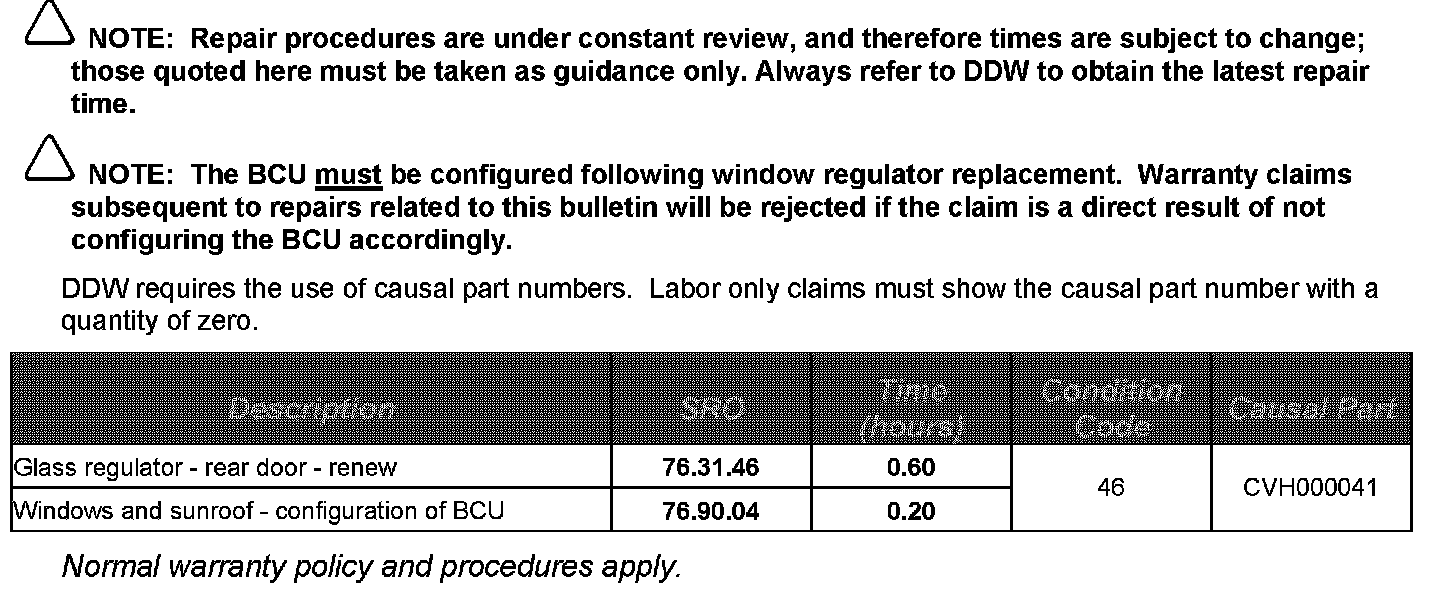

WARRANTY

REPAIR PROCEDURE:

REPLACE WINDOW REGULATOR

NOTE:
Global Technical Reference (GTR) lookup sequence is as follows:

GTR Home > NAS > LM - New Range Rover > Service Information > Model Year > Workshop Manual - Service Procedures > 76-1 - Doors

1. Refer to Workshop Manual (GTR) Section Glass Regulator - Rear Door (76.31.46) to replace the affected window regulator.

CONFIGURE THE BODY CONTROL MODULE (BCU)

CAUTION:
A Midtronics PSC-550 Vehicle Power Supply must be connected to the vehicle battery during diagnosis / module programming.

1. Connect the Midtronics PSC-550 Vehicle Power Supply to the vehicle battery.

NOTE:
IDS must be loaded with T4 disk 21 or later.

2. Connect the IDS to the vehicle.

3. Select 'T4 Diagnostic System'.

4. Select 'Range Rover' icon.

5. Select 'Diagnostic System'.

6. Follow on-screen instructions to enter Model Year and VIN.

7. Select 'System Diagnostics'.

8. Select 'Windows and Sunroof'.

9. Select 'Fault Code Diagnostics'.

10. Follow instructions and clear all Diagnostic Trouble Codes (DTC's).

11. Select 'Vehicle Maintenance'.

CAUTION:
Do not disconnect battery and renew ECU as per IDS prompts.

12. Select 'ECU Renewal'.

13. Select 'Continue', following on-screen instructions to access 'Vehicle Configuration' screen.

14. Select 'Yes' to 'Re-apply personalization?'.

15. Select 'Continue', following on-screen instructions to configure the BCU.

16. Exit the current session.

17. Disconnect IDS and the Midtronics PSC-550 Vehicle Power Supply from the vehicle.
