Campaign - Front Differential Spline Wear (Canada): Overview
No.: Q041Issue: 3
Date: 05 DEC 2008
THIS SERVICE ACTION IS VALID FOR TWO YEARS ONLY AND WILL EXPIRE ON 30 JUNE 2010. ISSUE '3' CHANGES ARE HIGHLIGHTED IN GRAY
SECTION: 205
SERVICE ACTION Q041: Front Differential to Propeller Shaft Spline Wear - Repair Procedure

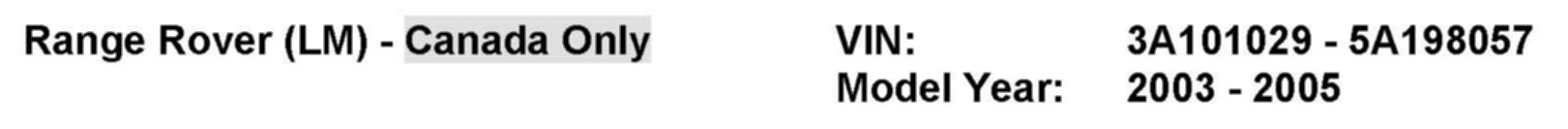

AFFECTED VEHICLE RANGE
CONDITION SUMMARY:
Situation:
The front differential coupling sleeve and propeller shaft may be misaligned resulting in spline wear over time. As the wear between the propeller shaft and differential spline progresses, noise and vibration will be generated. If the driver continues to operate the vehicle and either ignores the noise and vibration or is unaware of it, the wear could eventually result in a loss of drive.
Action:
Refer the Repair Procedure section of this bulletin for instructions on performing the Front Differential and Propeller shaft coupling repair.

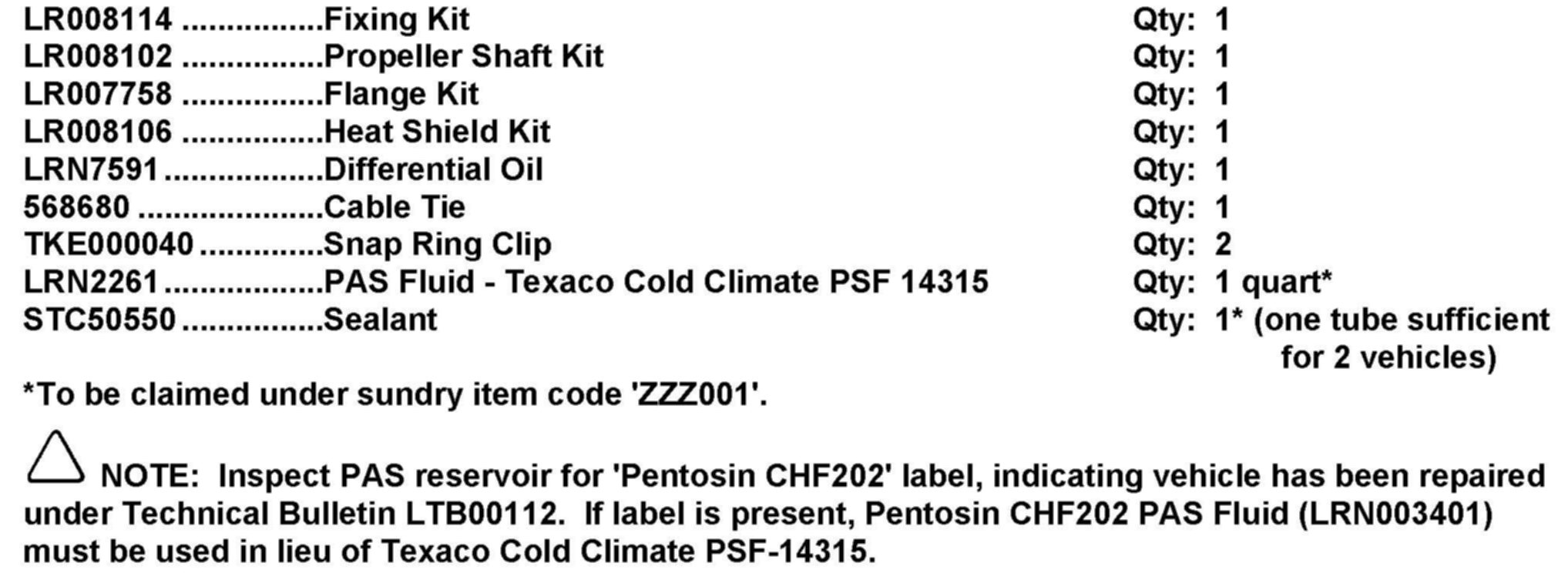

PARTS
SPECIAL TOOLS
WARRANTY

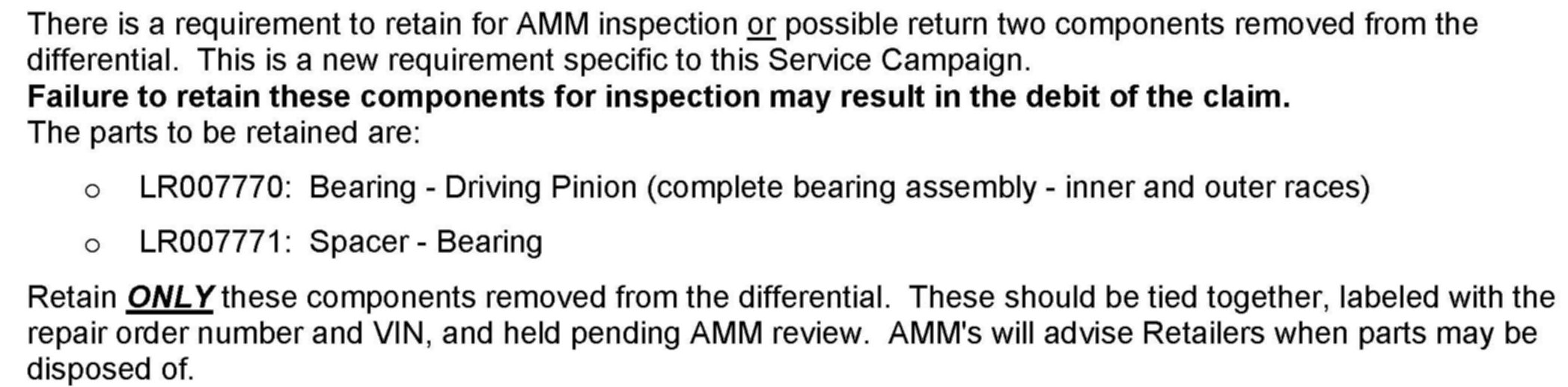

SPECIAL PARTS RETURN PROCEDURE
CUSTOMER REIMBURSEMENT PROCESS
