Drivetrain - Transfer Case Removal Procedure

No: LM-308-001
Issue: 1
Date: 02 May 2006

SECTION: 308-07

Transfer Box Removal for Access Procedure Change

AFFECTED VEHICLE RANGE:

Range Rover (LM)
VIN: 3A101029 to 5A194479

CONDITION SUMMARY:

n:

REVISED REPAIR TIME RESULT OF PROCESS CHANGE

Situation:
Methods engineers at Land Rover have recently studied the service process for removal of the transfer box assembly for Range Rover (LM) models equipped with the "M62" BMW engine. Significant process changes have been made. The changes, detailed below, refine and improve the process which allows the operation to be carried out more efficiently. The principle changes are:

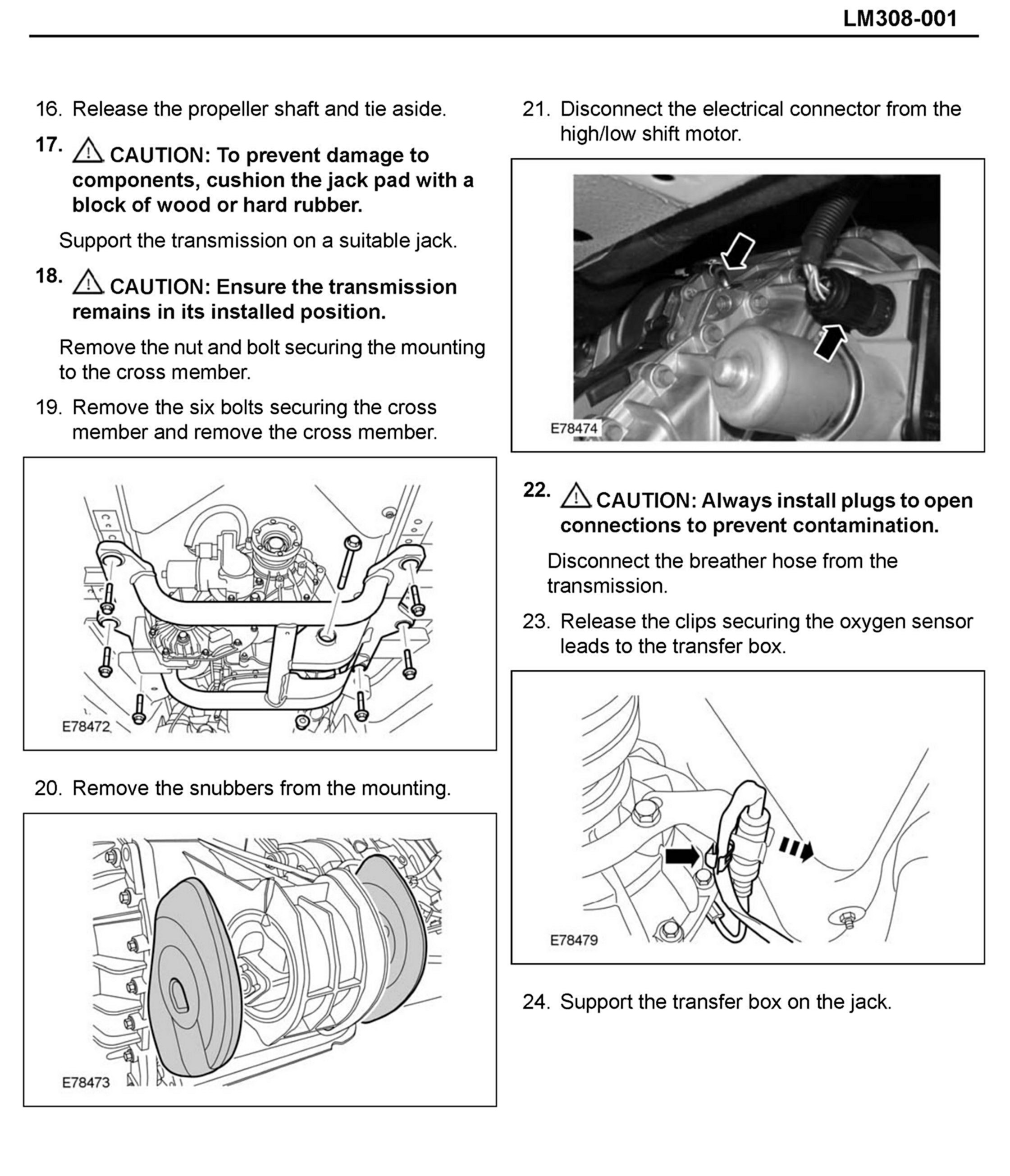

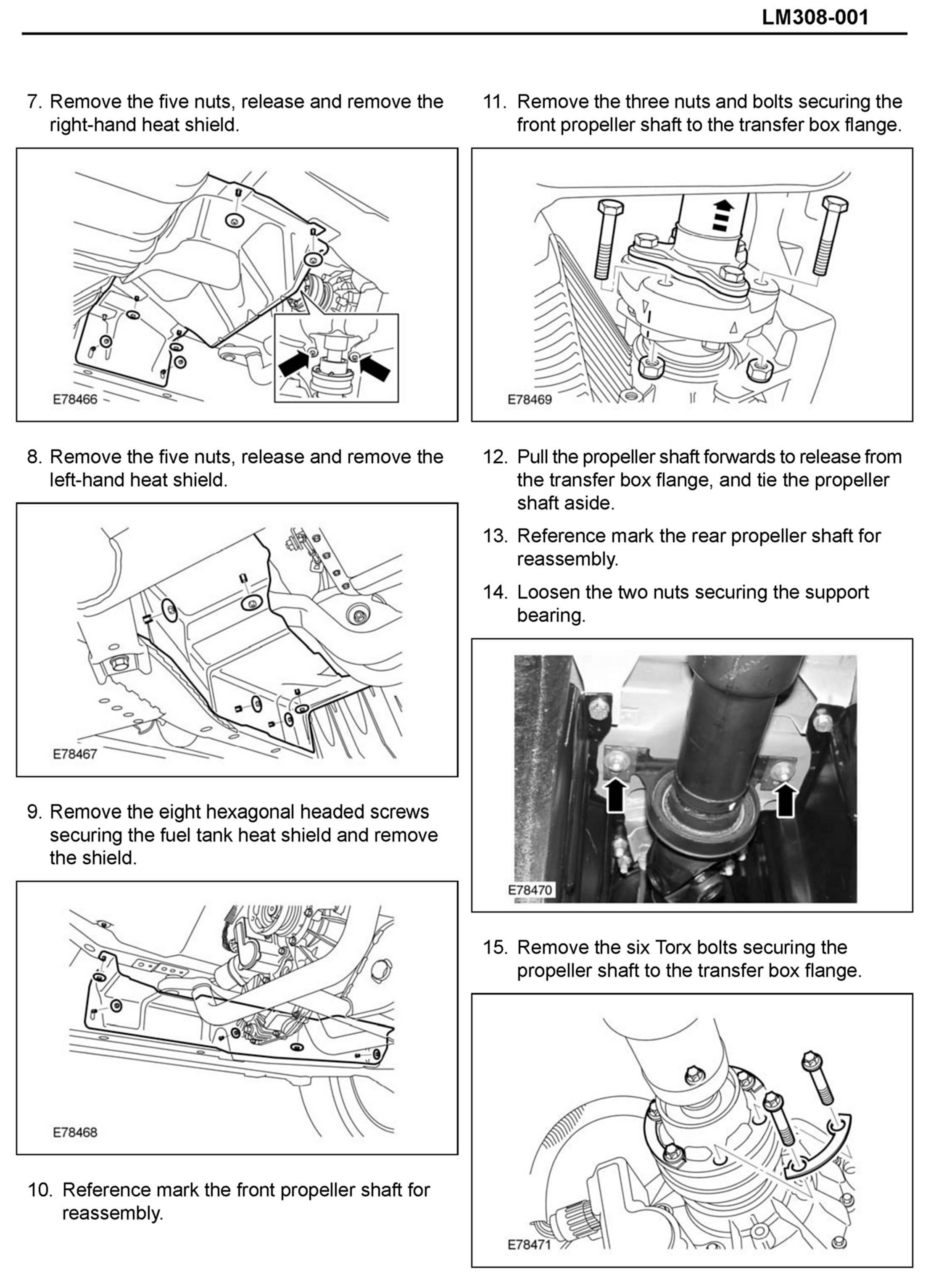

^ Front and rear driveshaft removal - no longer required. Driveshafts now secured aside.

^ Transfer box oil drain and refill - not required when removed for access only.

NOTE:
The relevant Workshop Manual Section, which these updated procedures relate to, will be updated at the next available opportunity.

Action:

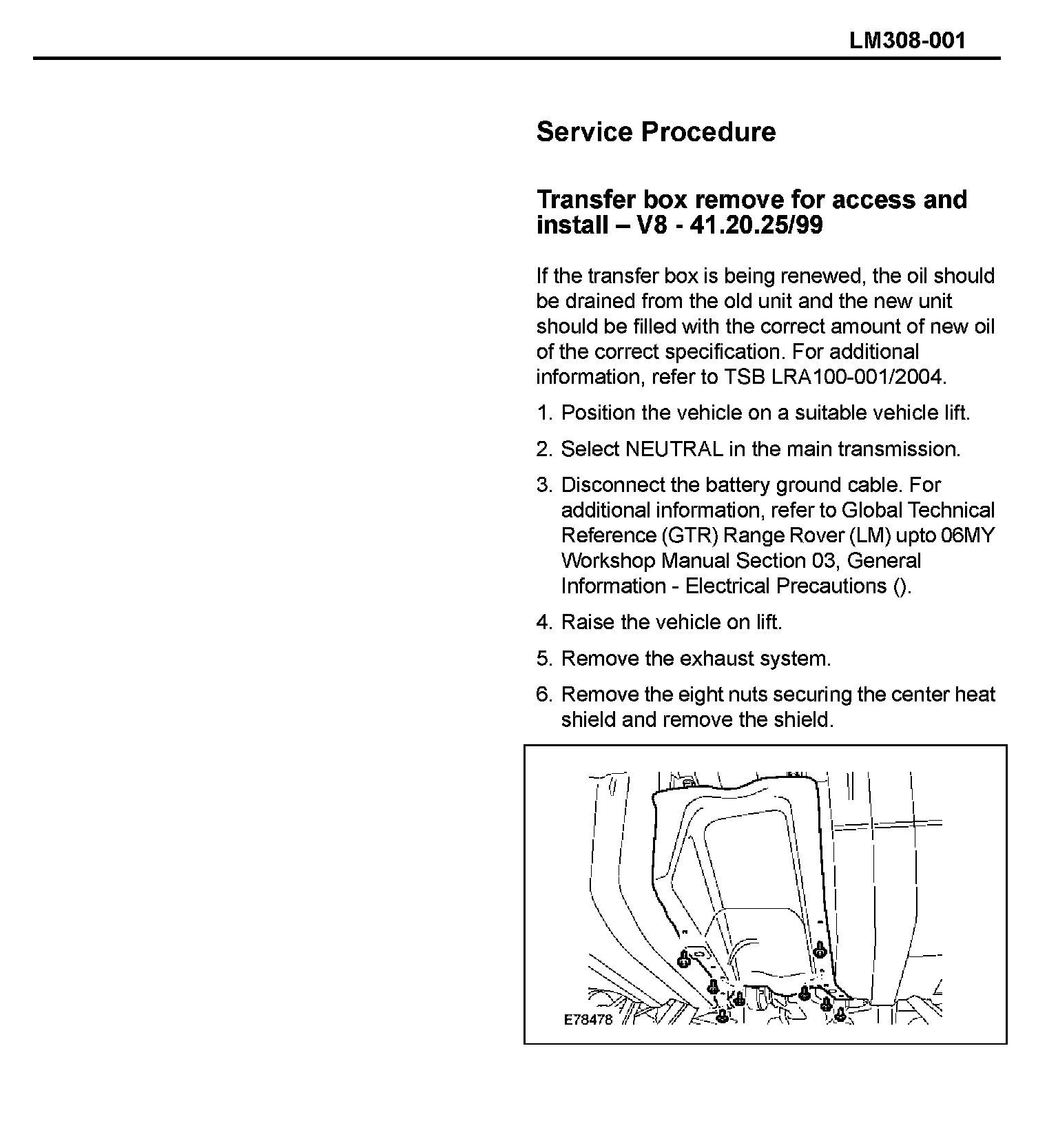

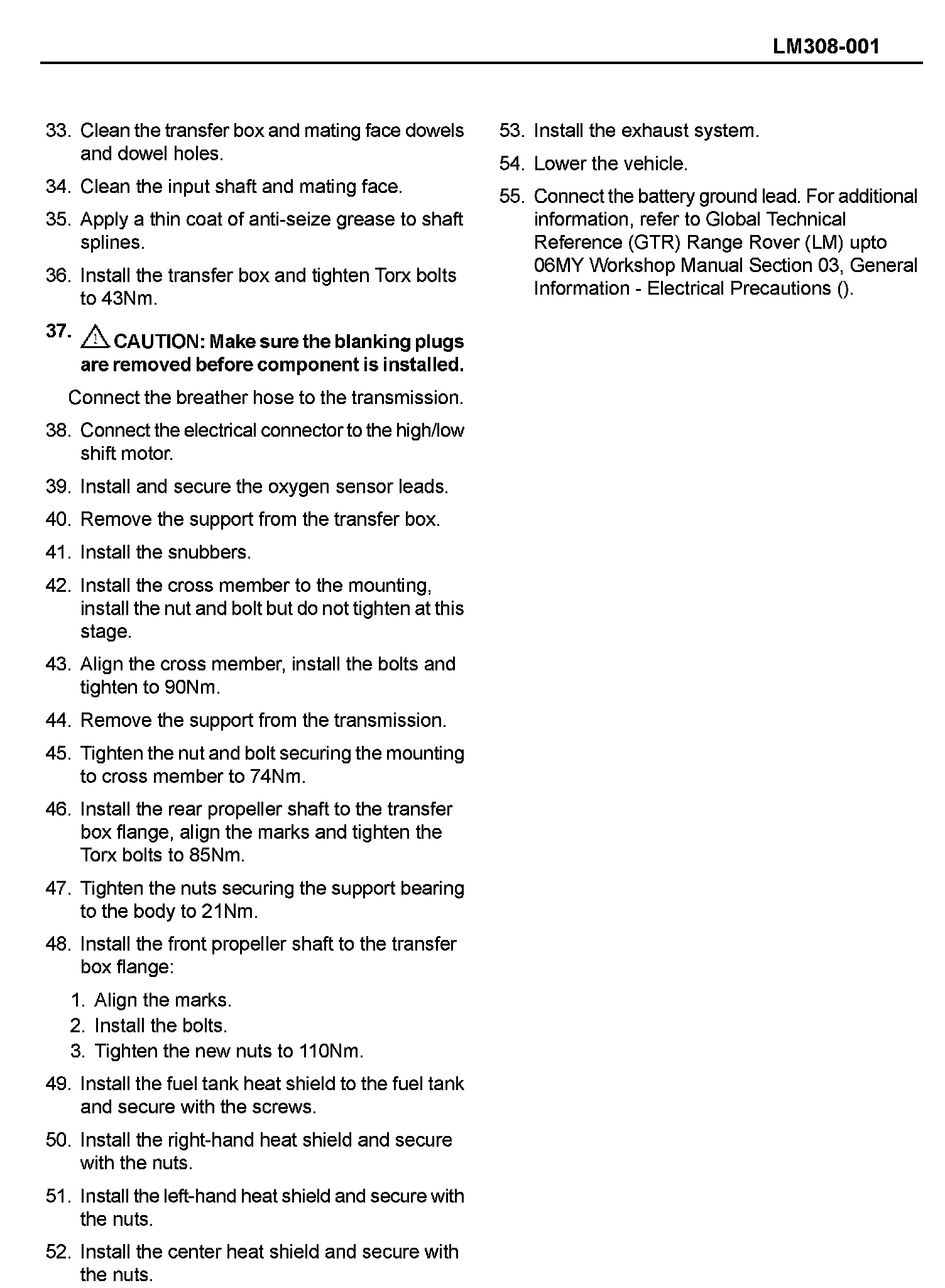

Should it become necessary to remove a transfer box assembly on a 2003-2005 model year Range Rover (LM), please refer to the procedure detailed in this bulletin.

PARTS:

As required for associated repair

TOOLS:

LRT-41-018 - 1121314 Transfer Box Mounting Bushing remover/replacement tool

WARRANTY:

NOTE:
Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to DDW to obtain the latest repair time.

^ Superseded repair time - 41.20.25/99 - M62 (BMW) V8 - Old Time 3.50 hours





DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.

Normal warranty policy and procedures apply.
