Recall - Differential/Driveshaft Spline Wear: Overview
No: P041Issue: 3
Date: 19 FEB 2009
THIS SAFETY RECALL HAS BEEN EXPANDED TO INCLUDE CANADA
SECTION: 205
SAFETY RECALL P041: Front Differential to Propeller Shaft Spline Wear - Repair Procedure
AFFECTED VEHICLE RANGE
CONDITION SUMMARY:
Situation:
The front differential coupling sleeve and propeller shaft may be misaligned resulting in spline wear over time. As the wear between the propeller shaft and differential spline progresses, noise and vibration will be generated. If the driver continues to operate the vehicle and either ignores the noise and vibration or is unaware of it, the wear could eventually result in a loss of drive.
Action:
Refer the Repair Procedure section of this bulletin for instructions on performing the Front Differential and Propeller shaft coupling repair.

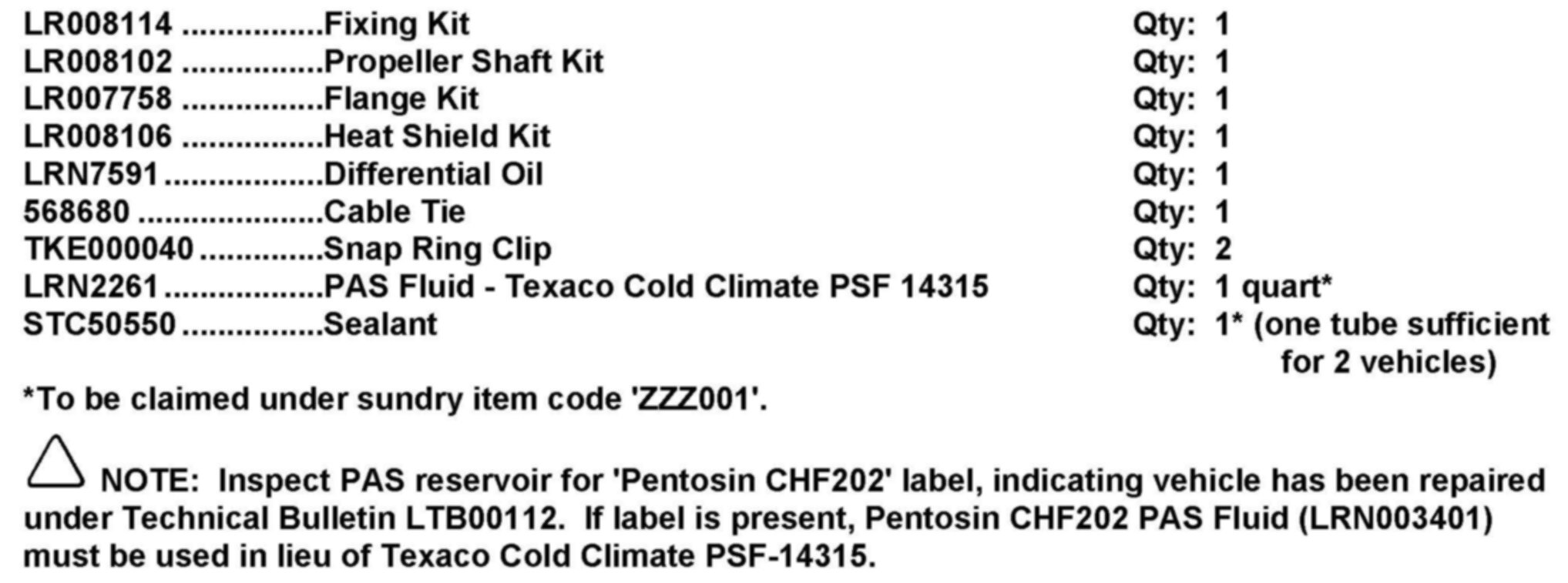

PARTS

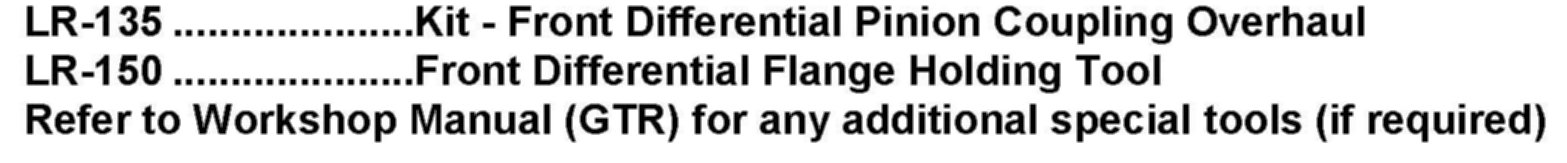

SPECIAL TOOLS

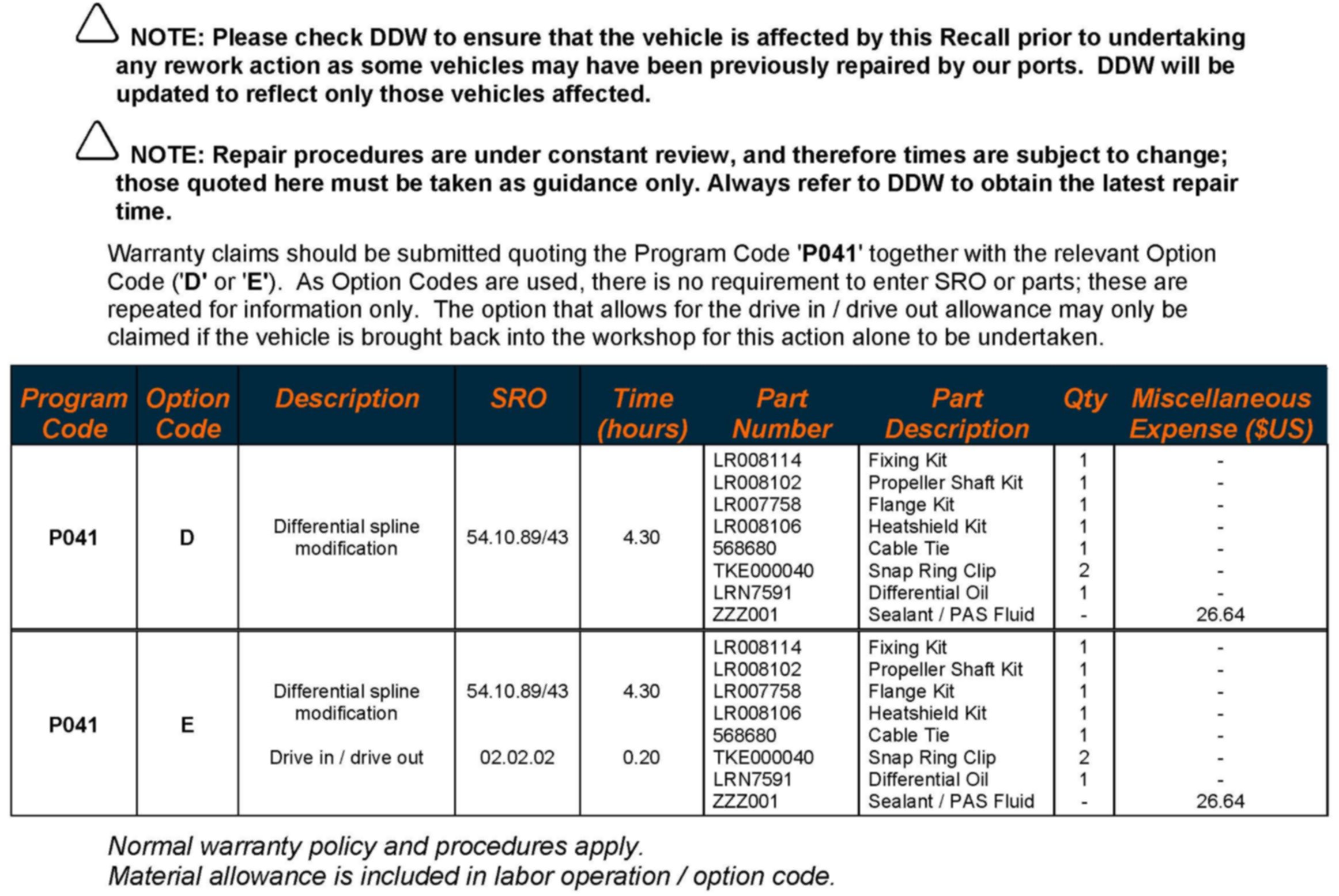

WARRANTY

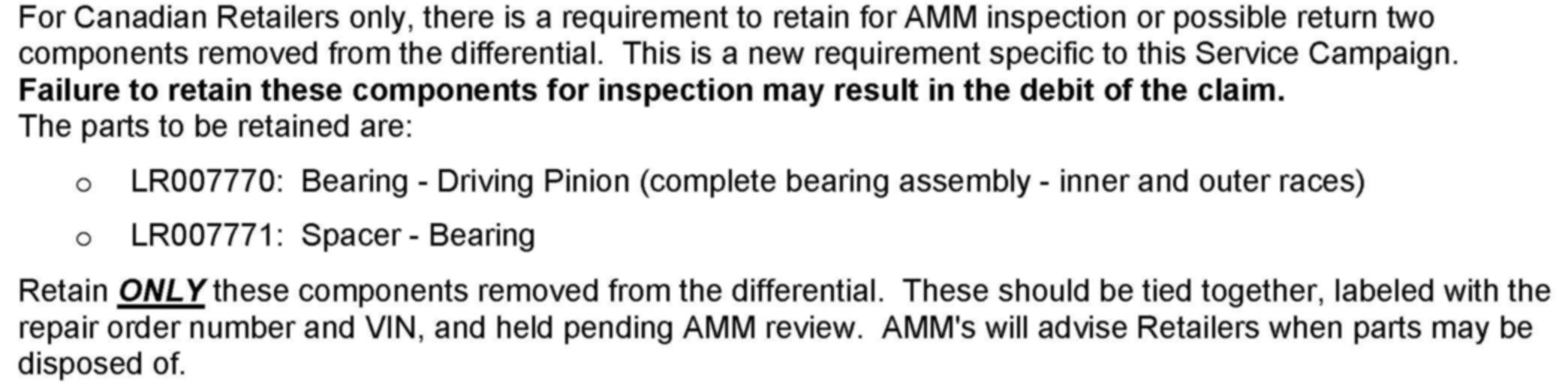

SPECIAL PARTS RETENTION PROCEDURE - CANADA ONLY

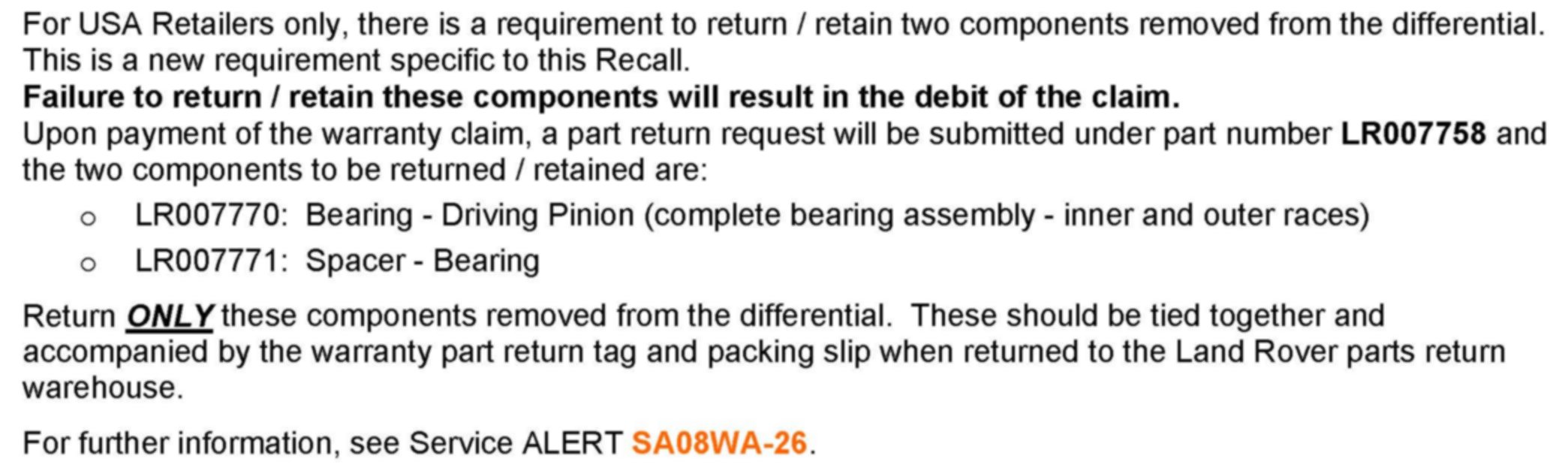

SPECIAL PARTS RETURN PROCEDURE - USA ONLY
CUSTOMER REIMBURSEMENT PROCESS
