Home >> Land Rover >> 2006 >> LR3 (LA) V8-4394cc 4.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> Refrigerant Control Solenoid Valve >> Locations

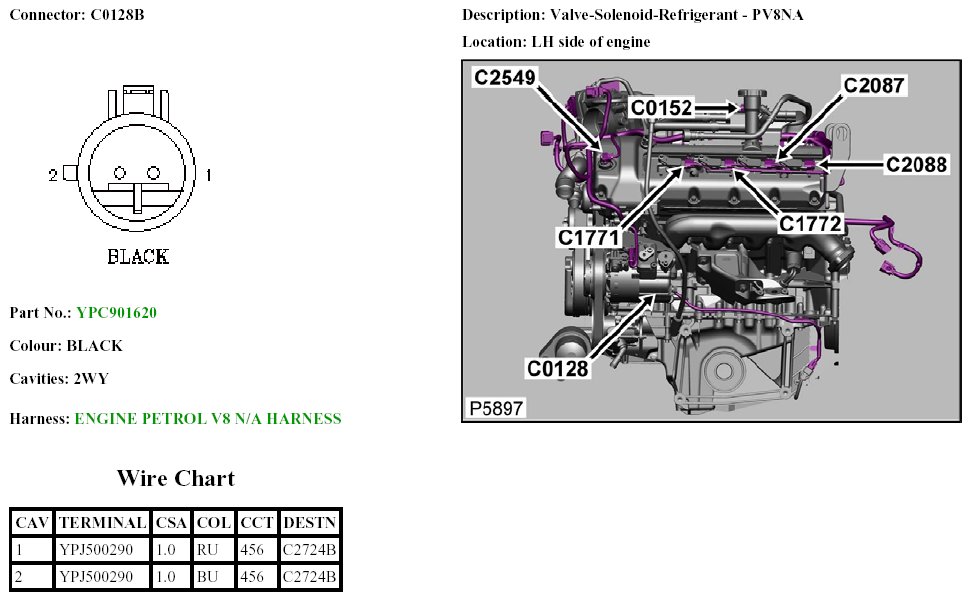

Refrigerant Control Solenoid Valve: Locations

Valve-Solenoid-Refrigerant-PV8NA

C0128B:
