Maintenance - Lubricant and Fluid Specifications

No: LA100-002
Issue: 1
Date: 28 Sep 2005

SECTION: LA100-00

Lubricant and Fluid Specifications

AFFECTED VEHICLE RANGE:
LR3 (LA)
ALL

CONDITION SUMMARY:

UNIQUE LUBRICANTS AND FLUIDS REQUIRED

A number of Systems in the LR3 use new or in some cases unique fluids and lubricants. The appended parts listing and use table will assist retailers to maintain supply of these lubricants and will provide a quick reference to the proper specifications for each application.

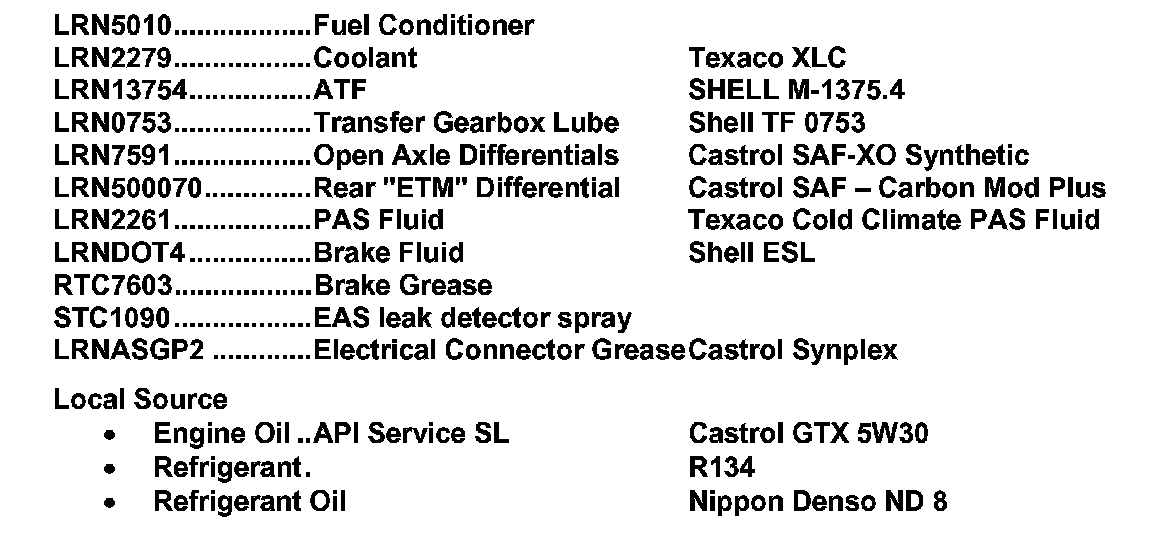

PARTS:

WARRANTY:

Normal warranty policy and procedures apply.

Warranty coverage could be affected by the use of unapproved coolants or the incorrect blending of fluids.

Failure to use specified fluids could lead to component failure. If component failures are found to be caused by use of improper fluids, warranty charge-backs could be imposed.

Normal warranty policy and procedures apply.

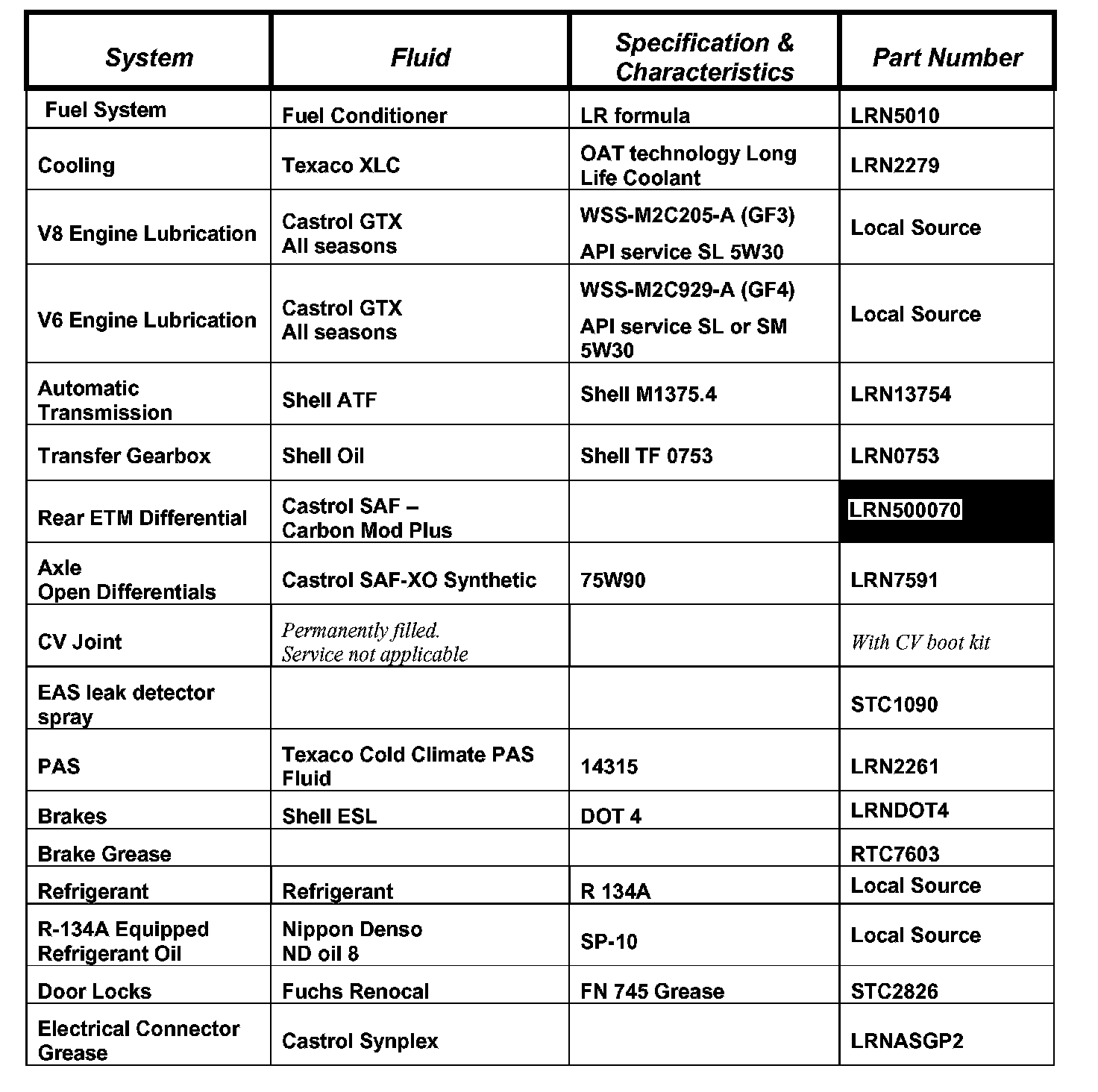

FLUID APPLICATIONS IN LR3 VEHICLES:
