Recall - A/T Parking Pawl Defect: Overview

SECTION: 307-01A

RECALL:

Transmission Parking Pawl Guide Plate Replacement

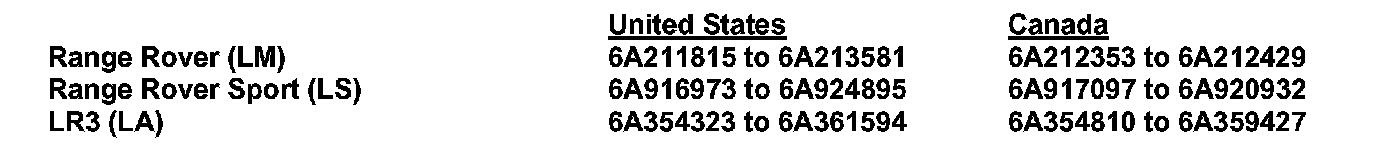

AFFECTED VEHICLES: (SPECIFIC VEHICLES WITHIN THESE VIN RANGES)

NOTE:
Vehicles within the affected VIN range may have been corrected under the provisions of a Port Quarantine associated with this Recall. These vehicles will be excluded from DDW display and owner notification in this Recall Action. Retailers must check on DDW to determine if the vehicle is affected by the Recall.

CONDITION SUMMARY:

PARKING PAWL GUIDE PLATE REPLACEMENT REQUIRED

Situation:
Land Rover has decided to recall specific LR3, Range Rover Sport and Range Rover vehicles in the affected VIN ranges to replace the parking pawl guide plate. It is possible that a plate that was not manufactured correctly has been used. The Automatic Transmission "Park" feature may not function correctly if an out-of-specification plate is installed.

Action:
Retailers are required to Quarantine affected vehicles in their control until the transmission has had the parking pawl guide plate replaced. Refer to the Repair Procedure section of this bulletin for instructions to replace the parking pawl guide plate.

US Federal law requires Retailers to complete any outstanding safety recall service before a vehicle is delivered to the buyer or lessee. Violation of this requirement by a Retailer could result in a civil penalty of up to $5.000 per vehicle.

PARTS:

NOTE:
All replaced parking pawl guide plates are designated as "Warranty Return Parts" and must be saved for return to Land Rover for inspection.

TPB500070..........Parking Pawl Guide Plate Qty 1





WARRANTY:

NOTE:
Always refer to DDW to verify vehicle eligibility for this Service Campaign and to determine if the vehicle is affected by any other Service Actions. Claims for a vehicle not specified as affected on DDW will not be paid.

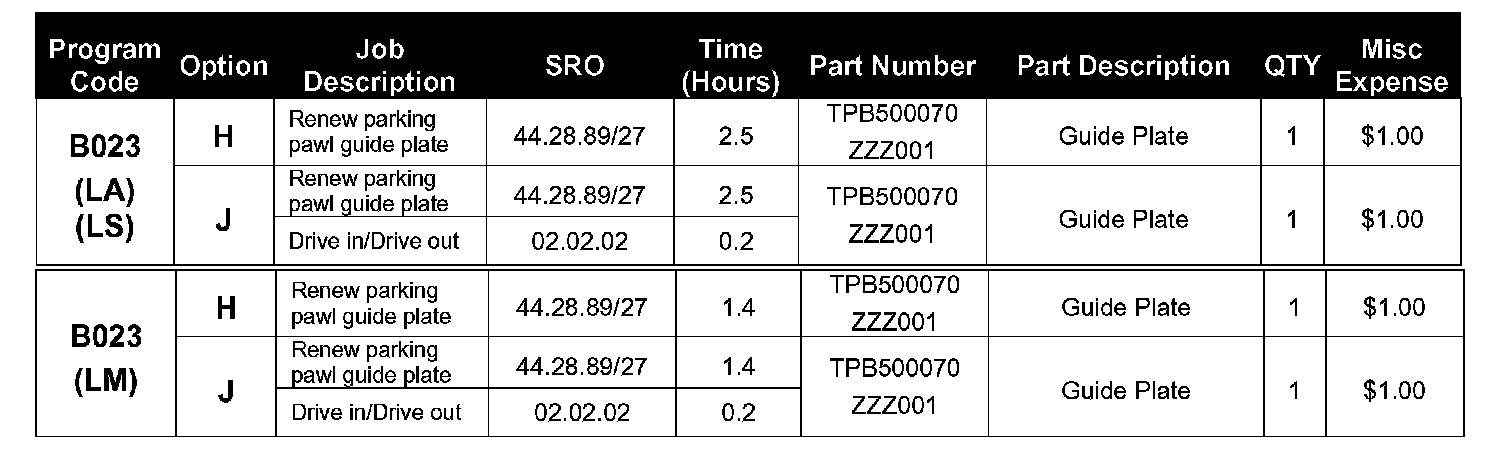

Warranty claims should be submitted quoting program code B023 together with the appropriate option code. As option codes are used, there is no requirement to enter parts or labor. They are provided for information only.

Drive in/drive out can only be claimed if the vehicle is brought back into the workshop for this action alone to be undertaken. Miscellaneous code ZZZ001 with a value of one dollar is provided for ATF top-up.

NOTE:
Service Bulletin SRE05-14 "Recall B023 - Quarantine Notification for Affected Vehicles" announced a quarantine of unsold vehicles in Retailer Inventory. This bulletin permits repair of those vehicles once parts supplies have been obtained.

NOTE:
All replaced parking pawl guide plates are designated as "Warranty Return Parts" and must be saved for return to Land Rover for inspection. Normal warranty policy and procedures apply.
