Range Rover (LM) V8-4394cc 4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Coolant Level Sensor

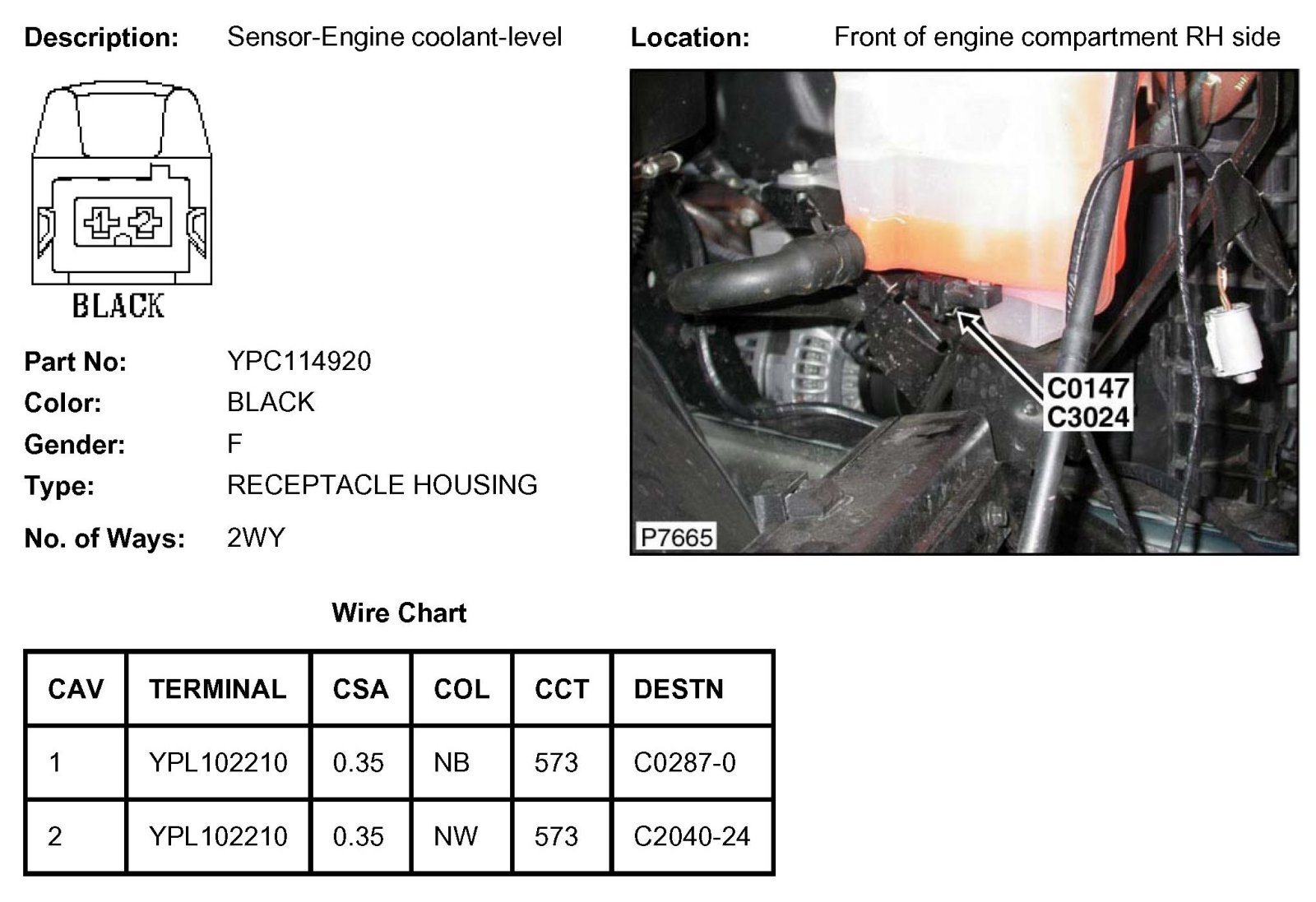

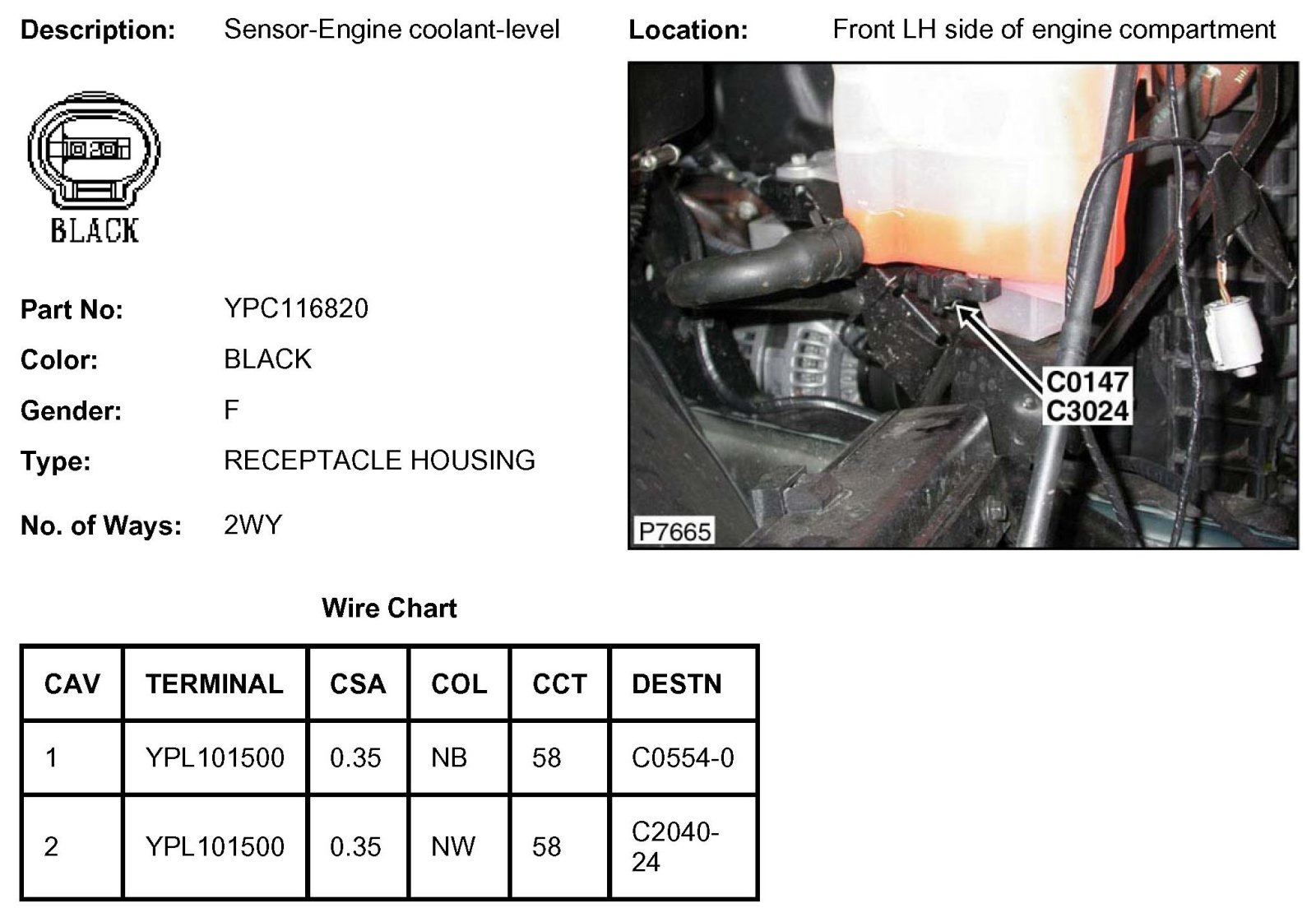

Coolant Level Sensor
C0147:
C3024:
