Home
>>
Land Rover
>>
2006
>>
Range Rover (LM) V8-4394cc 4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Temperature Sensor
Fuel Temperature Sensor
C0184:

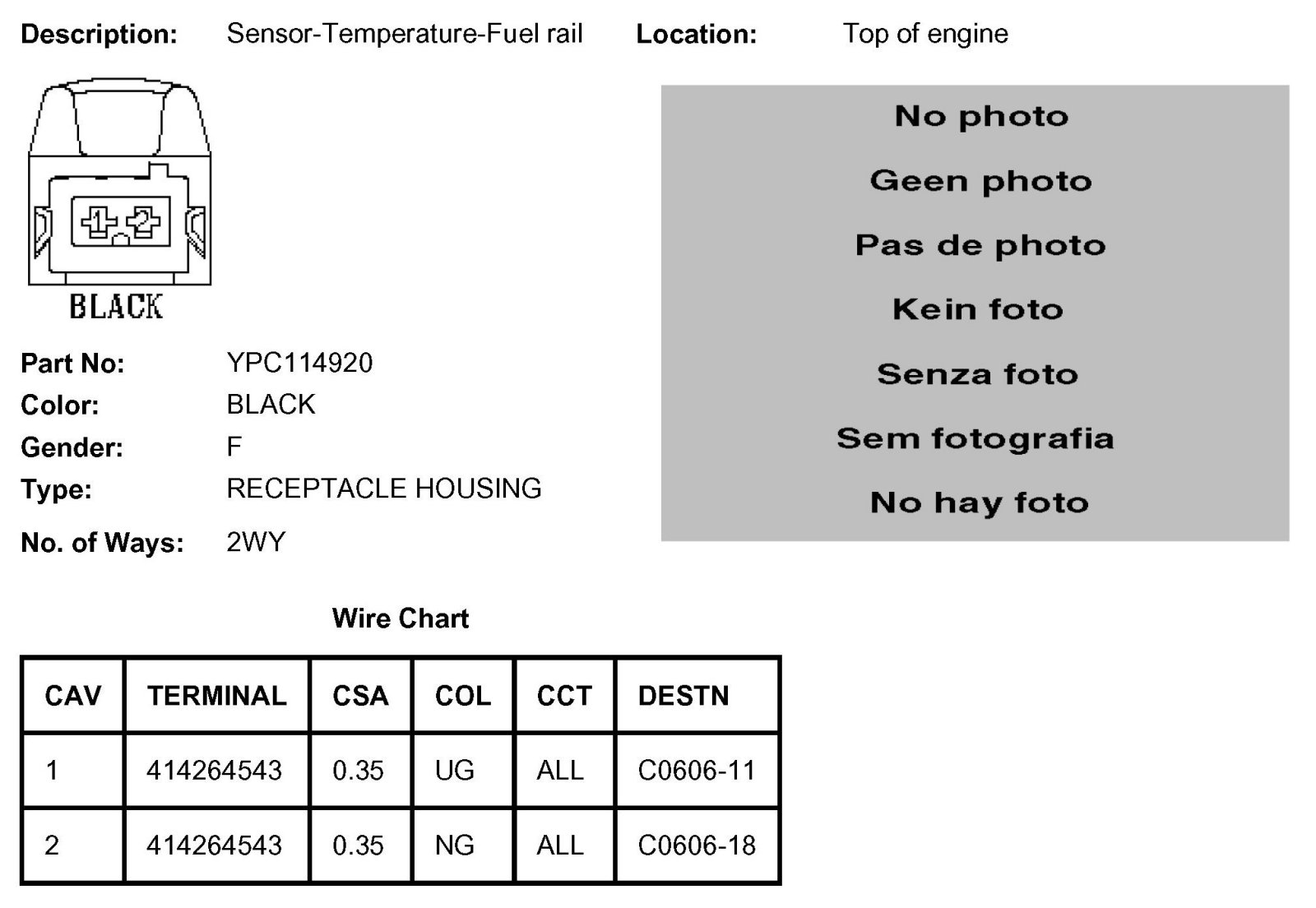

C2251:
