Home >> Land Rover >> 2006 >> Range Rover (LM) V8-4394cc 4.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Yaw Rate Sensor

Yaw Rate Sensor

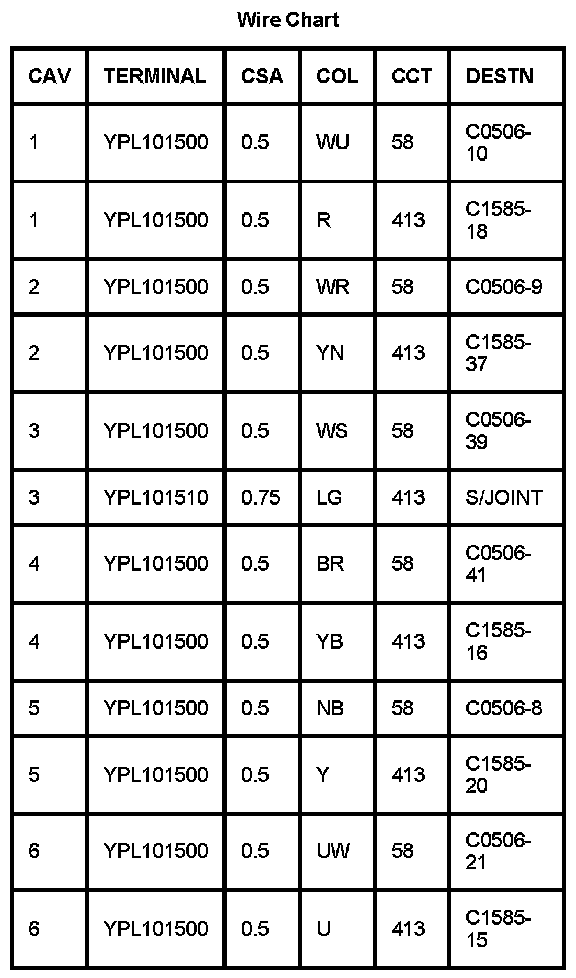

C1656 (Part 1):



C1656 (Part 2):
