Steering Column
Steering Column
Steering
Component Location
NOTE:
Td6 shown, V8 similar

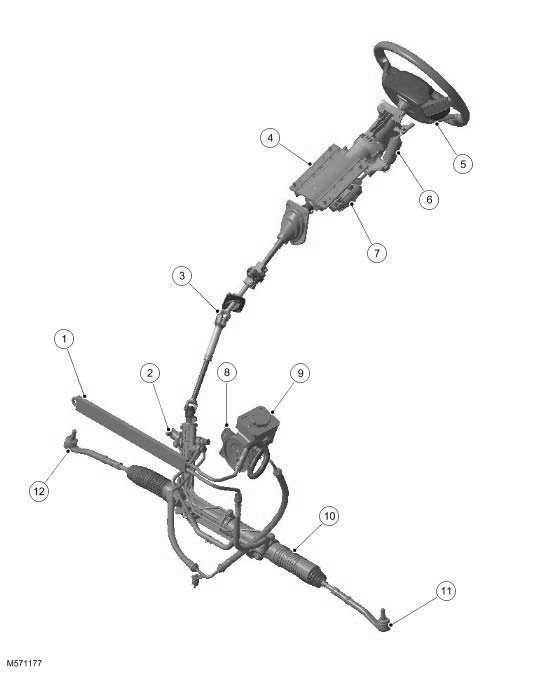

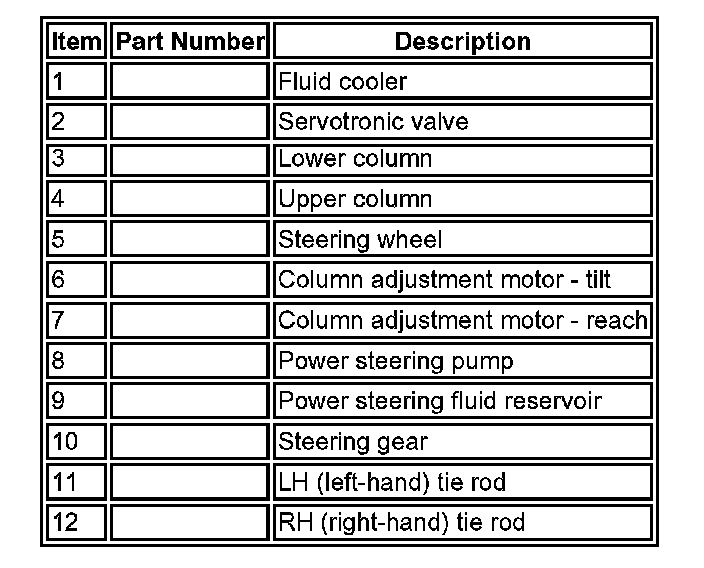

Steering Component Location (Part 1):
Steering Component Location (Part 2):
