Blower Motor Resistor: Service and Repair

Blower Motor Resistor - LHD

Removal

WARNING:
- Persons working on the supplemental restraint system (SRS) must be fully trained and have been issued with the safety guidelines.
- Allow a period of 10 minutes to elapse after disconnecting the battery before undertaking any work on the SRS.
- The SRS electrical connectors are unique. DO NOT force, or attempt to connect electrical connectors to the wrong sockets.
- The correct procedures must always be used when working on SRS components.
- It is imperative that before any work is undertaken on the SRS system, the appropriate information is read thoroughly.
- Always disconnect both battery cables before beginning work on the SRS system. Disconnect the ground cable first. Never reverse connect the battery.
- Take extra care when handling SRS components.

1. Disconnect the battery ground cable.
2. Remove the lower glove compartment. Lower Glove Compartment

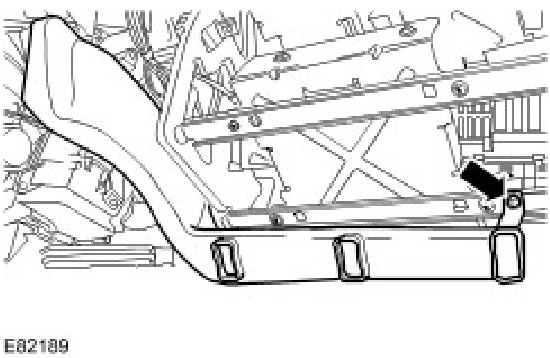

3. Remove the right-hand footwell duct.
Remove the screw.






4. Disconnect the blower motor resistor electrical connector.






5. Remove the blower motor resistor.
- Release the retaining clip.

Installation
1. Install the blower motor resistor.
2. Connect the blower motor resistor electrical connector.
3. Install the right-hand footwell duct.
- Install the screw.

4. Install the lower glove compartment.
5. Connect the battery ground cable.
