Range Rover Sport (LS) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Tire Pressure Sensor
>>
Sensor-Tire-Rear-RH
Sensor-Tire-Rear-RH
Sensor-Tire-Rear-RH

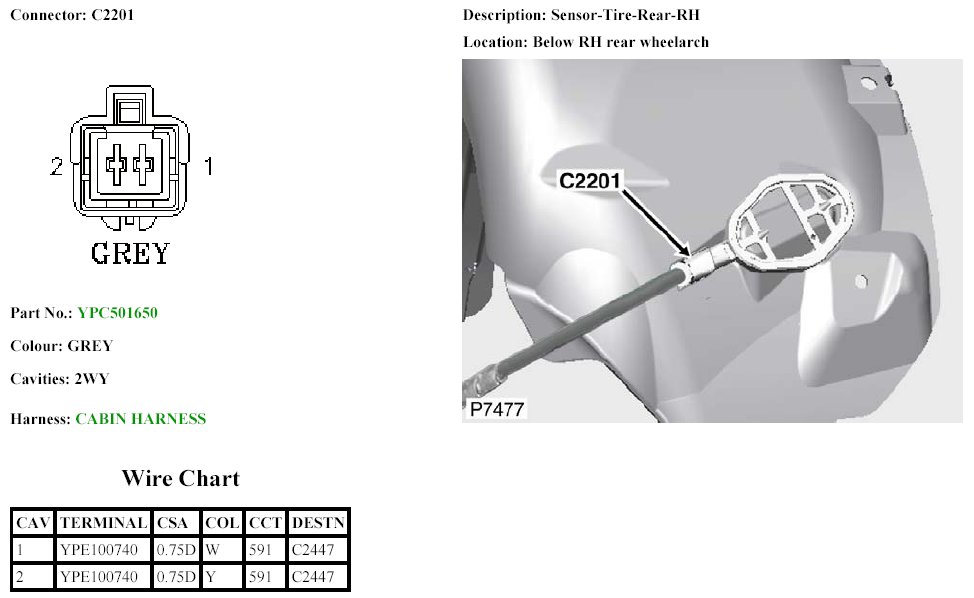

C2201:
