Integrated Accessory Switch Assembly: Service and Repair

Instrument Panel Console Switch Assembly

Service Repair No - 86.65.17

Removal

1. Remove the audio unit side trim panels.
^ Release the 4 clips.

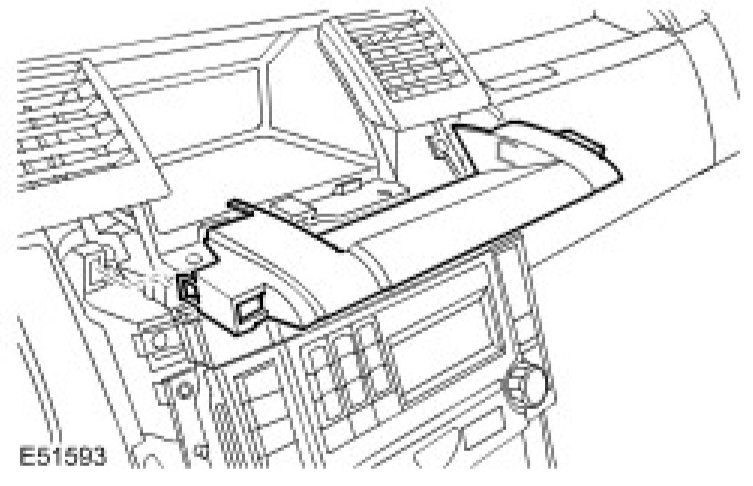

2. Remove the audio unit upper trim panel.
^ Release the 2 clips.

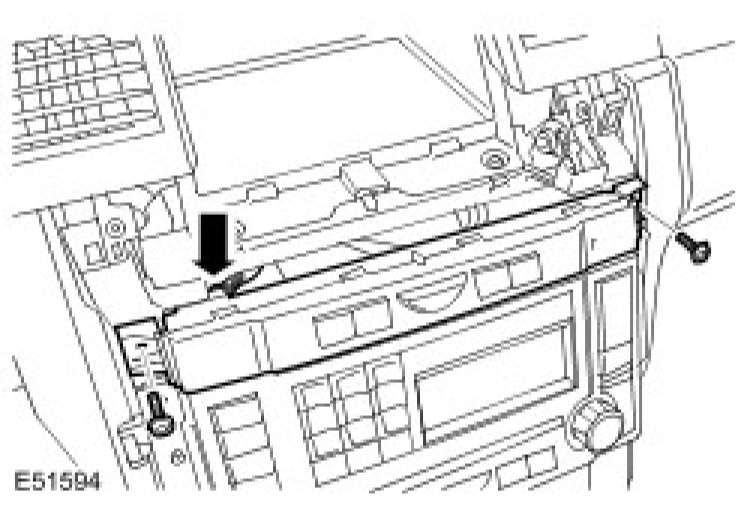

3. Remove the instrument panel console switch assembly.
^ Remove the 2 Torx screws.
^ Disconnect the electrical connector.





Installation
1. Install the instrument panel console switch assembly.
^ Connect the electrical connector.
^ Tighten the 2 screws.
2. Install the audio unit upper trim panel.
^ Secure the clips.
3. Install the audio unit side trim panels.
^ Secure the clips.
