Emergency Contact Module
Emergency Contact Module

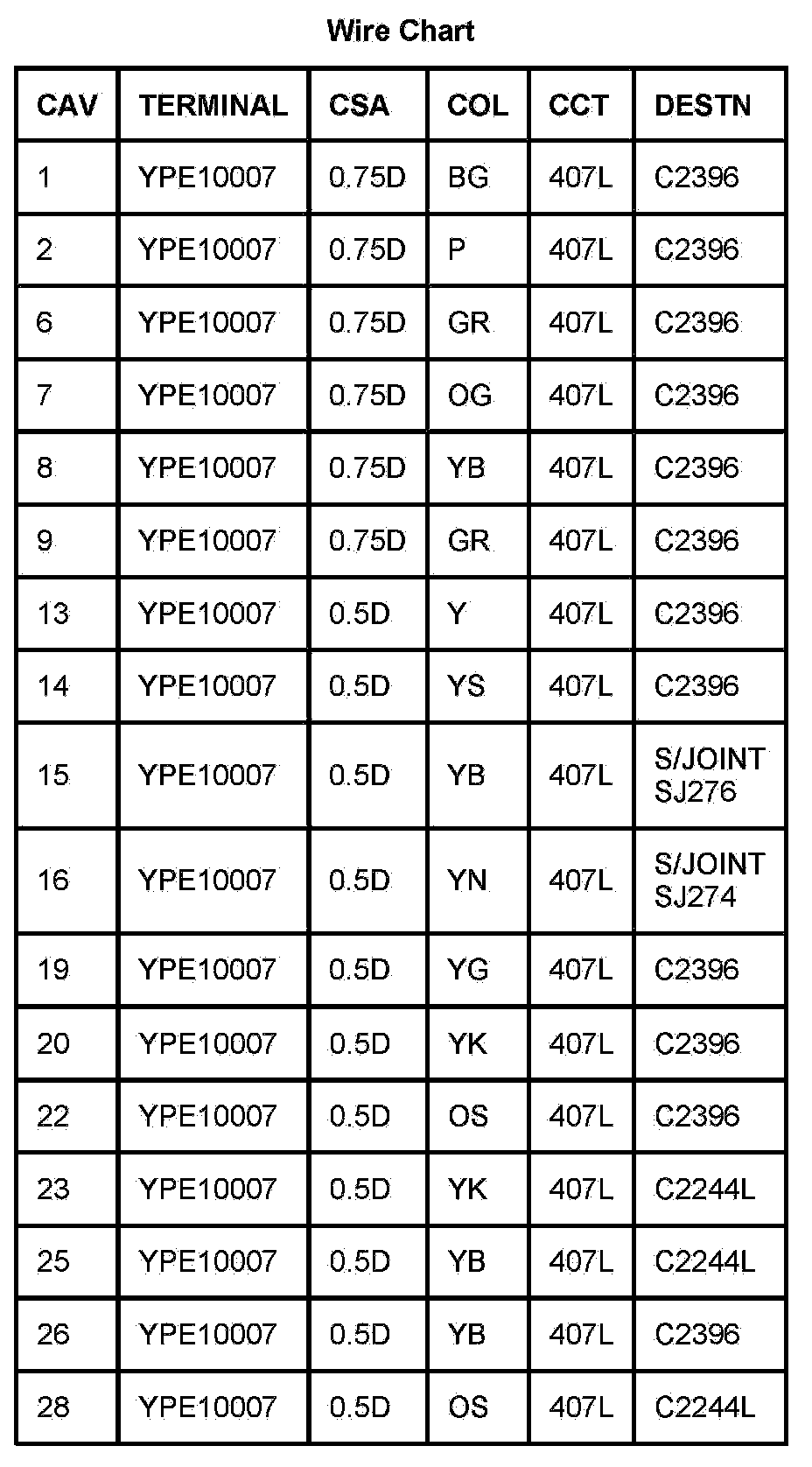

C0647L (Part 1):
C0647L (Part 2):
C0647R (Part 1):
C0647R (Part 2):
C2188L:

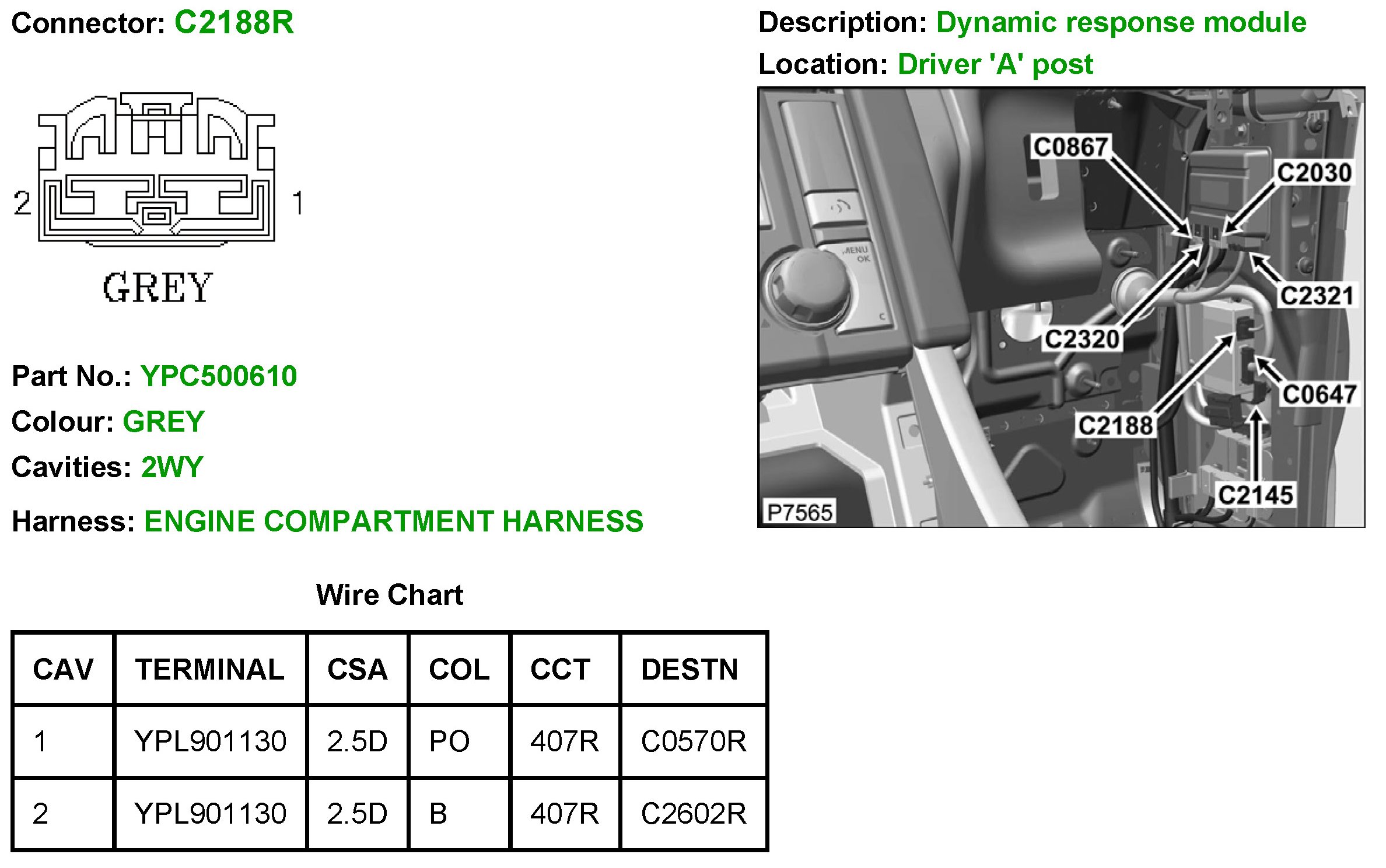

C2188R:
