Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2006
>>
Range Rover Sport (LS) V8-4394cc 4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Integrated Accessory Switch Assembly
Integrated Accessory Switch Assembly

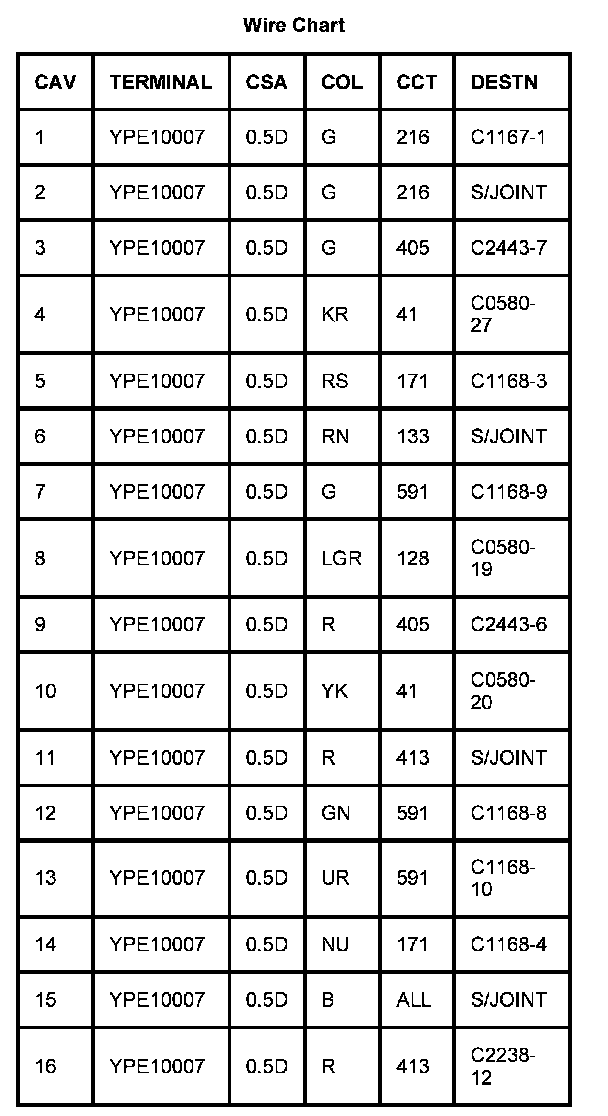

C2387 (Part 1):
C2387 (Part 2):
