Global Positioning System

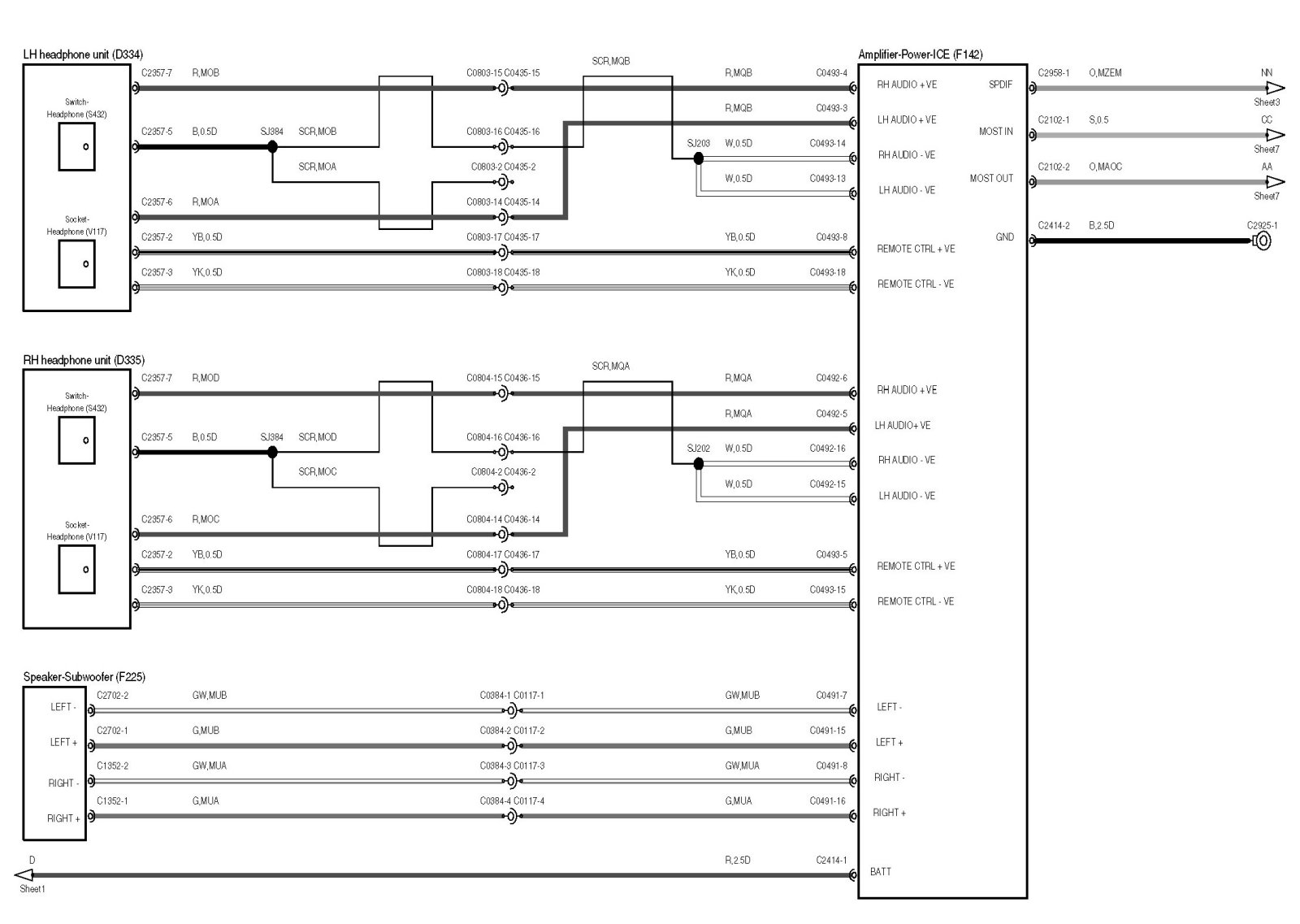

High line - Harman Kardon (Sheet 1):

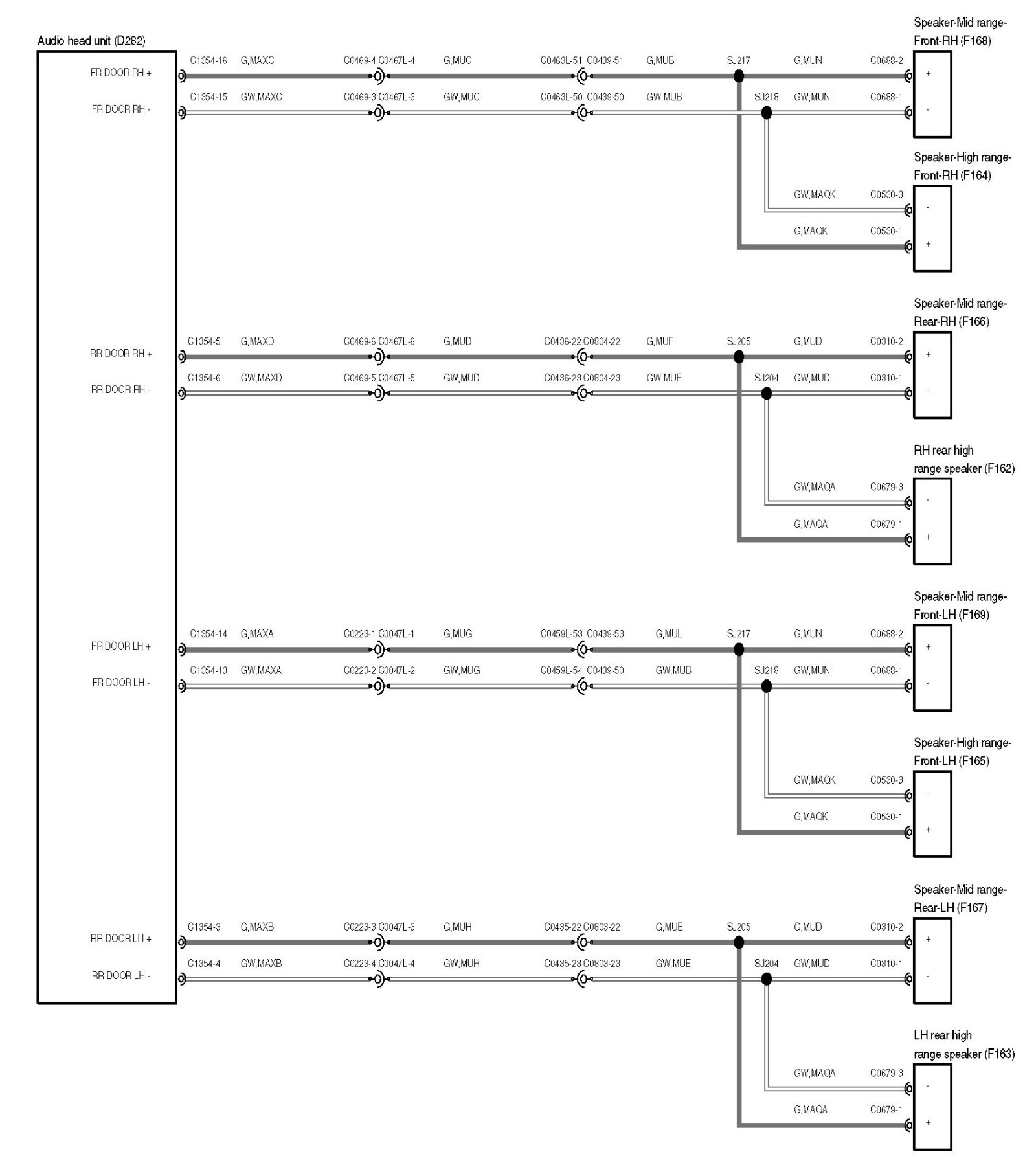

High line - Harman Kardon (Sheet 2):

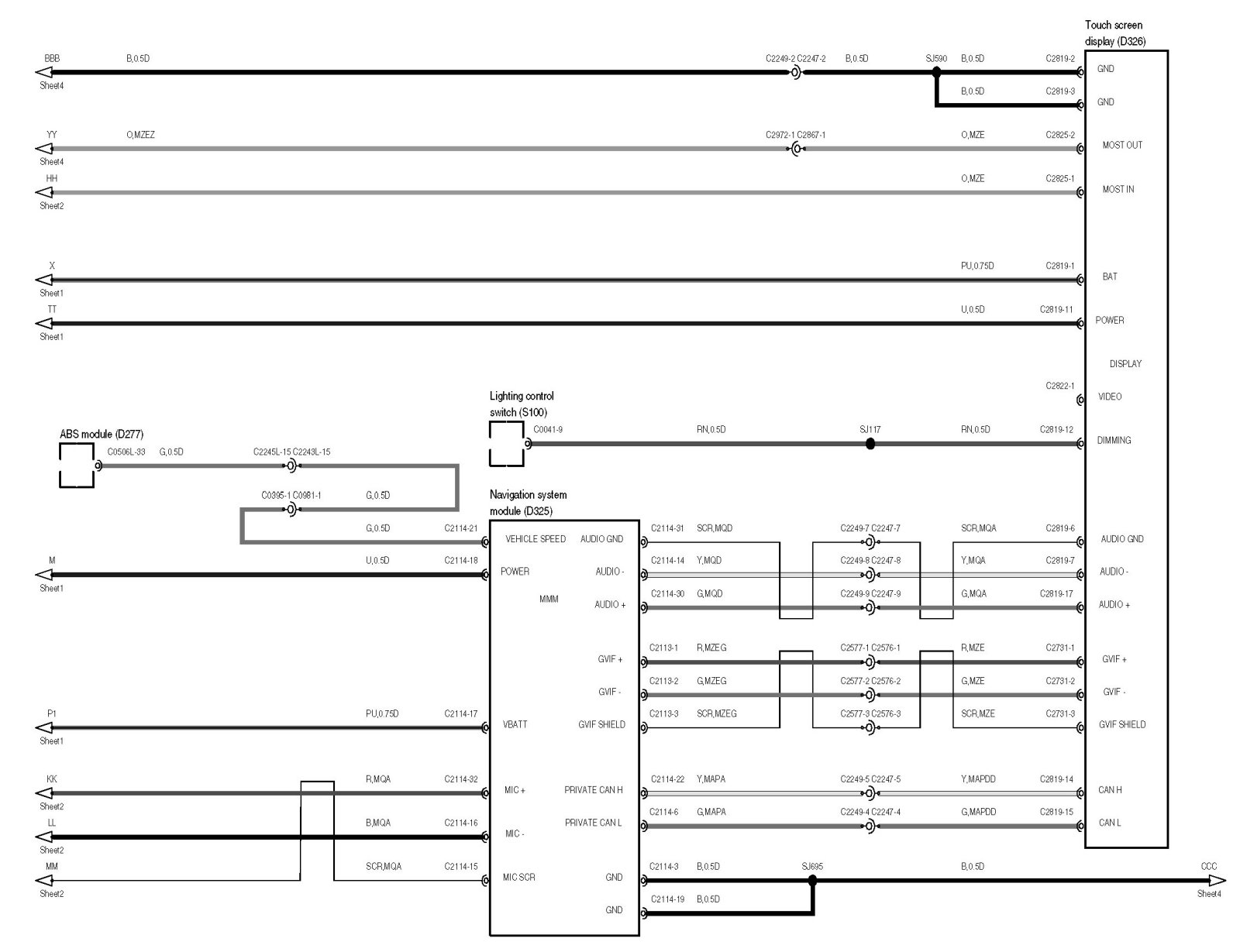

High line - Harman Kardon (Sheet 3):

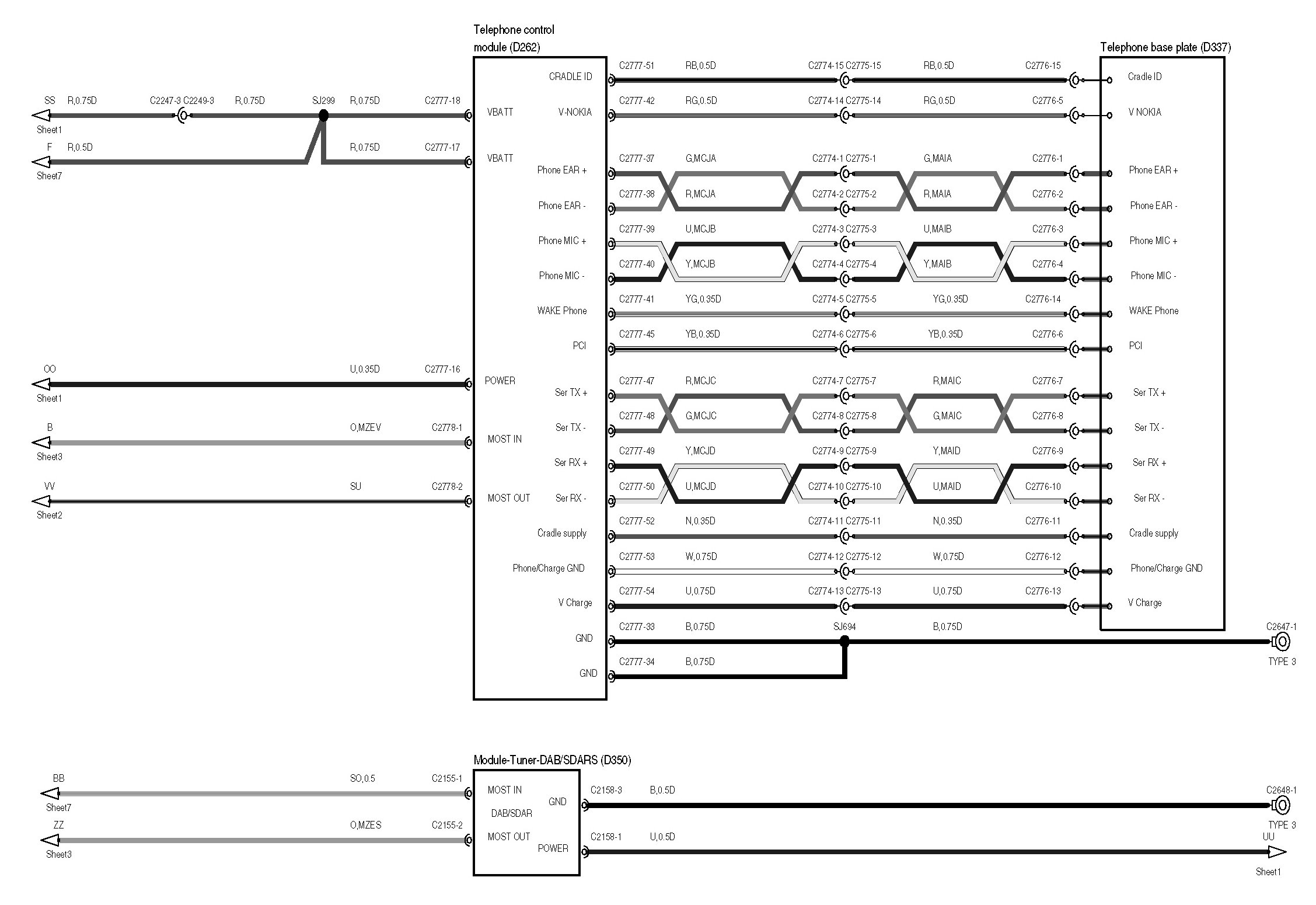

High line - Harman Kardon (Sheet 4):

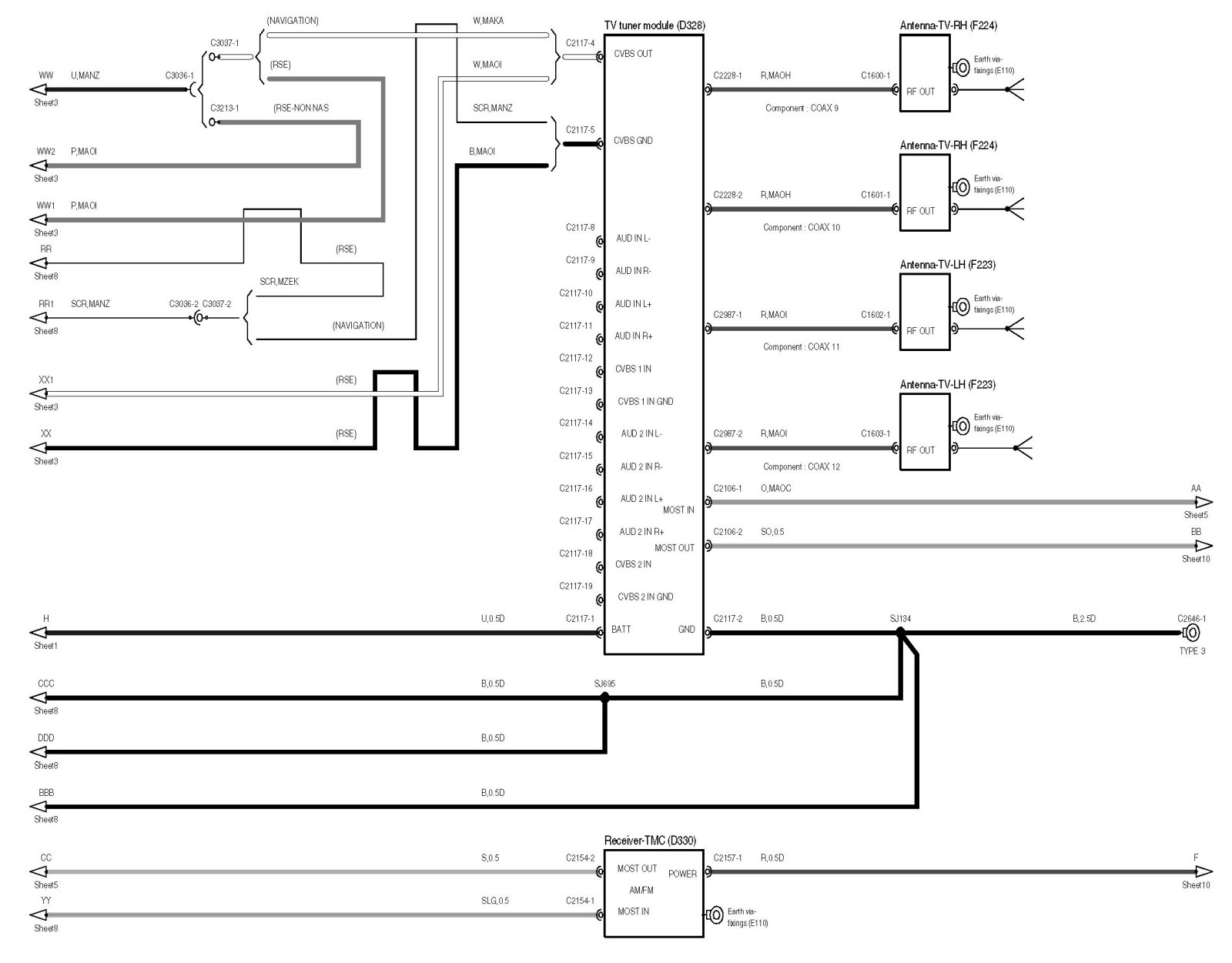

High line - Harman Kardon (Sheet 5):

High line - Harman Kardon (Sheet 6):

High line - Harman Kardon (Sheet 7):

High line - Harman Kardon (Sheet 8):

High line - Harman Kardon (Sheet 9):

High line - Harman Kardon (Sheet 10):

High line - Harman Kardon (Sheet 11):

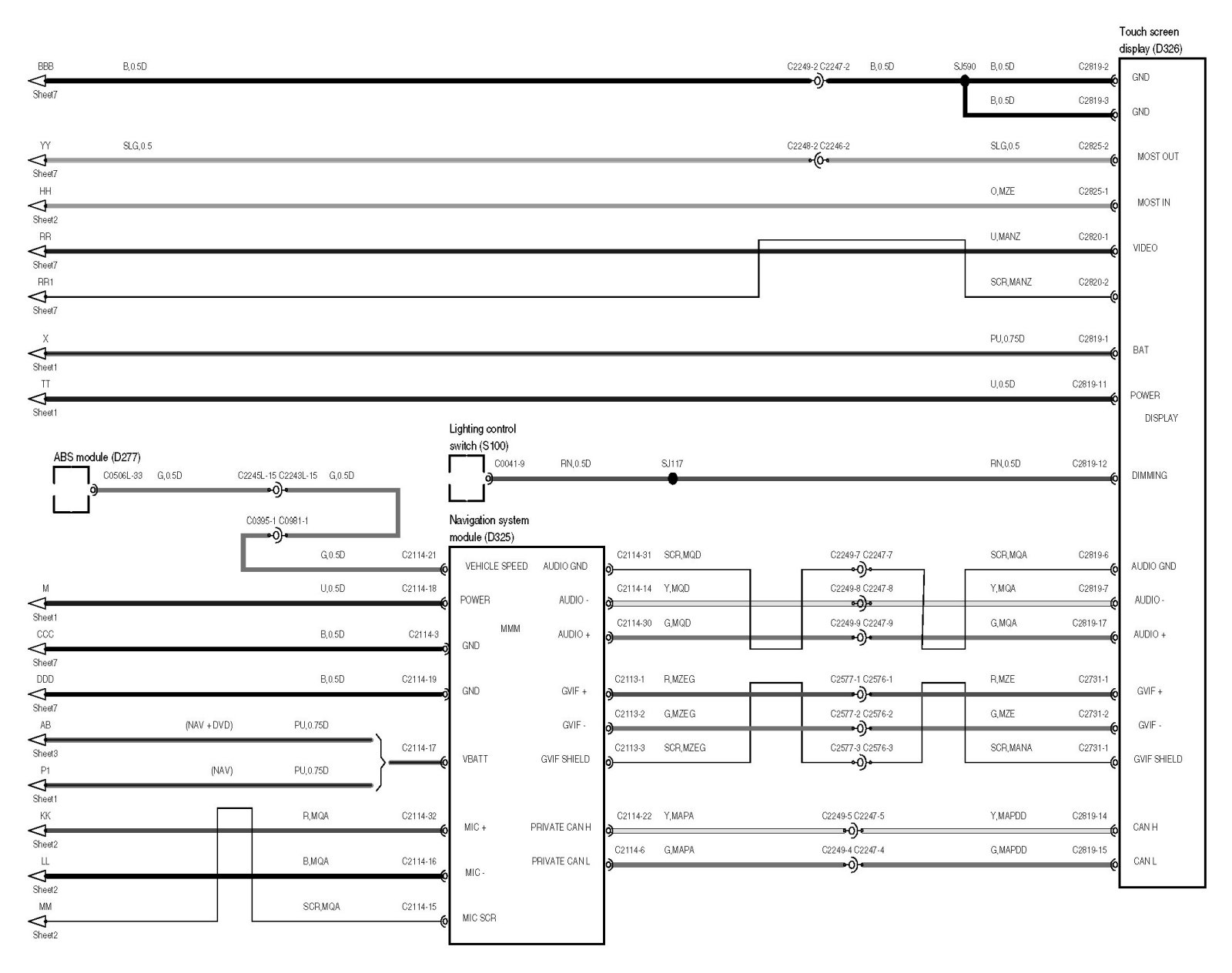

Low Line (Sheet 1):

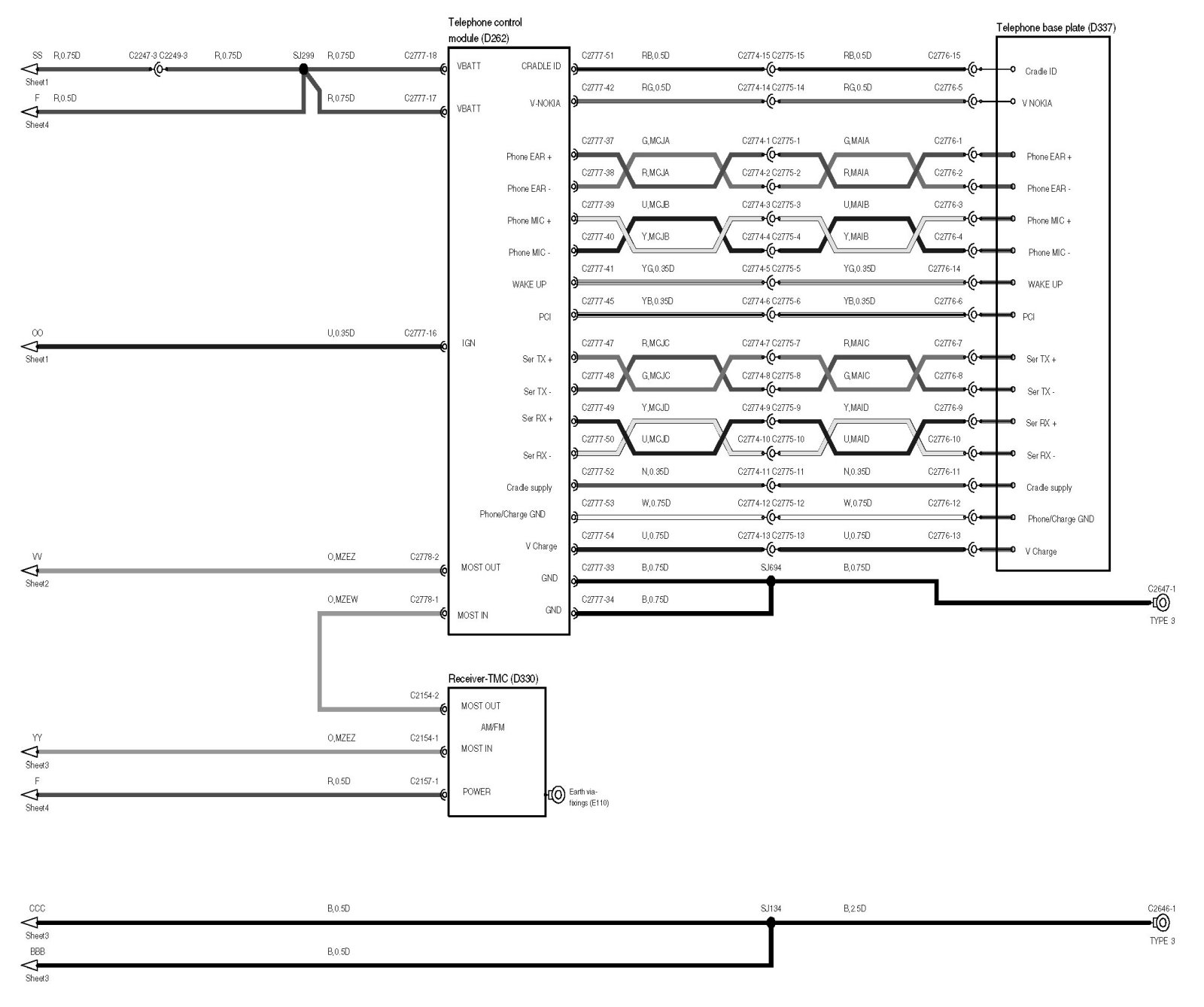

Low Line (Sheet 2):

Low Line (Sheet 3):

Low Line (Sheet 4):

Low Line (Sheet 5):

Low Line (Sheet 6):

Locations: The location views for connectors and components depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Locations/Connectors. Locations

Connector Views: The connector pin out views for connectors depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Diagrams/Connector Views. Connector Views
