Maintenance - Lubricant and Fluid Specifications

No: LM-100-001
Issue: 2
Date: 27 Oct 2005

SECTION: LM100-00

Lubricant and Fluid Specifications

AFFECTED VEHICLE RANGE:

Range Rover (LM)
2006 and up

CONDITION SUMMARY:

UNIQUE LUBRICANTS AND FLUIDS REQUIRED

Some Systems in the 2006 Range Rover use new or in some cases unique fluids and lubricants. The appended parts listing and use table will assist retailers to maintain supply of these lubricants and will provide a quick reference to the proper specifications for each application.

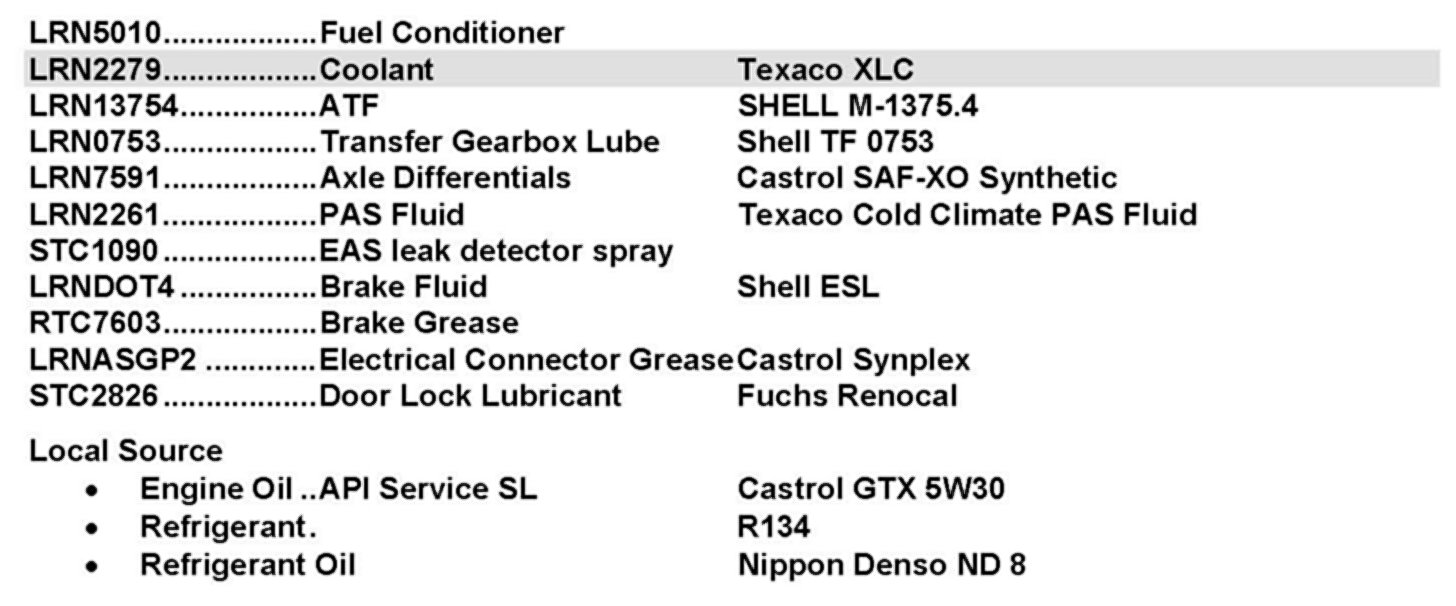

PARTS:

WARRANTY:

Normal warranty policy and procedures apply.

Warranty coverage could be affected by the use of unapproved coolants. oils and lubricants or the incorrect blending of fluids.

Failure to use specified fluids could lead to component failure. If component failures are found to be caused by use of improper fluids, warranty charge-backs could be imposed.

Normal warranty policy and procedures apply.

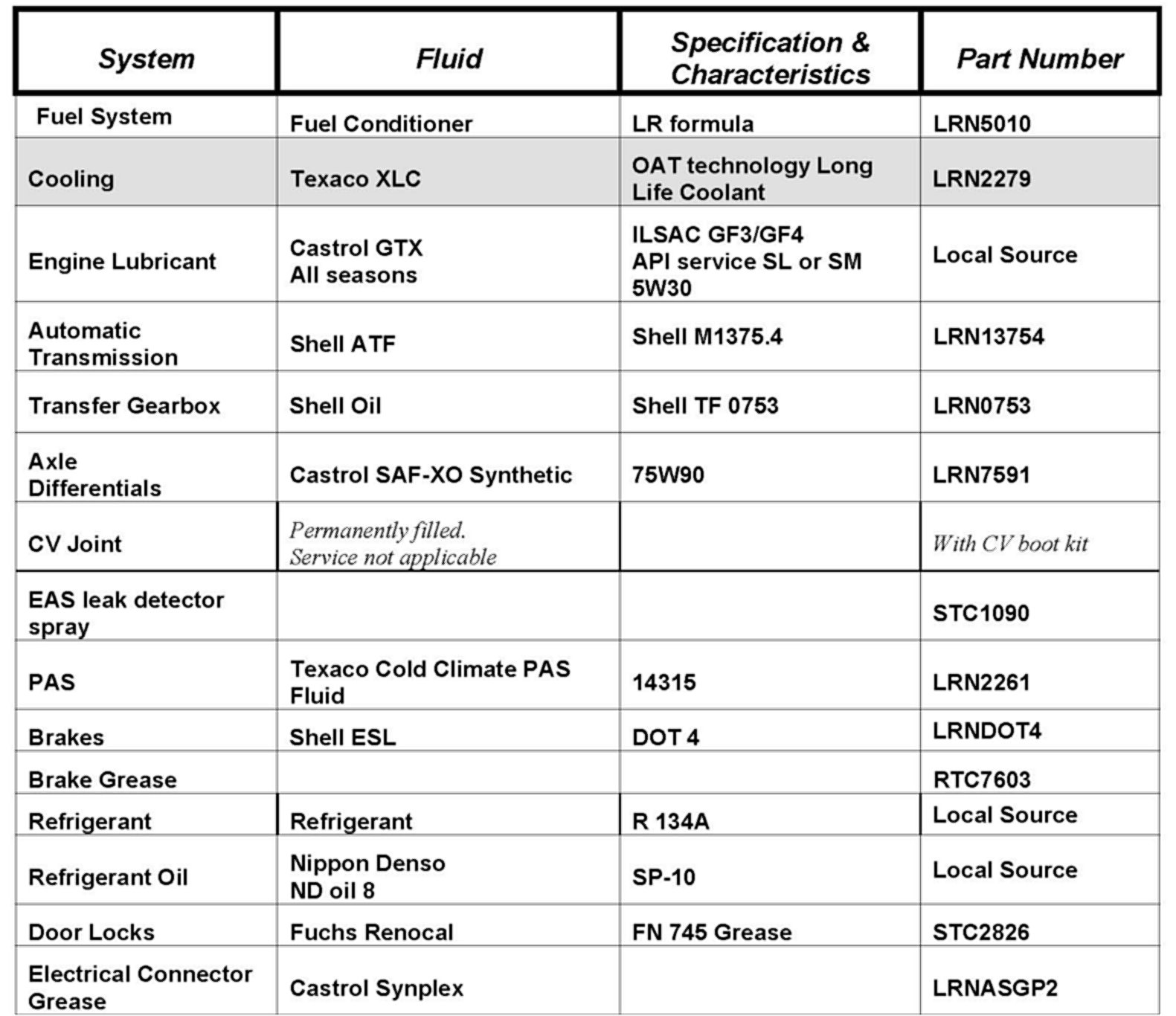

FLUID APPLICATIONS IN 2006 RANGE ROVER VEHICLES:
