Repair Procedure
INSTALL NEW PARKING PAWL GUIDE PLATE (LM - RANGE ROVER VEHICLES)1. Drive vehicle onto ramp.
2. Apply the parking brake.
CAUTION: the transmission selector must be placed in the Neutral (N) position throughout the following repair.
3. Select "N" with the gear selector.
NOTE:
GTR lookup sequence is as follows:
GTR Home > NAS > Service Information/ LM Range Rover/2006 > Workshop Manuals > Range Rover 2006 Workshop Manual - Legacy Systems > Bookmark "86-1 Charging and Starting" > Link "86.15.01 Battery"
4. Refer to GTR Workshop Manual Section 86.15.01 and disconnect the battery ground cable.
5. Raise ramp to safe working height.
NOTE:
GTR lookup sequence is as follows:
GTR Home > NAS > Service Information/ LM Range Rover/2006 > Workshop Manuals > Range Rover 2006 Workshop Manual - New Systems > Bookmark "Powertrain/Automatic Transmission/Transaxle" > TOC "307-01A Automatic Transmission/Transaxle 4.2L" Link "Transmission Fluid Drain and Refill (44.04.22)"
6. Drain the transmission fluid into a clean container for re-use
7. Refer to GTR and remove the transmission fluid pan.
8. Loosen the four Torx screws and remove the parking pawl guide plate. (Figure 1)
9. Install new parking pawl guide plate and start the four Torx screws.
10. Tighten the parking pawl guide plate screws to 10Nm (7.3 lbf-ft).
11. Verify that the park pawl is free to move.
12. Install the fluid pan, gasket and filter.
13. Tighten pan screws to 8Nm (5.9 lbf-ft).
14. Connect the battery ground cable.
15. Fill the transmission with the collected fluid at draining into the clean container. Top up for fluid loss in the process.
16. After completion of the repair, on a suitable slope, check the vehicle is held stationary by the transmission alone when gear position "P" is selected.
INSTALL NEW PARKING PAWL GUIDE PLATE (LS - RANGE ROVER SPORT and LA - LR3)
1. Drive vehicle onto ramp.
2. Apply the parking brake.
CAUTION: the transmission selector must be placed in the Neutral (N) position throughout the following repair.
3. Select "N" with the gear selector.
4. Refer to GTR Workshop Manual Section 414.01 and disconnect the battery ground cable.
5. Raise ramp to safe working height.
NOTE:
GTR lookup sequence is as follows:
GTR Home > NAS > Service Information/ LS Range Rover Sport/2006 > Workshop Manuals > Range Rover Sport 2005 Workshop Manual > Bookmark Body and Paint/Frame and Mounting" > TOC "502-02 Full Frame and Body Mount" Link "Transmission Support Crossmember (76.10.09 or 76.10.92)".
6. Refer to GTR Workshop Manual Section 502-02 and remove the transmission support cross member.
7. Remove the four transmission heat shield bracket fasteners.
NOTE:
GTR lookup sequence is as follows:
GTR Home > NAS > Service Information/ LS Range Rover Sport/2006 > Workshop Manuals > Range Rover Sport 2005 Workshop Manual > Bookmark "Body and Paint/Body and Paint" > TOC "501-02 Front End body Panels" Link "Engine Undershield (76.10.50)".
8. Refer to GTR Workshop Manual Section 501-02 and remove the engine undershield.
9. Drain the transmission fluid into a clean container for re-use.
10. Remove the fluid pan, gasket and filter for access to the parking pawl guide plate.

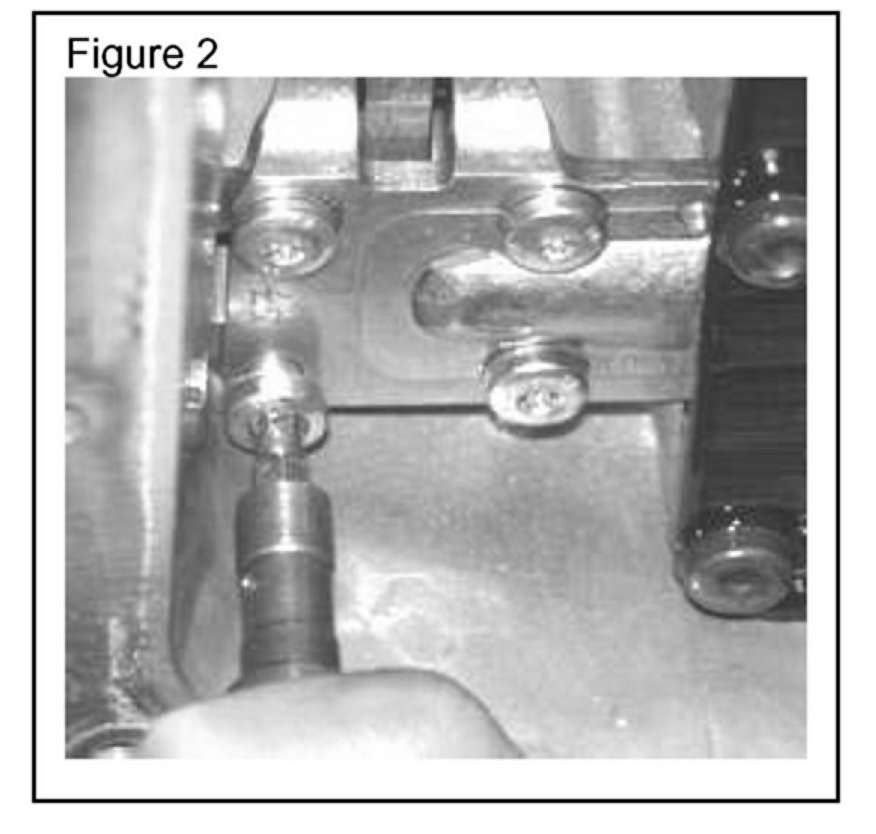

11. Remove the four Torx screws securing the parking pawl guide plate. (Figure 2)
12. Install a new parking pawl guide plate and start the Torx screws.
13. Tighten the screws to 10 Nm (7.3 lbf-ft).
14. Verify that the transmission is in neutral.
15. Verify that the park pawl is free to move.
16. Install the fluid pan, gasket and filter.
17. Tighten the pan screws to 8Nm (5.9 lbf-ft).
18. Refer to GTR Workshop Manual Section 501-02 and perform the following:
^ Install the engine undershield.
^ Tighten the shield fasteners to 62Nm (45.7 lbf-ft).
^ Install the transmission four heat shield bracket fasteners and tighten to 25Nm (18.4 lbf-ft).
19. Refer to GTR Workshop Manual Section 502-02 and install the transmission support cross member.
20. Tighten cross member fasteners to 175Nm (129 lbf-ft).
21. Reconnect the battery ground cable.
22. Fill the transmission with the collected fluid in the clean container during disassembly. Top up for fluid loss in the process.
23. After completion of the repair, on a suitable slope, check the vehicle is held stationary by the transmission alone when gear position "P" is selected.
