Steering - Control Valve Actuator Availability

No.: LTB00158

Issue: 1

Date: 24 July 2008

SECTION: 211

Servotronic Steering Control Valve Actuator Availability





AFFECTED VEHICLE RANGE

CONDITION SUMMARY:

Situation:

A Servotronic Steering Control Valve Actuator is now available as a serviceable part. In the event of one of the following conditions, replacement of the complete steering gear is no longer necessary:

^ Power steering feels heavier than normal through its operating range

^ Power steering feels too light at speed

^ Power steering feels too heavy at rest and low speed

^ Diagnostic Trouble Codes (DTC) C112201, C11231C may be stored

Action:

To install a new Servotronic Steering Control Valve Actuator, refer to the Repair Procedure outlined below.

PARTS:

LR010373 ................Servotronic Steering Valve Qty: 1

TOOLS:

Refer to Workshop Manual (GTR) for any special tools that may be required.

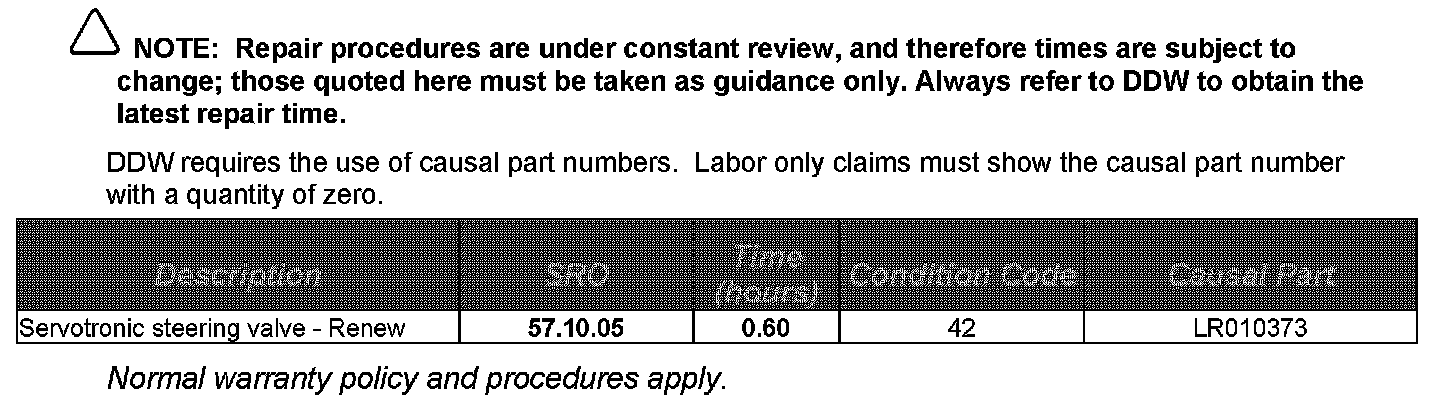

WARRANTY

REPAIR PROCEDURE

REPLACING SERVOTRONIC STEERING CONTROL VALVE ACTUATOR

NOTE:
Global Technical Reference (GTR) lookup sequence is as follows:

GTR Home > NAS > LS - Range Rover Sport > Service Information > Model Year > Workshop Manuals > 2: Chassis > 211-02: Power Steering.

1. Refer to Workshop Manual (GTR) Section 211-02: Power Steering (57.10.05) to remove / install the Servotronic Steering Control Valve Actuator.
