Headlamp Washer Spray Nozzle: Service and Repair

Headlamp Washer Jet

Service Repair No - 84.20.08

Removal
1. Disconnect the battery ground cable.
2. Remove the front fog lamp.

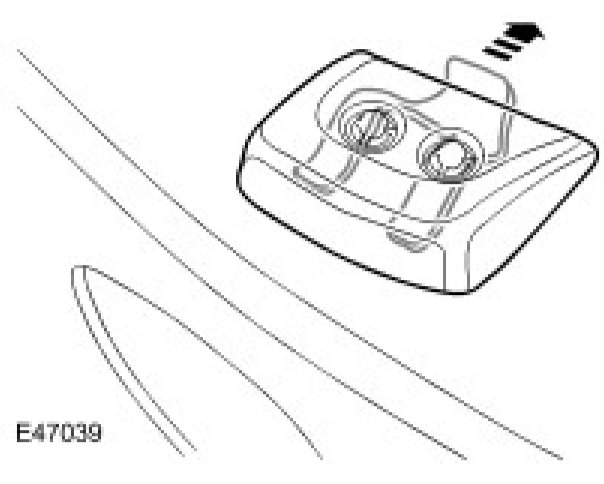

3. Release the washer jet assembly.
^ Release the clip.

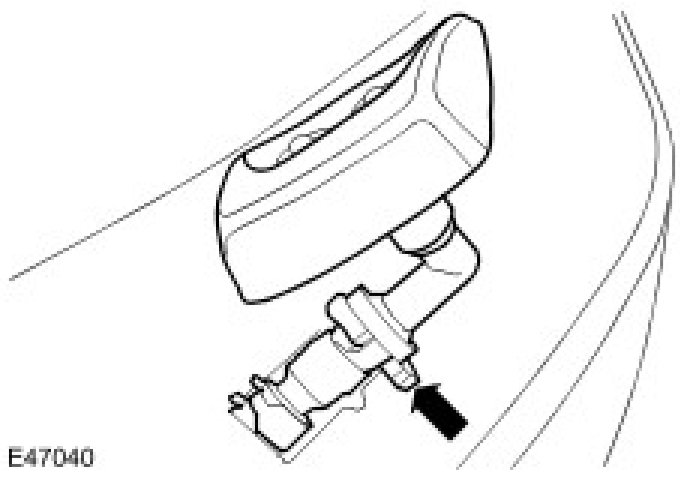

4. Remove the washer jet.
^ Release the hose clip and disconnect the hose.





Installation

1. To install, reverse the removal procedure.
