Home >> Land Rover >> 2007 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Cellular Phone >> Description and Operation >> Telephone System Control Diagram

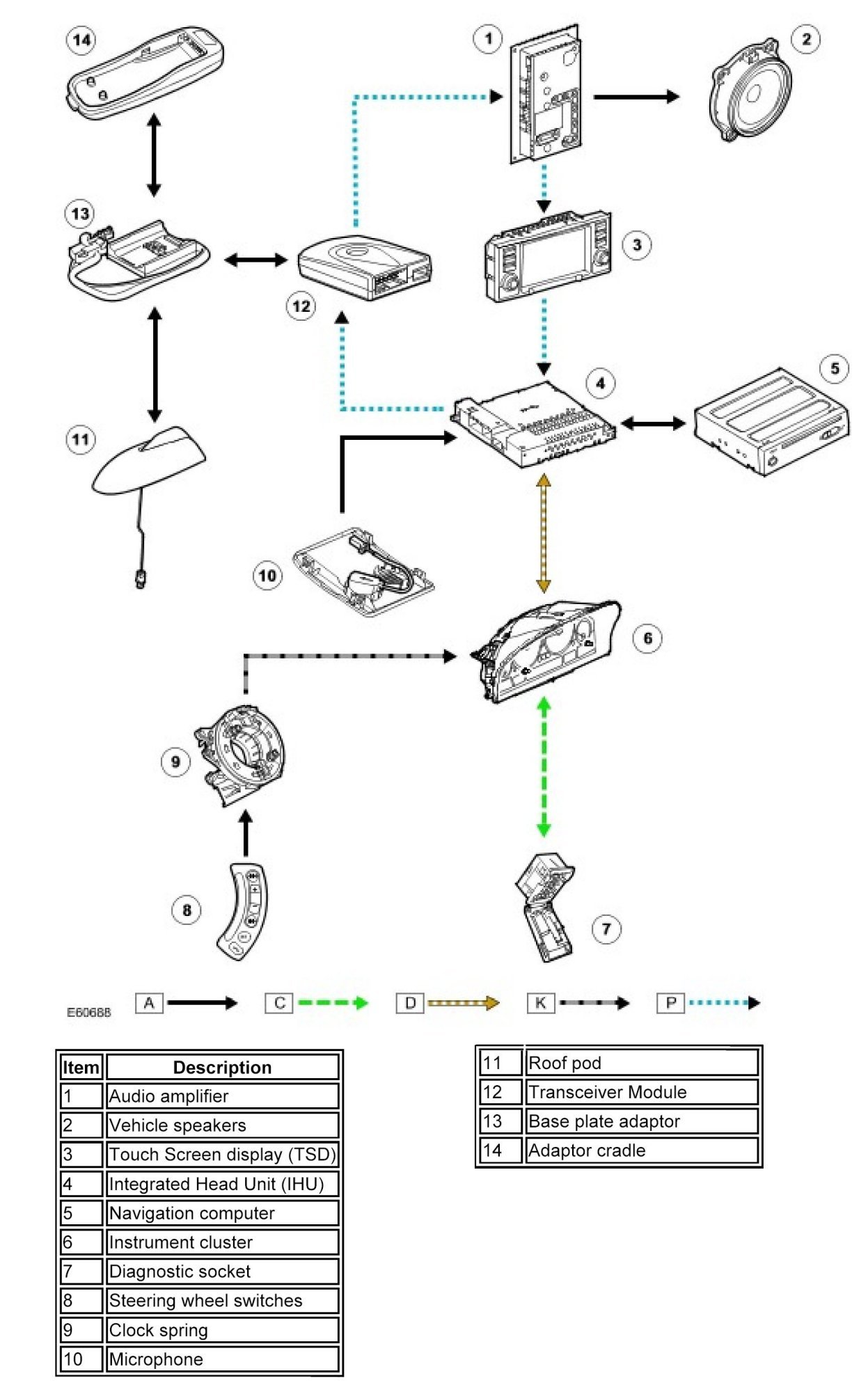

Telephone System Control Diagram
